Polycom VVX 1500 User Manual page 19

Getting Started with Your Phone

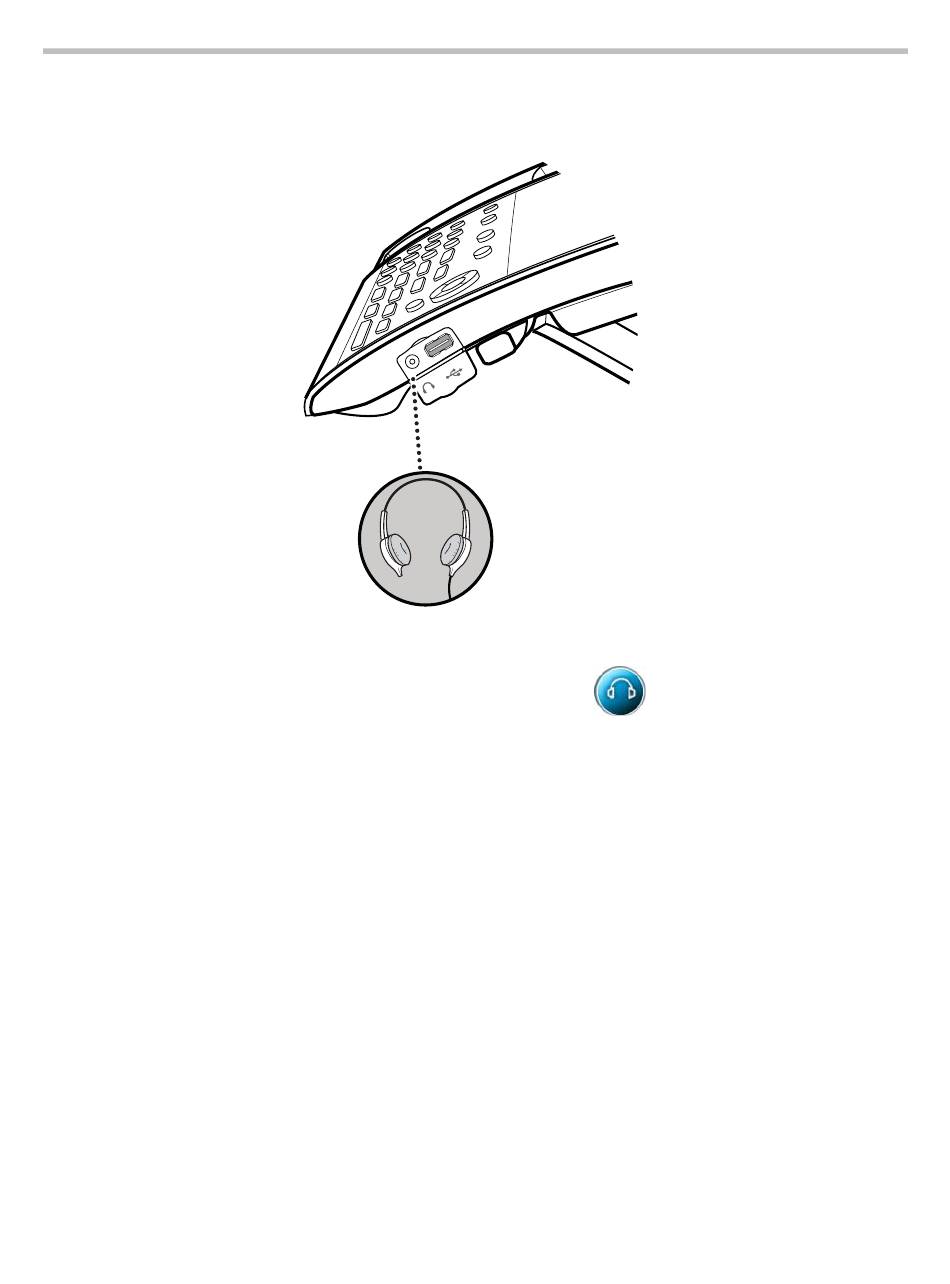

The following figure shows the 3.5mm connector on the side of your phone.
When you attach headphones to your phone, the message "Auxiliary output
active" displays. The headphone icon, , displays on the status bar on
the touch screen. When you remove the headphones, the message "Auxiliary
output inactive" displays.
Connecting an Optional Computer
You can connect a computer to your phone. You may want to connect a
computer, for example, if you only have one LAN port and you want to
connect your computer to the network through the phone.
To connect a computer to the phone, you need the optional Computer Cable
and a ferrite clamp (included in the phone package). Attach the ferrite clamp
to the Computer Cable before you attach the cable to your phone (see
Attaching Ferrite Clamps on page 1-5).
You attach a computer to the PC connector on the back of the phone.
1 - 11
