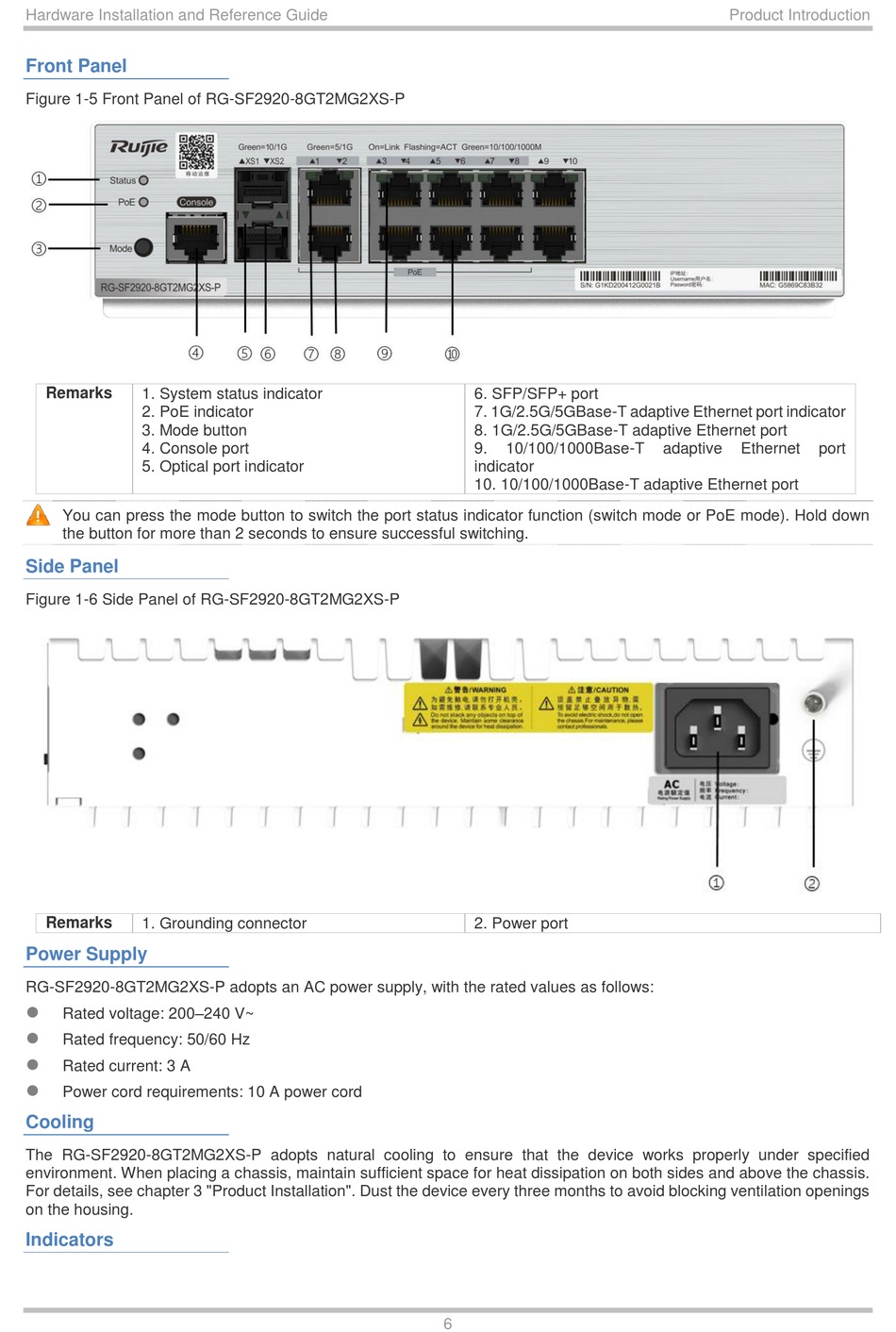

Ruijie RG-SF2920 Series Hardware Installation And Reference Manual page 10

Hardware Installation and Reference Guide
Front Panel
Figure 1-5 Front Panel of RG-SF2920-8GT2MG2XS-P
Remarks
1. System status indicator
2. PoE indicator
3. Mode button
4. Console port
5. Optical port indicator
You can press the mode button to switch the port status indicator function (switch mode or PoE mode). Hold down
the button for more than 2 seconds to ensure successful switching.
Side Panel
Figure 1-6 Side Panel of RG-SF2920-8GT2MG2XS-P
Remarks
1. Grounding connector
Power Supply
RG-SF2920-8GT2MG2XS-P adopts an AC power supply, with the rated values as follows:

Rated voltage: 200–240 V~

Rated frequency: 50/60 Hz

Rated current: 3 A

Power cord requirements: 10 A power cord
Cooling
The RG-SF2920-8GT2MG2XS-P adopts natural cooling to ensure that the device works properly under specified
environment. When placing a chassis, maintain sufficient space for heat dissipation on both sides and above the chassis.
For details, see chapter 3 "Product Installation". Dust the device every three months to avoid blocking ventilation openings
on the housing.
Indicators
6. SFP/SFP+ port
7. 1G/2.5G/5GBase-T adaptive Ethernet port indicator
8. 1G/2.5G/5GBase-T adaptive Ethernet port
9. 10/100/1000Base-T
indicator
10. 10/100/1000Base-T adaptive Ethernet port
2. Power port
6
Product Introduction
adaptive Ethernet port
