QoS services, and ensure the undelayed transmission of key data by applying different traffic classification rules to different services. The RG-S2924GT/8SFP-XS-P provide flexible medium interfaces and can meet the connection requirements of different media in network constructions.
Page 8
Ethernet 1000M: Mini-GBIC-SX Mini-GBIC-LX Mini-GBIC-LH40 Mini-GBIC-ZX50 Mini-GBIC-ZX80 Mini-GBIC-ZX100 1000Base-T: Mini-GBIC-GT Note: the supported module type may change at any time. For the detailed change information, consult the Ruijie Networks. Supported M5000E-02SFP/GT extension M5000E-01XS module type M5000E-02XS SFP port 100Base-X...

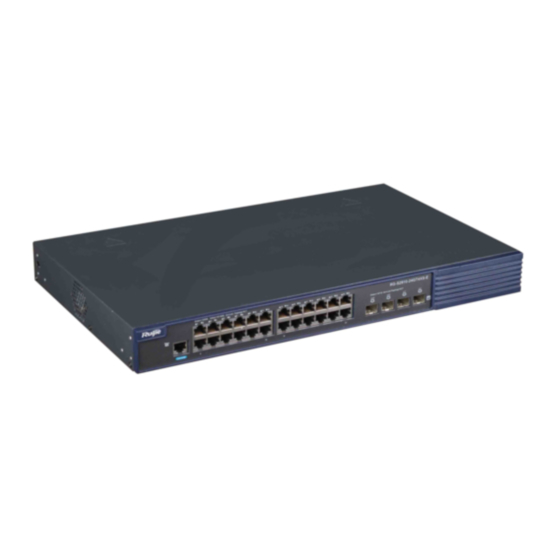

The front panel of the RG-S2924GT/8SFP-XS-P Ethernet switch provides twenty four 10/100/1000Base-T Ethernet ports, eight GE SFP fiber/copper combo ports and one Console port. The backplanel provides two power module slots and two extension module slots. Figure 1-17 shows the appearance of the RG-S2924GT/8SFP-XS-P. Figure 1-1 Appearance of the RG-S2924GT/8SFP-XS-P...
Page 10
5. Grounding pole Power Supply System The RG-S2924GT/8SFP-XS-P supports two power modules. For the detailed power specification, please refer to the related power module chapter. Dual-power input: The switch power can be supplied by 1 power module, or by 2 power modules. When both two modules are available, the switch power is supplied by the redundant power input.
Figure 1-20 Flow scheme of heat dissipation 1.4 LED Indicators Table 1-4 Indicators for the RG-S2924GT/4SFP-XS-P Indicator Panel Status Meaning Identification Solid green The port indicator indicates the switching state. POE indicator Solid yellow The port indicator indicates the POE power supply state.
Page 12
Indicator Panel Status Meaning Identification POE state indicator The POE is not powered on. Solid green The POE has been powered on. 1~24 Solid yellow The POE is overloaded, and is not powered Solid red The port POE does not supply power. The port is not connected to a link.
Chapter 2 Preparation before Installation 2.1 Safety Suggestions To avoid personal injury and equipment damage, please carefully read the safety suggestions before you install the RG-S2924GT/8SFP-XS-P. The following safety suggestions do not cover all possible dangers. 2.1.1 Safety Precautions for Installing the System ...
Do not stare into any optical port under any circumstances, as this may cause permanent damage to your eyes. 2.2 Installation Site Requirements The RG-S2924GT/8SFP-XS-P must be used indoors. To ensure the normal working and a prolonged durable life of the equipment, the installation site must meet the following requirements.
Temperature Relative Humidity 0ºC-50ºC 10%-90% The ambient temperature and humidity are measured at the point that is 1.5 m above the floor and 0.4 m before the equipment when there is no protective plate in front or back of the equipment rack. 2.2.3 Cleanness Requirements Dust poses a severe threat to the running of the equipment.
The grounding required for EMC design includes shielding ground, filter ground, noise and interference suppression, and level reference. All the above constitute the comprehensive grounding requirements.The grounding resistance should be less than 1 ohm. The RG-S2924GT/8SFP-XS-P backplane is reserved with one grounding pole, as shown in 0 .
Rx end of the peer equipment, and the Rx end of this equipment to the Tx end of the peer equipment. 2.7 Precaution for Power Module Installation The power module installation is needed for the RG-S2924GT/8SFP-XS-P switches, as shown in Figure 2-2: Figure 2-2 Schematic diagram of the RG-S2924GT/8SFP-XS-P power module installation...
Page 18
The power module is hot-swappable. It’s recommended to disable all power switches when plugging in/out the power module and enable the switch with the power module inserted and installed.
Table 2-4 List of installation tools Common tools Cross screwdriver, straight screwdriver, related electric cables and optical cables, bolts, diagonal pliers, straps Special tools Anti-static tools Meters Multimeter The RG-S2924GT/8SFP-XS-P are not provided with a tool kit. Please prepare tools on your own.
Chapter 3 Product Installation Please ensure that you have carefully read Chapter 2. Make sure that the requirements set forth in Chapter 2 have been met. 3.1 Installation Procedure 3.2 Confirmations before Installation Before installation, please confirm the following points: ...
During the installation, place the front panel of the switch to the rack. For safety purposes, screw up the randomly distributed screws as shown in the following figure. 3.3.3 Mounting the Switch to the Wall The supplemented hangers of the RG-S2924GT/8SFP-XS-P support the installation on walls, as shown in the following figure.
3.3.4 Mounting the Switch to the Desktop In several cases, users do not have the 19-inch standard cabinets. In this case, the most frequent method is to mount the switch to a clean workstation. Step 1:Attach the four adhesive rubber pads provided in the carton onto the indentations on the four corners at the bottom of the switch.
Chapter 4 System Debugging 4.1 Establishing the Configuration Environment 4.1.1 Establishing the Configuration Environment Connect the PC to the console port of the switch through the console cable, as shown in 0. Figure 4-1 Schematic diagram of the configuration environment 4.1.2 Connecting the Console Cable Step 1: Connect one end of the DB-9 jack of the console cable to the serial port of the PC.
The console cable is correctly connected; the terminal (can be a PC) used for configuration is already started; the parameters are already configured. 4.2.2 Checking after Power-on (Recommended) After power-on, you are recommended to perform the following checks to ensure the normal operation of follow-up configurations.
5.2 Troubleshooting Common Faults Symptom Possible Causes Solution Forgetting the management Please contact Ruijie Networks Customer interface login password Service Department for technical support. The status indicator is not on The power supply module does not Check whether the power socket at the after the switch is started.
Page 26
The RPS power indicator is not The RPS power module in use is not Replace the RPS power supply module with of the specified type. one specified by Ruijie Networks. The RPS power supply module is Replace the RPS power supply. faulty.
Page 27
Appendix A: Connectors and Connection Media 1. 1000BASE-T/100BASE-TX/10BASE-T Ports The 1000BASE-T/100BASE-TX/10BASE-T is a port that supports adaptation of three rates, and automatic MDI/MDIX Crossover at these three rates. 1000The 1000BASE-T complies with IEEE 802.3ab, and uses the cable of 100-ohm Category-5 or Supper Category-5 UTP or STP, which can be up to 100 m. 1000The 1000BASE-T port uses four pairs of wires for transmission, all of which must be connected.
Page 28
2. Optical Fiber Connection For the optical fiber ports, select single-mode or multiple-mode optical fibers for connection according to the fiber module connected. The connection schematic diagram is shown in Figure A-4: Figure A-4 Schematic diagram for optical fiber connection Switch Switch...
Page 29
Appendix B Mini-GBIC Modules We provide appropriate 1000M SFP modules (Mini-GBIC) modules according to the types of interfaces of the switch modules. You can select the SFP module to suit your specific needs. The following models and technical specifications of some 1000M SFP modules are listed for your reference. Models and Technical Specifications of the Mini-GBIC (SFP) Module Table B-1 Models and technical specifications of the SFP module...
