Demonstration Data

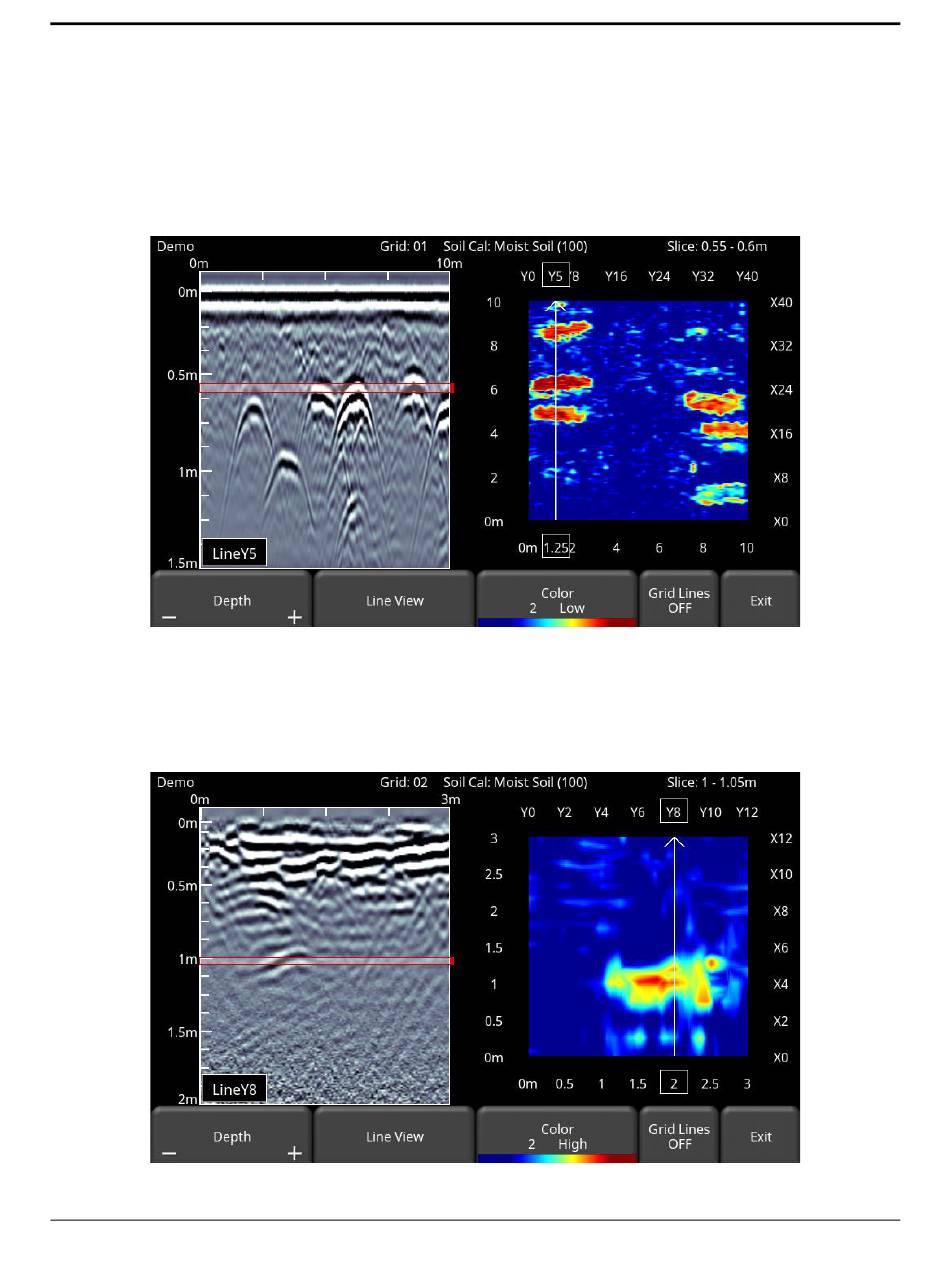

Grid 1:
This Grid Scan shows a 10 x 10-meter grid survey, with collected lines spaced 0.25m apart.
The data was collected in one direction only (Y-Lines), as these were graves in a cemetery and
the operator knew the direction of the burials based on the grave markers. Depth slicing
downward reveals the general shape and varying depth of the coffins, which start to appear at
0.45m deep.
Grid 2:
A 3 x 3-meter grid survey, collected in both directions, with lines spaced 0.25m apart. The grid
was collected over a freshly buried pig carcass at a forensic test site. Depth slicing downward
reveals the strong response from the body at a depth of about 1.0m.
87
