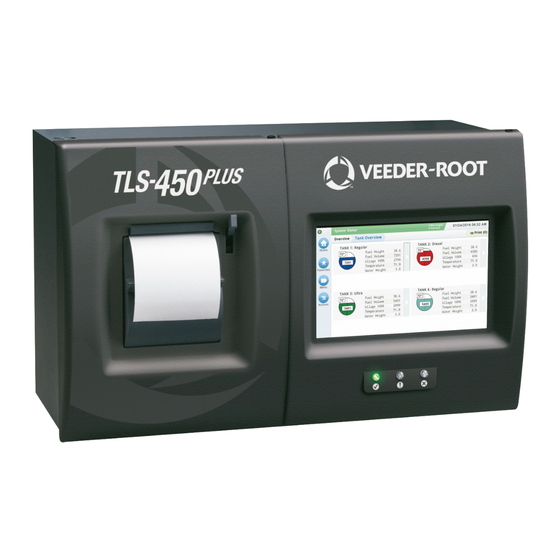

- Page 1 Manual No: 577013-797 Revision: P • Vapor Pressure Sensor TLS-450PLUS & TLS-3XX Consoles Installation Guide...
- Page 2 Customer Service will work with production facility to have the replacement product shipped as soon as possible. If “lost” equipment is delivered at a later date and is not needed, Veeder-Root will allow a Return to Stock without a restocking fee.
-
Page 3: Table Of Contents
For Sites With TLS-3XX Consoles ................2 For Sites With TLS-450PLUS Consoles..............2 For All Sites With TLS-RF Wireless Devices............2 Safety Precautions ......................3 Before You Begin ......................4 Veeder-Root Parts ......................4 Tools Required .........................6 Under Dispenser Installation Steps ..................6 Vapor Vent Stack Installation - Wired VPS ..............15 Figures Figure 1. -
Page 4: Contractor Certification Requirements
Installation of the VPS on the vapor vent stack is only allowed at facilities equipped with a “Veeder-Root Vapor Polisher” or “Franklin Fueling System Healy Clean Air Separator. Contractor Certification Requirements Veeder-Root requires the following minimum training certifications for contractors who will install and set up the equipment discussed in this manual: TLS-450PLUS... -
Page 5: Related Documents
For Sites With TLS-450PLUS Consoles • 577014-073 TLS-450PLUS Site Prep and Installation Manual • 577014-484 Veeder-Root ISD For TLS-450PLUS Consoles Install Manual - V-R Polisher/Franklin CAS • 577014-461 Veeder-Root ISD For TLS-450PLUS Consoles Install Manual - Healy Assist EVR • 577014-033... -
Page 6: Safety Precautions
VPS Installation Safety Precautions Safety Precautions The following safety symbols may be used throughout this manual to alert you to important safety hazards and precautions. EXPLOSIVE FLAMMABLE Fuels and their vapors are extremely explosive if Fuels and their vapors are extremely flammable. ignited. -
Page 7: Before You Begin
• Pipe threads shall be in accordance with the Standard for Pipe Threads, General Purpose (Inch) ANSI/ASME B1.20.1-1983. Veeder-Root Parts Veeder-Root parts and kits required to install the VPS are listed in Table 1 and Table 2. Table 1. Under Dispenser - VPS Installation Kit (P/N 330020-433 [included in kit 330020-515]) Item Qty. -
Page 8: Table 2. Vapor Vent Stack - Vps Installation Kit (P/N 330020-630)
VPS Installation Veeder-Root Parts Table 1. Under Dispenser - VPS Installation Kit (P/N 330020-433 [included in kit 330020-515]) Item Qty. Description Ball Valve, 3-way, 1/4” 576008-649 Copper tube, soft, 1/4” OD, 36” length 332151-001 Table 2. Vapor Vent Stack - VPS Installation Kit (P/N 330020-630) Item Qty. -
Page 9: Tools Required
VPS Installation Tools Required An desiccant tube is recommended for the VPS in wired/wireless vent stack installations (see kit in Table 3). Table 3. Kit - VPS Drying Tube (P/N 330020-717) Item Qty. Description Drying tube - non-indicating desiccant 514100-424 36”... - Page 10 VPS Installation Under Dispenser Installation Steps 10. Screw the 59CA-4 plug, item 4, from the kit onto the left port’s male connector. Make sure the valve’s handle is set to connect the VPS to the vapor return line and not to the capped (ambient) port. All plumbing’s pitch to drain should be 1/4”...
-
Page 11: Figure 1. Example Vps Installation In Shear Valve Port
VPS Installation Under Dispenser Installation Steps Base of dispenser cabinet Pressure Sensor Wrap rubber shim from kit around sensor before Cable inserting in clamp Pressure Vapor return line sensing from dispenser port Cord grip Junction box (customer supplied) - OR - connect this Pitch to drain 1/4"... -
Page 12: Figure 2. Example Vps Installation In Vapor Return Line
VPS Installation Under Dispenser Installation Steps Base of dispenser cabinet Pressure Sensor Wrap rubber shim from kit around sensor before Cable inserting in clamp Pressure Vapor return line sensing from dispenser port Cord grip Junction box (customer supplied) - OR - connect this 1/4 "... -
Page 13: Figure 3. Example Vps Installation In Shear Valve Port - Preferred Isd Installation (With Air Flow Meter Above Shear Valve)
VPS Installation Under Dispenser Installation Steps Base of dispenser cabinet Pressure Sensor Wrap rubber shim from kit around sensor before Cable inserting in clamp Pressure Vapor return line sensing from dispenser port Cord grip ISD Flow Meter Junction box Cable (customer supplied) - OR -... -
Page 14: Figure 4. Example Vps Install In Horizontal Access Fitting Or
VPS Installation Under Dispenser Installation Steps Dispenser hydraulics cabinet Junction box (customer supplied) Cord grip Pressure - OR - Sensor connect these Wrap rubber shim from Cable kit around sensor before 2 cables to TLS RF inserting in clamp transmitters (W2) Pressure sensing Seal off... -
Page 15: Below Shear Valve)
VPS Installation Under Dispenser Installation Steps Junction box Base of Dispenser Cabinet (customer supplied) Cord grip Pressure - OR - Sensor connect these Wrap rubber shim from Cable kit around sensor before 2 cables to TLS RF inserting in clamp transmitters (W2) Pressure sensing... -
Page 16: Figure 6. Field Wiring Connections For Direct- Wired Vps Sensor Only
VPS Installation Under Dispenser Installation Steps Black From Seal-off Pressure Console Sensor White 1/2'' rigid conduit Epoxy sealed connections in a 797-8.eps weatherproof junction box Figure 6. Field wiring Connections for Direct- Wired VPS Sensor Only - Observe Polarity 797-6.eps From sensor To console Make sure that... -
Page 17: Figure 8. Direct-Wired Vps Connects To Available Tls-450Plus
VPS Installation Under Dispenser Installation Steps Figure 8. Direct-Wired VPS Connects to Available TLS-450PLUS USM Module Position Figure 9. Direct-Wired VPS Connects to Available TLS-3XX Smart Sensor Interface Module Position For wireless configurations, see TLS RF System Control Drawing P/N 331940-012. -
Page 18: Vapor Vent Stack Installation - Wired Vps
Installation of the VPS on the vapor vent stack is only allowed at facilities equipped with a Veeder-Root Vapor Polisher or Franklin Fueling System Healy Clean Air Separator. Before installing this device, perform all required safety procedures to gain access inside the vapor vent stack. - Page 19 VPS Installation Vapor Vent Stack Installation - Wired VPS 18. Install one 68CA-4-4 male connector (item 5 in Table 2) onto the top of the new pipe (see View A-A, Figure 10). 19. Measure, fabricate, and install ¼" OD copper tubing (item 10 in Table 2) between the bulkhead union and the male connector.
-
Page 20: Figure 10. Locating Direct-Wired Vps Sensor Enclosure On Vapor Vent Stack
VPS Installation Vapor Vent Stack Installation - Wired VPS Figure 10. Locating Direct-Wired VPS Sensor Enclosure on Vapor Vent Stack 1717... -
Page 21: Figure 11. Direct-Wired Vps Sensor Installed In Vapor Vent Stack Enclosure
VPS Installation Vapor Vent Stack Installation - Wired VPS Figure 11. Direct-Wired VPS Sensor Installed in Vapor Vent Stack Enclosure...
