Revision: C
•
Manual No: 577014-048

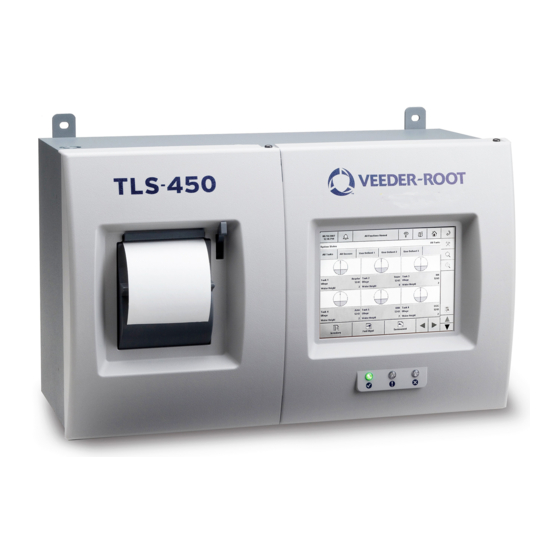

TLS-450 To TLS-450PLUS Console
Upgrade Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TLS-450 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Veeder-Root TLS-450

Summary of Contents for Veeder-Root TLS-450

  • Page 1 Revision: C • Manual No: 577014-048 TLS-450 To TLS-450PLUS Console Upgrade Instructions...
  • Page 2 If “lost” equipment is delivered at a later date and is not needed, Veeder-Root will allow a Return to Stock without a restocking fee. Veeder-Root will NOT be responsible for any compensation when a customer chooses their own carrier.

  • Page 3: Table Of Contents

    Reference Manuals ....................2 Perform A Database Backup Precautions Against Static Electricity ................3 Before Turning Off Power ....................3 Preparing The TLS-450 Console For Upgrade Removing The Display Door .....................6 Removing The CPU Board .....................10 Comm Module Upgrades ....................12 Installing New TLS-450PLUS CPU Board ..............14 Installing New TLS-450PLUS Display Door ..............16...

  • Page 4: Contractor Certification Requirements

    Introduction This manual contains procedures for a TLS-450 to TLS-450PLUS console upgrade. The instructions herein assume all site monitoring devices have been previously installed and site wiring is complete. Contractor Certification Requirements Veeder-Root requires the following minimum training certifications for contractors who will install and setup the...

  • Page 5: Safety Warnings

    Introduction Safety Warnings Safety Warnings WARNING This console contains high voltages which can be lethal. It is also connected to low power devices that must be kept intrinsically safe. FAILURE TO COMPLY WITH THE FOLLOWING WARNINGS AND SAFETY PRECAUTIONS COULD CAUSE DAMAGE TO PROPERTY, ENVIRONMENT, RESULTING IN SERIOUS INJURY OR DEATH.

  • Page 6: Perform A Database Backup

    Perform A Database Backup Precautions Against Static Electricity Before removing electronic components from their anti-static bags read the following static electricity precautions. Before handling any components, discharge your body's static electric charge by touching a grounded surface. Do not remove parts from their anti-static bags until you are ready to install them. Do not lay parts on the anti-static bags! Only the insides are anti-static.

  • Page 7: Figure 2. Accessing Diagnostic Main Screen From The Home Screen

    Perform A Database Backup Before Turning Off Power Touch the Diagnostics button on the Home Screen (see item 2 in Figure 2). 09-21-2007 11-31-30 ALL TANKS SYSTEM STATUS ALL TANKS ALL SENSORS USER DEFINED 1 USER DEFINED 2 USER DEFINED 3 Inventory Delivery Environment...

  • Page 8: Figure 4. Initiating A System Backup

    1. Backup button 5. After the ‘Backup Completed Successfully’ message displays, you can safely remove the V-R Backup Thumbdrive. 6. Print out or write down TLS-450 Ethernet settings. 7. Print out or write down all remaining TLS-450 communication port settings.

  • Page 9: Preparing The Tls-450 Console For Upgrade

    1. Turn off, tag and lockout the breaker that supplies power to the console. 2. Open both doors to the left (see Figure 5). 954-1.eps Figure 5. Opening The TLS-450 Console Doors LEGEND FOR NUMBERED BOXES IN Figure 5 1. Left (Printer) door 3.

  • Page 10: Figure 6. Removing Optional Printer Cable

    Preparing The TLS-450 Console For Upgrade Removing The Display Door 3. If a printer is installed, unplug the printer USB cable from the CPU board connector (see Figure 6). Figure 6. Removing Optional Printer Cable 4. Unplug the Display panel’s Touchscreen control cable (3) Data cable (4), and LED backlight cable (5)

  • Page 11: Figure 7. Removing The Three Display Panel Cables

    Preparing The TLS-450 Console For Upgrade Removing The Display Door Figure 7. Removing The Three Display Panel Cables LEGEND FOR NUMBERED BOXES IN Figure 7 1. Top Display door hinge shoulder screw 4. Display data cable 2. Grounding wire 5. LED/Display cable 3.

  • Page 12: Figure 8. Disconnect The Ground Wire From The Display Door

    Preparing The TLS-450 Console For Upgrade Removing The Display Door 5. Disconnect the ground wire from the Display door at the grounding clamp. Figure 8. Disconnect The Ground Wire From The Display Door 6. Remove the top and bottom Display door hinge shoulder screws and remove the door (items 1 and 6 in...

  • Page 13: Removing The Cpu Board

    Preparing The TLS-450 Console For Upgrade Removing The CPU Board Removing The CPU Board 1. Locate the three retention snap pins along the front of the CPU board (see Figure 8). WARNING: TO MAINTAIN WARNING: TO MAINTAIN WARNING: TO MAINTAIN...

  • Page 14: Figure 9. Locating Tls-450 Cpu Board Reusable Ibutton

    CF card against the door. Place the TLS-450 CPU board on a clean work surface. Locate the iButton on the TLS-450 CPU board. This component will be transferred to the new TLS-450PLUS CPU board.

  • Page 15: Comm Module Upgrades

    Preparing The TLS-450 Console For Upgrade Comm Module Upgrades Comm Module Upgrades 1. Remove the module clamp securing screw and set aside clamp and screw (see Figure 10). Figure 10. Removing Comm Module Clamp LEGEND FOR NUMBERED BOXES IN Figure 9 1.

  • Page 16: Figure 12. Install Usb/Wireless Module In Slot 5

    Preparing The TLS-450 Console For Upgrade Comm Module Upgrades 4. Install the TLS-450PLUS USB Module in slot 5 (see Figure 12). blue blue yellow yellow Figure 12. Install USB/Wireless Module In Slot 5 5. Relocate other Comm module(s) in available slot(s). If CDIM module was in slot 4 relocate it to slot 1 or 2.

  • Page 17: Installing New Tls-450Plus Cpu Board

    Installing New TLS-450PLUS CPU Board 1. With anti-static strap attached to wrist and to metal surface of TLS-450 console, remove the iButton from the TLS-450 CPU board and install it in the empty socket on the new TLS-450PLUS CPU board (see Figure 14).

  • Page 18: Figure 17. Connect Ethernet Cables

    Preparing The TLS-450 Console For Upgrade Installing New TLS-450PLUS CPU Board 4. Reconnect the Ethernet Interface module’s three cables to the CPU board’s Ethernet connectors. Blue cable (E 3) to top connector, yellow (E 2) to next down and red (E 1)to lower connector - see Figure 17).

  • Page 19: Installing New Tls-450Plus Display Door

    Installing New TLS-450PLUS Display Door 1. Install the new TLS-450PLUS Display door on the console by attaching the door top and bottom hinges to the console. Use the two hinge shoulder screws retained following removal of the TLS-450 Display door (see Figure 21).

  • Page 20: Figure 21. Install The New Tls-450Plus Display Door

    Preparing The TLS-450 Console For Upgrade Installing New TLS-450PLUS Display Door Figure 21. Install The New TLS-450PLUS Display Door 2. Connect the Ground cable to the Display door (see Figure 22). Figure 22. Connect The Ground Cable...

  • Page 21: Figure 23. Connect Data Display And Led Backlight Cables To Cpu Board

    Preparing The TLS-450 Console For Upgrade Installing New TLS-450PLUS Display Door 3. Connect the Display door Display Data cable (pointer 1) and the LED Backlight cable (pointer 2) to their CPU board connectors (see Figure 23). If necessary rotate the Display Data cable’s locking flap (1a in Figure 23) up from the CPU connector and insert end of the Display Data ribbon cable fully into the connector then push down on the flap (1a) until it rests against the connector.

  • Page 22: Figure 25. Installing Sd Card

    Preparing The TLS-450 Console For Upgrade Installing New TLS-450PLUS Display Door 5. Press the outer edge of the SD card towards the interior of its enclosure and it should spring out so it can be removed. Remove the SD card and check that the read/write-protect switch on the side of the card is in the position shown in (item 1 Figure 25).

  • Page 23: Initializing The Tls-450Plus Console After The Upgrade

    Initializing The TLS-450PLUS Console After The Upgrade After installing the TLS-450PLUS upgrade follow the appropriate initial startup procedure below: 1. For Sites Without Wireless 2 Devices - Power up the TLS-450PLUS and wait 5 minutes until the console’s 'Discover Mode' is complete. For Sites With Wireless 2 Devices - Power up all Wireless 2 devices then power up the TLS RF console and wait 5 minutes.
  • Page 24 For technical support, sales or other assistance, please visit: www.veeder.com...
