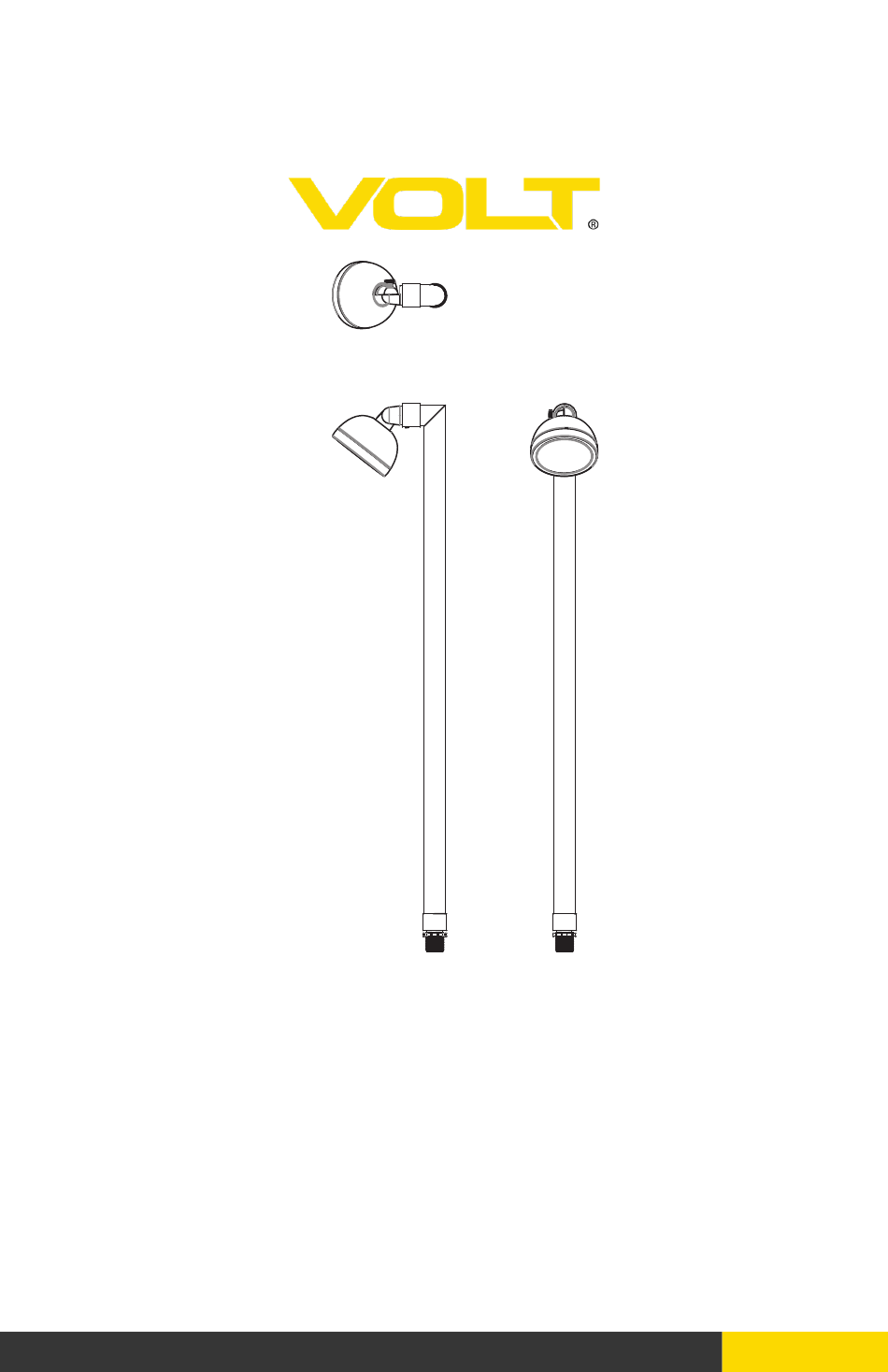

- Page 1 INSTALLATION INSTRUCTIONS VOLT LOW VOLTAGE LANDSCAPE LIGHTING ® VOLT Mini Round Wash Path & Area Light ® ITEM: VPL-1054 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
-
Page 2: Installation Instructions
INSTALLATION INSTRUCTIONS VOLT Mini Round Wash Path & Area Light - VFL-1054 ® IMPORTANT: PLEASE READ BEFORE INSTALLATION This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. -
Page 3: Package Contents
PACKAGE CONTENTS A. (1) Fixture Body B. (1) Allen Wrench PARTS REQUIRED A. (1) G4 Bulb B. Mounting Accessory PRODUCT DIMENSIONS 3.15” 2.63” 24.66” 813.978.3700 • customersupport@voltlighting.com • www.voltlighting.com... -
Page 4: Remove Lens
INSTALLATION INSTRUCTIONS VOLT Mini Round Wash Path & Area Light - VFL-1054 ® REMOVE LENS Loosen the lens and remove it Fixture Body from the fixture body by rotating it counter-clockwise. Lens Install G4 Bulb Socket Socket G4 Bulb G4 Bulb Insert G4 bulb with correct wattage and type marked on fixture label. - Page 5 INSTALL STAKE Determine the desired location for Board mounting the fixture. Hammer the stake into the ground until flange of stake is flush to grade. To avoid dam- age to the stake, place a board on top of the stake while hammering. Stake NOTE: If the ground is hard and the stake is difficult to install, make a...
-
Page 6: Wire Connection
INSTALLATION INSTRUCTIONS VOLT Mini Round Wash Path & Area Light - VFL-1054 ® WIRE CONNECTION Pigtail Wire Connectors Main Supply Cable Strip both the leads from the luminaire pigtail. Using two UL listed wire connectors (sold separately), connect the leads from the luminaire to the main supply cable leads. - Page 7 PACKAGE CONTENTS Please reverse Step 2 - Step 3 to expose the G4 bulb and replace it with the correct wattage and type marked on the fixture label. Then, reinstall the glare guard. IMPORTANT: The G4 bulb must be protected from moisture and dust at all times.
- Page 8 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2023, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • www.voltlighting.com...
