INSTALLATION INSTRUCTIONS
VOLT
Low Voltage Landscape Lighting
®
VOLT

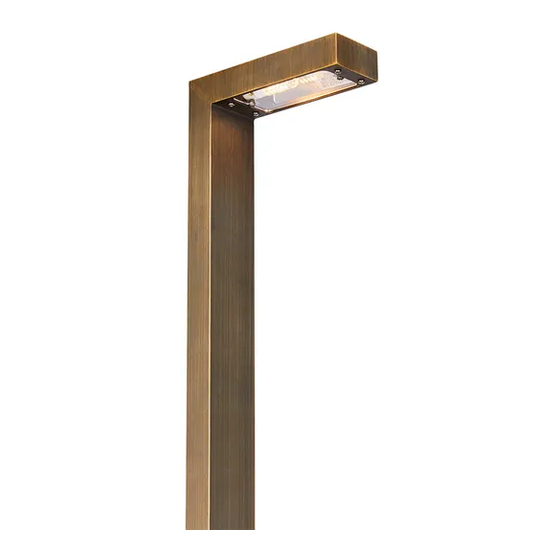

Wider Modernelle
®
VPL-1043-4-BBZ
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
Specifications and product details subject to change without notice.
© Copyright 2020, VOLT
customersupport@voltlighting.com • 813.978.3700
Lighting, Lutz FL USA 33549 • All rights reserved.
®
- 1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Volt VPL-1043-4-BBZ
Summary of Contents for Volt VPL-1043-4-BBZ
- Page 1 VPL-1043-4-BBZ Help Hotline: 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2020, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • 813.978.3700 - 1 -...
- Page 2 INSTALLATION INSTRUCTIONS VOLT Wider Modernelle ® VPL-1043-4-BBZ Important: Please Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 Package Contents A. (1) Fixture Body B. (1) Stake Parts Required (sold separately) A. (1) G4 Bi-Pin Product Dimensions 2” 6” 1” 22” customersupport@voltlighting.com • 813.978.3700 - 3 -...
- Page 4 INSTALLATION INSTRUCTIONS VOLT Wider Modernelle ® VPL-1043-4-BBZ Remove Lens Remove the lens from the fixture Fixture by loosening the screws. Lens Screw Install G4 Bulb Insert the Bi-Pin with correct wattage and type marked on Socket fixture label and push into place.
- Page 5 Install Lens Place the lens back onto the Fixture fixture and secure with the previously removed screws. Tighten until snug. Lens Screw Install Stake Determine the desired location Board for mounting the stake mount. Hammer the stake into the ground until flange of stake is flush to grade.
- Page 6 INSTALLATION INSTRUCTIONS VOLT Wider Modernelle ® VPL-1043-4-BBZ Install Fixture to Stake Pass the fixture wire through the center hole of the stake. Thread the fixture on to the stake and hand tighten until snug. Fixture Fixture Wire Wire Connections Supply Wire from...
- Page 7 Install/Replace G4 Bulb Please reverse Step 2 - Step 3 to expose the bi-pin and replace it with the correct wattage and type marked on the fixture label. And then reinstall the lens. IMPORTANT: Bi-Pin must be protected from moisture and dust at all times. Always reinstall the lens when removed.
- Page 8 . v o l t l i g h t i n g . c o m Specifications and product details subject to change without notice. © Copyright 2020, VOLT Lighting, Lutz FL USA 33549 • All rights reserved.
