INSTALLATION INSTRUCTIONS
VOLT
Low Voltage Landscape Lighting
®
VOLT

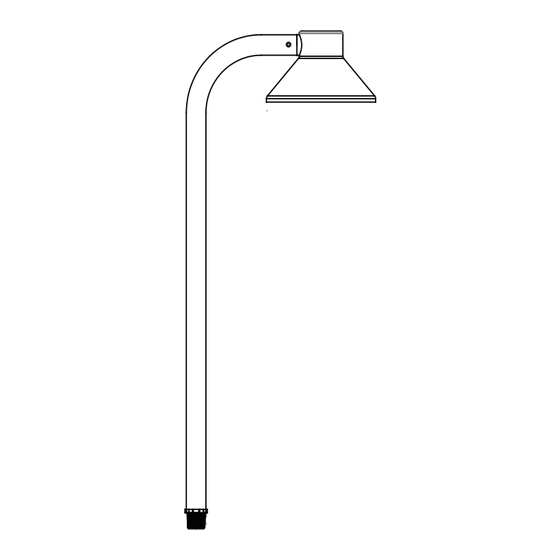

Arch Brass Path & Area Light (Bronze)
®
VPL-1044-4-BBZ
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
Specifications and product details subject to change without notice.
© Copyright 2021, VOLT
customersupport@voltlighting.com • 813.978.3700
Lighting, Lutz FL USA 33549 • All rights reserved.
®
- 1 -
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Volt VPL-1044-4-BBZ
Summary of Contents for Volt VPL-1044-4-BBZ
- Page 1 VPL-1044-4-BBZ Help Hotline: 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2021, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • 813.978.3700 - 1 -...
- Page 2 VOLT Arch Brass Path & Area Light (Bronze) ® VPL-1044-4-BBZ Important: Please Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and in-...
- Page 3 Package Contents A. (1) Fixture Product Dimensions 9.5” 5.5” 23” customersupport@voltlighting.com • 813.978.3700...
- Page 4 INSTALLATION INSTRUCTIONS VOLT Arch Brass Path & Area Light (Bronze) ® VPL-1044-4-BBZ Remove Lens Loosen the lens and Fixture Body remove it from the fixture body. Lens Install Bulb Insert bulb with correct watt- Fixture Body age and type marked on fixture label and push into place.
- Page 5 Install Stake Determine the desired location Board for mounting the stake mount. Hammer the stake into the ground until flange of stake is flush to grade. To avoid damage to the stake, place a board on top of the stake while hammer- Stake ing.
- Page 6 INSTALLATION INSTRUCTIONS VOLT Arch Brass Path & Area Light (Bronze) ® VPL-1044-4-BBZ Wire Connections Supply Wire from Fixture Body Pigtail Wire Connectors Main Supply Cable Strip both leads from the fixture body. Using two wire connectors (sold separately), connect leads from fixture body to the main supply cable leads.
- Page 7 Install/Replace Bulb Reverse Step 1 - Step 3 to expose the bulb and replace it with correct watt- age and type marked on fixture label. And then reinstall the lens. IMPORTANT: Bulb must be protected from moisture and dust at all times. Always reinstall the lens when removed.
- Page 8 . v o l t l i g h t i n g . c o m Specifications and product details subject to change without notice. © Copyright 2021, VOLT Lighting, Lutz FL USA 33549 • All rights ®...
