INSTALLATION INSTRUCTIONS
VOLT
Low Voltage Landscape Lighting
®
VOLT

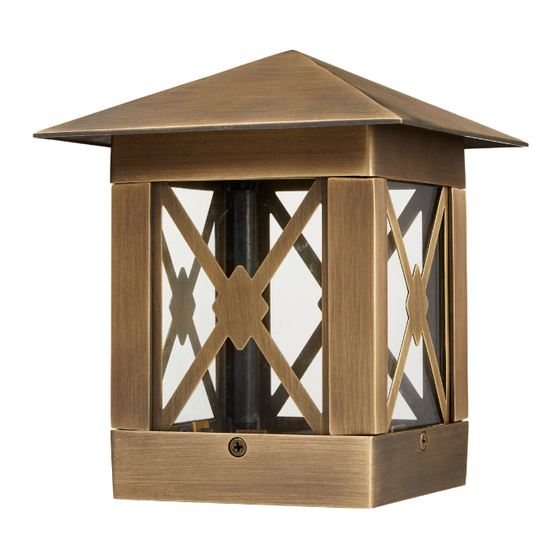

Guardsman Post Top Light
®
VPL-1011-4-BBZ
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
Specifications and product details subject to change without notice.
© Copyright 2019, VOLT
customersupport@voltlighting.com • 813.978.3700
Lighting, Lutz FL USA 33549 • All rights reserved.
®
- 1 -
Advertisement
Table of Contents
Related Manuals for Volt VPL-1011-4-BBZ
Summary of Contents for Volt VPL-1011-4-BBZ
- Page 1 VPL-1011-4-BBZ Help Hotline: 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. © Copyright 2019, VOLT Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@voltlighting.com • 813.978.3700 - 1 -...
- Page 2 INSTALLATION INSTRUCTIONS VOLT Guardsman Post Top Light ® VPL-1011-4-BBZ Important: Please Read Before Installation This fixture is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 Package Contents A. (1) Fixture Body Optional Parts (sold separately) A. (1) Stake C. (4) Self-tapping Screws B. (1) Extension Riser Product Dimensions 6” 6” 7” This fixture can be mounted to 4x4 wooden post or stake. Please refer to the respective installation instruction steps per below. customersupport@voltlighting.com •...
- Page 4 INSTALLATION INSTRUCTIONS VOLT Guardsman Post Top Light ® VPL-1011-4-BBZ OPTION A: MOUNT TO STAKE Install Extension Riser on Fixture Using a screwdriver, remove the bottom 4 screws from the fixture body. Fixture Pull the lead wire into the center of...
- Page 5 Install Fixture Body to Stake Clear away an area in the ground at the wireway slot on top of the stake. Lay the luminaire pigtail into the Fixture Body wireway slot. Then, thread the bottom end of the extension riser with the fixture body onto the stake.
- Page 6 INSTALLATION INSTRUCTIONS VOLT Guardsman Post Top Light ® VPL-1011-4-BBZ OPTION B: MOUNT TO A 4X4 Post Remove Top from Base Using a screwdriver, unscew the screws on the side of the base and remove the top from the base. Remove...
- Page 7 Install Top to Base Attach the top back onto the base and secure with the screws previously removed. Hand tighten with a screwdriver. Install Screw Base Wire Connection Pigtail Wire Connectors Main Supply Cable Strip both leads from the luminaire pigtail. Using two wire connectors (sold separately), connect the leads from the luminaire to the main supply cable leads.
- Page 8 . v o l t l i g h t i n g . c o m Specifications and product details subject to change without notice. © Copyright 2019, VOLT Lighting, Lutz FL USA 33549 • All rights ®...
