INSTALLATION INSTRUCTIONS
®
VOLT
Low Voltage Landscape Lighting
®
VOLT

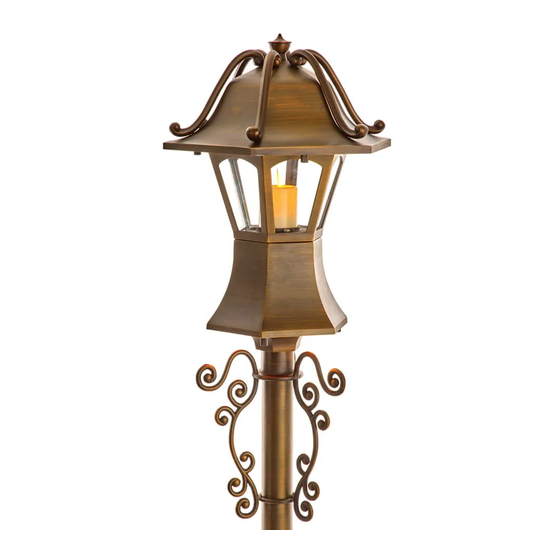

Coachman LED Path & Area Light
VPL-1006
Help Hotline:
1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
Specifications and product details subject to change without notice.
© Copyright 2021, VOLT
reserved. customersupport@voltlighting.com • 813.978.3700
Lighting, Lutz FL USA 33549 • All rights
®
- 1 -
Advertisement
Related Manuals for Volt VPL-1006
Summary of Contents for Volt VPL-1006
- Page 1 Help Hotline: 1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST) Specifications and product details subject to change without notice. Lighting, Lutz FL USA 33549 • All rights © Copyright 2021, VOLT ® reserved. customersupport@voltlighting.com • 813.978.3700 - 1 -...
- Page 2 INSTALLATION INSTRUCTIONS ® VOLT Coachman LED Path & Area Light VPL-1006 Important: Please Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty.
- Page 3 Package Contents C. (1) Ultra Realistic LED Moving A. (1) Fixture Flame Bi-Pin Candle B. (1) Stem D. (1) 17” Stake Additional Parts Required (sold separately) A. (1) LED SCB Lamp Product Dimensions 11” 62.25” 11” 9.5” TOP VIEW customersupport@voltlighting.com • 813.978.3700 - 3 -...
- Page 4 INSTALLATION INSTRUCTIONS ® VOLT Coachman LED Path & Area Light VPL-1006 Remove the Hat Remove the hat from the stem by removing the set screws from the hat mount. Inner Lens Hat Mount Screw Stem Install LED Lamp Insert the lamp with the correct wattage and type marked on the fixture label.
- Page 5 Reinstall Hat After installing the LED lamp into the socket, place the hat back onto the mount at the top of the stem. Secure both pieces in place with the set screws previously removed. Hand tighten until LED SCB snug. Lamp Mount Inner Lens...
- Page 6 INSTALLATION INSTRUCTIONS ® VOLT Coachman LED Path & Area Light VPL-1006 Install LED Bi-Pin Candle LED Bi-Pin Insert Ultra Realistic LED Candle Moving Flame Bi-Pin Candle. Upper CAUTION: Do not exceed Socket maximum wattage marked on luminaire label. Reinstall Upper Part of Hat...
- Page 7 Install Stem Pass the supply wires through the stem and extension. Then thread the extension onto the stem. Hand tighten until snug. Stem Extension Supply Wires customersupport@voltlighting.com • 813.978.3700 - 7 -...
- Page 8 Install Stake and Conduit Ground Level Stabilizer Grid Stake Conduit Dig a hole in the ground for the conduit runs and the stake. Install the conduit. Slide the stabilizer grid onto the stake and secure with the screws. Place the stake over the conduit runs. Backfill against the mounting stake.
- Page 9 Install Cap to Fixture Thread the cap onto the fixture body and hand tighten until snug. Extension Fixture Wires Wire Connection and Fixture Installation Set Screw Fixture Wire Connector Wires Stake Supply Wires Strip both leads from the luminaire pigtail. Using two wire connectors (sold separately), connect the leads from the luminaire to the main supply cable leads.
- Page 10 w w w . v o l t l i g h t i n g . c o m - 10 -...
- Page 11 customersupport@voltlighting.com • 813.978.3700 - 11 -...
- Page 12 . v o l t l i g h t i n g . c o m Specifications and product details subject to change without notice. Lighting, Lutz FL USA 33549 • All rights ® © Copyright 2021, VOLT reserved. customersupport@voltlighting.com • 813.978.3700 is-VPL-1006-ver6.pdf - 12...
