eNet

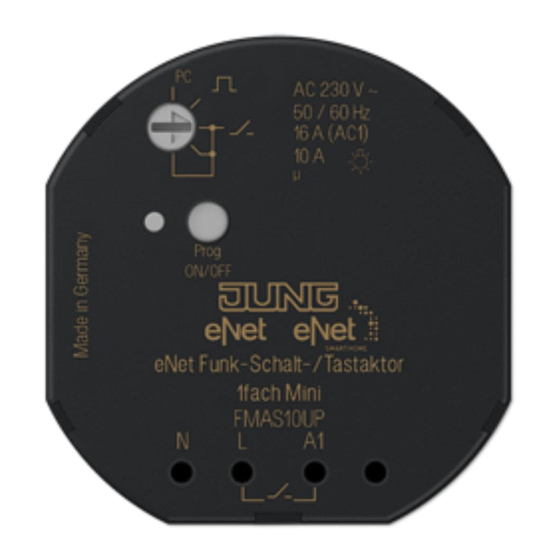

eNet radio switch/push-button actuator 1-gang mini
eNet radio switch/push-button actuator 1-gang mini
Art. No. : FMAS10UP
eNet radio switch/push-button actuator with floating contact, 1-gang mini
Art. No. : FMASPF10UP
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled
persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
Danger of electric shock on the SELV/PELV installation. Not suitable for switching
SELV/PELV voltages.
The radio communication takes place via a non-exclusively available transmission path,
and is therefore not suitable for safety-related applications, such as emergency stop and
emergency call.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
82581223
J0082581223

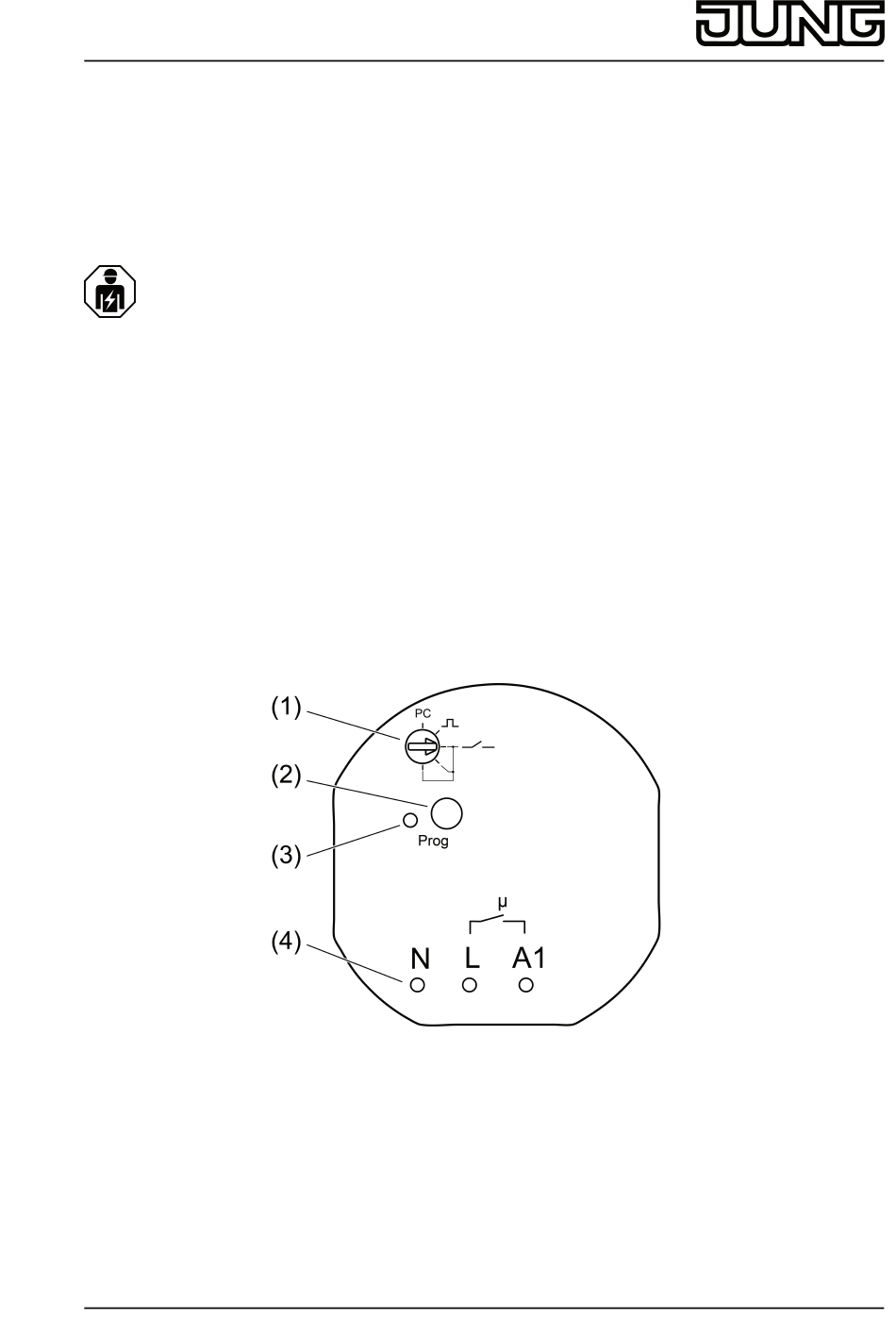

Figure 1: Radio actuator/push-button actuator
1/11
09.05.2016
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Jung eNet FMAS10UP
Summary of Contents for Jung eNet FMAS10UP
- Page 1 eNet eNet radio switch/push-button actuator 1-gang mini eNet radio switch/push-button actuator 1-gang mini Art. No. : FMAS10UP eNet radio switch/push-button actuator with floating contact, 1-gang mini Art. No. : FMASPF10UP Operating instructions 1 Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons.
- Page 2 eNet eNet radio switch/push-button actuator 1-gang mini Figure 2: Radio actuator/push-button actuator potential-free (1) Operating mode switch (2) Button Prog (3) Status LED (4) Measuring points for voltage measurement, terminals rear-mounted 3 Function Intended use Switching of lighting Operation with suitable eNet radio transmitters Installation in appliance box according to DIN 49073 Installation in surface-mounted housing or panel-mounted housing (accessories) for suspended ceilings...
-
Page 3: Operation
eNet eNet radio switch/push-button actuator 1-gang mini i The parameter list is on the Internet in the online instructions for this device. Supplementary functions with eNet server: Update of the device software Repeater function Reading of error memory Behaviour after mains voltage return The response after mains voltage return can be configured with the eNet server. - Page 4 eNet eNet radio switch/push-button actuator 1-gang mini Figure 4: Connection example radio actuator/push-button actuator potential-free Connect load as shown in the connection example (figure 3) or (figure 4). If multiple miniature circuit breakers supply dangerous voltages to the device or load, couple the miniature circuit breakers or label them with a warning, to ensure disconnection is guaranteed.
- Page 5 eNet eNet radio switch/push-button actuator 1-gang mini i In installation positions that are not easily accessible, turn the operating mode switch to position PC after commissioning and performing a function test. Subsequent changes to the device settings can thus be carried out with the aid of the eNet-Server without involving excessive installation work.
-
Page 6: Parameter List
eNet eNet radio switch/push-button actuator 1-gang mini Release Prog button and press briefly once again within 10 seconds. The status LED flashes more slowly for approx. 5 seconds. The device is reset to default setting. 6 Appendix 6.1 Technical data Rated voltage AC 230 V ~ Mains frequency... - Page 7 eNet eNet radio switch/push-button actuator 1-gang mini Settings, channel Parameters Setting options, Basic Explanations setting Manual commissioning On, Off Blocks manual commissioning Basic setting: On for the device channel. In the "Off" setting, the device cannot be reset to the factory setting.
- Page 8 eNet eNet radio switch/push-button actuator 1-gang mini Manual switch-off of the run- On, Off Allows manual switch-off of a on time Basic setting: Off running run-on time. If the parameter is switched off, then a switch-off command will also switch the actuator on. This parameter is directly connected to the "Run-on time"...
- Page 9 eNet eNet radio switch/push-button actuator 1-gang mini Behaviour on voltage return Defines the behaviour of the output after voltage return. Last value Configured brightness Basic setting: Off Manual saving of the scene On, Off Disables the saving of the values Basic setting: On current actuator state (On/Off) as scene value in an actuator...
- Page 10 eNet eNet radio switch/push-button actuator 1-gang mini Switch-off on brightness On, Off Allows automatic switch-off overshoot Basic setting: On according to the brightness. If the parameter is On, then the light controller switches off automatically when the brightness setpoint is greatly exceeded.
-
Page 11: Warranty
Art. No. ENET-SERVER 6.4 Conformity Albrecht Jung GmbH & Co. KG hereby declares that the radio system type Art. No. FMAS10UP / FMASPF10UP corresponds to the directive 2014/53/EU. You can find the full article number on the device. The complete text of the EU Declaration of Conformity is available under the Internet address: www.jung.de/ce...
