Radio Management
Radio push-button controller for rail mounting
Radio push-button controller for rail mounting
Art.-No.: FST 1240 REG
Operationsmanual
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
These instructions are an integral part of the product, and must remain with the end
customer.

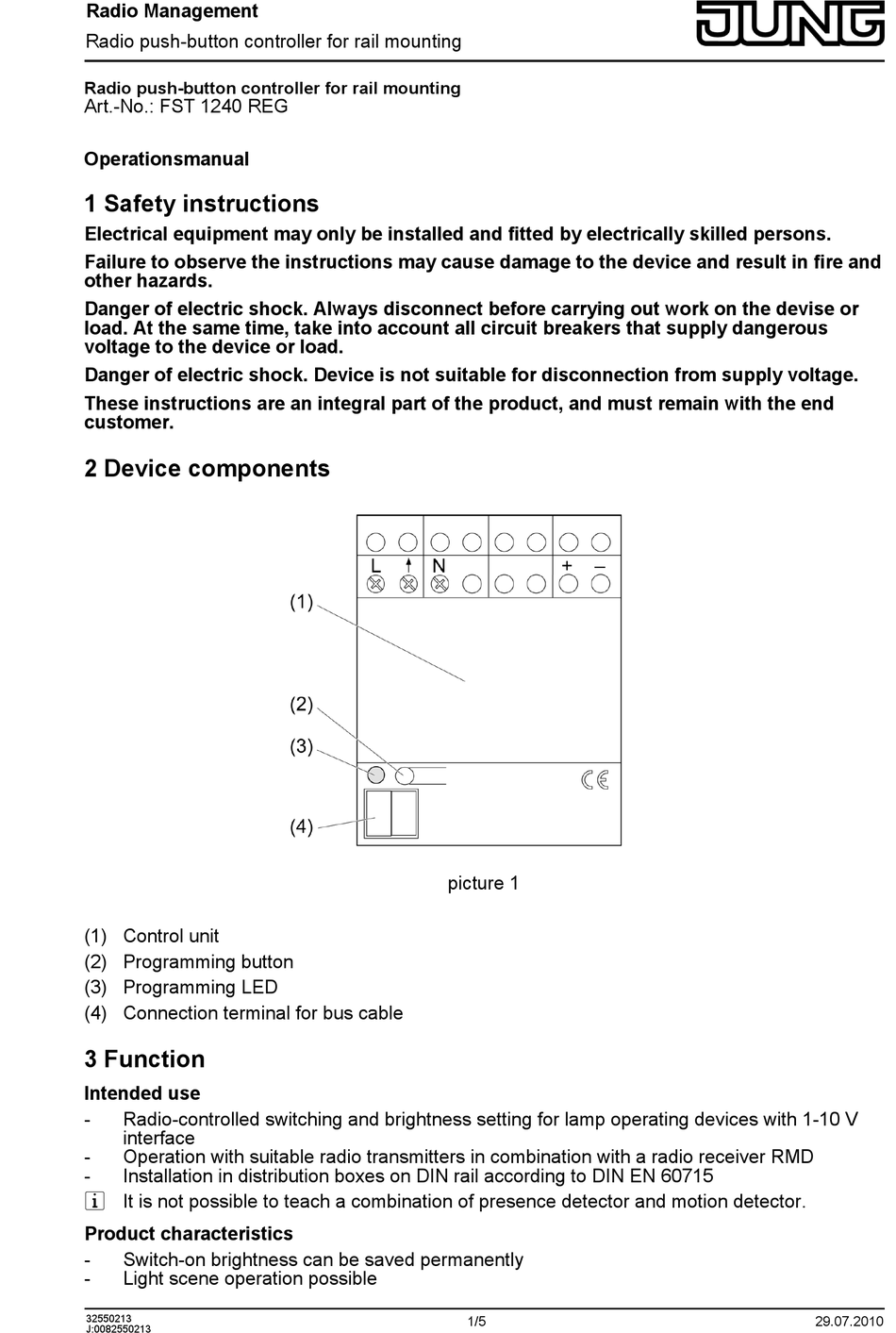

2 Device components
(1) Control unit
(2) Programming button
(3) Programming LED
(4) Connection terminal for bus cable
3 Function
Intended use
-
Radio-controlled switching and brightness setting for lamp operating devices with 1-10 V
interface
-
Operation with suitable radio transmitters in combination with a radio receiver RMD
-
Installation in distribution boxes on DIN rail according to DIN EN 60715
i It is not possible to teach a combination of presence detector and motion detector.
Product characteristics
-
Switch-on brightness can be saved permanently
-
Light scene operation possible
32550213
J:0082550213
picture 1
1/5
29.07.2010
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Jung FST 1240 REG
Summary of Contents for Jung FST 1240 REG
- Page 1 Radio Management Radio push-button controller for rail mounting Radio push-button controller for rail mounting Art.-No.: FST 1240 REG Operationsmanual 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Failure to observe the instructions may cause damage to the device and result in fire and other hazards.
-
Page 2: Operation
Radio Management Radio push-button controller for rail mounting Constant light regulation possible in connection with a radio presence detector Run-on time of approx. 1 minute in connection with radio motion detectors. 4 Operation A radio transmitter has to be taught in order to be able to operate the device. i Observe the instructions for the radio transmitter. - Page 3 Radio Management Radio push-button controller for rail mounting i Only use lamp operating devices and lamps that are of the same type, the same power level, and from the same manufacturer. Otherwise there may be differences in brightness between the individual lamps. Switch on mains voltage.
-
Page 4: Troubleshooting
Radio Management Radio push-button controller for rail mounting Deleting all radio transmitters Load is switched off. Press the programming button for approx. 20 seconds. After approx. 4 seconds the LED blinks. After approx. 20 seconds the LED flashes. During the next 6 seconds, release the programming button and press it again for approx. 1 second. -
Page 5: Warranty
We provide a warranty as provided for by law. Please send the unit postage-free with a description of the defect to our central customer service office: ALBRECHT JUNG GMBH & CO. KG Service Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +49 (0) 23 55 .
