Radio actuator for rail mounting
Radio switch actuator for rail mounting

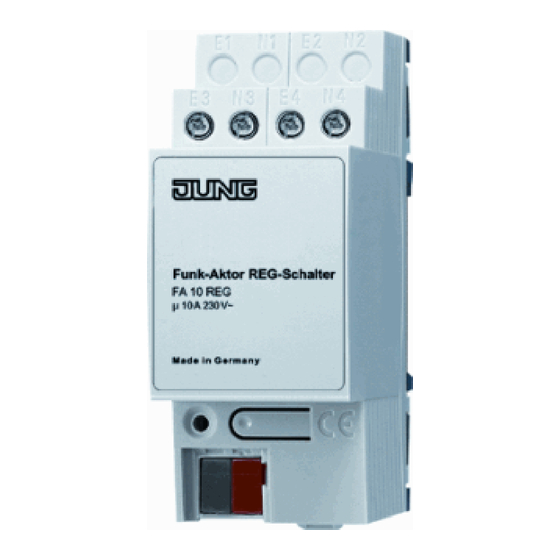

Art.-No.: FA 10 REG
Radio push-button actuator for rail mounting
Art.-No.: FA 10 REGT
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
(1) Switch/push-button actuator
(2) Programming button
(3) LED
(4) Connection terminal for bus cable
3 Function
Intended use
-
Radio-controlled switching of incandescent lamps, fluorescent lamps, HV halogen lamps
and Tronic or inductive transformers with halogen lamps
-
Operation with suitable radio transmitters in combination with RMD radio receivers or via
extension units
-
Suitable for mixed operation up to the specified output (Technical data)
-
Installation in distribution boxes on DIN rail according to DIN EN 60715
i It is not possible to teach a combination of presence detector and motion detector.
82549913
J:0082549913

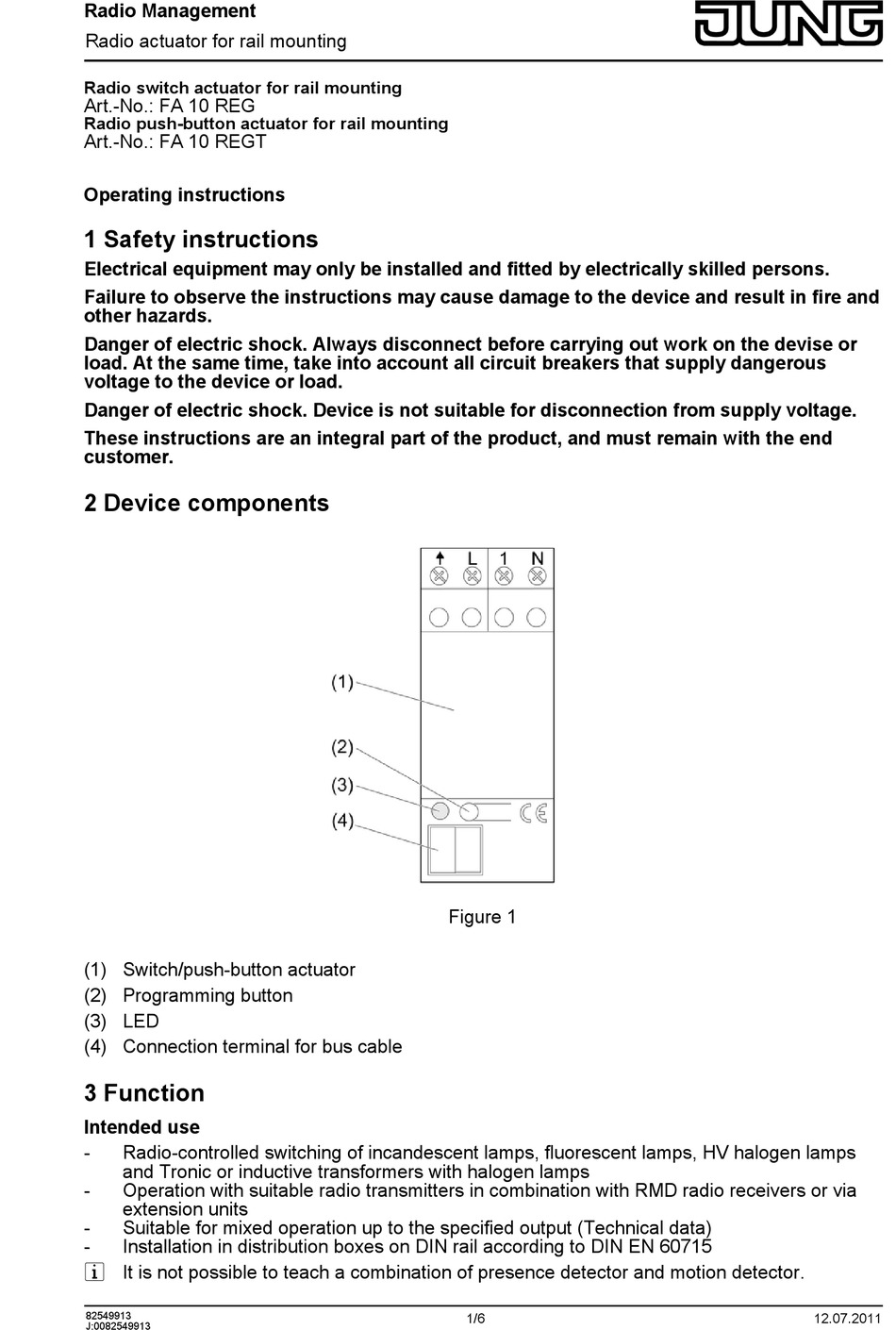

Figure 1
1/6
12.07.2011
