Jung FST1240EB Operating Instructions

Radio Management

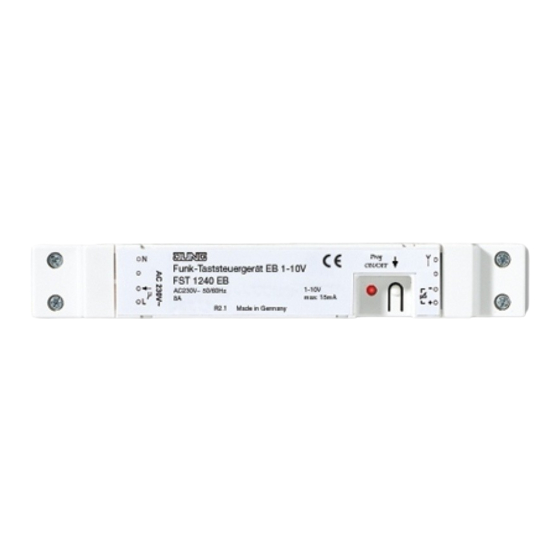

Radio push-button controller, built-in
Radio push-button controller, built-in
Art. No. : FST1240EB
Operating instructions

1 Safety instructions

Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. The 1...10 V control voltage is a functional extra-low voltage
(FELV), and can be connected to mains potential. On installing, ensure safe separation to
SELV/PELV systems. In order to disconnect the connected luminaires, disconnect both
the mains voltage and control voltage circuits.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
The radio communication takes place via a non-exclusively available transmission path,
and is therefore not suitable for safety-related applications, such as emergency stop and
emergency call.
Do not shorten, extend or strip the antenna. Device can be damaged.
These instructions are an integral part of the product, and must remain with the end
customer.

2 Device components

(1) Radio control unit
(2) LED
(3) Programming button
(4) Antenna

3 Function

System information
By statute, the transmitting power, the reception characteristics and the antenna cannot be
changed.
The range of a radio system from the transmitter to the receiver depends on various
circumstances.
32532333
J0032532333
Figure 1
1/5 08.09.2016
