Jung eNet FM AS 16 REG Operating Instructions Manual

eNet
Radio switch actuator for rail mounting, 1-channel
Radio switch actuator for rail mounting, 1-channel
Art. No. : FM AS 16 REG
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Danger of electric shock. During installation and cable routing, comply with the
regulations and standards which apply for SELV circuits.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
Fire hazard! Operation exclusively with the power supplies listed under accessories
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
(1) Load connection
(2) Operating mode switch
(3) Button Prog
(4) Status LED
(5) Bus line connection
3 Function
System information
This device is a part of the eNet system.
High transmission reliability at a radio frequency of 868 MHz is achieved by the transmission
behaviour and bidirectional data transfer.
The range of a radio system depends on various external circumstances. The range can be
optimised by the choice of installation location.
82581713
J:0082581713

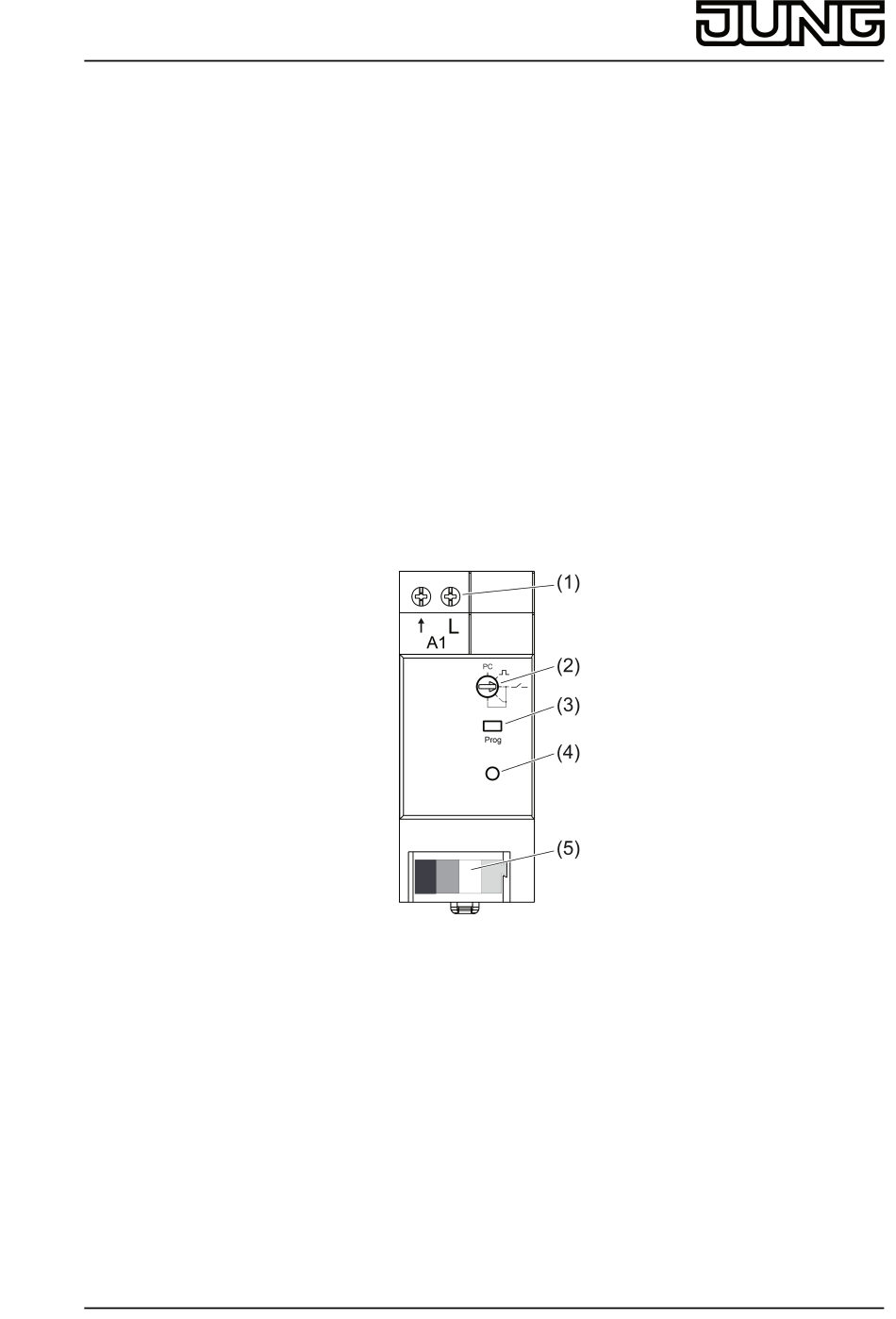

Figure 1: Device components
1/11 11.03.2014
