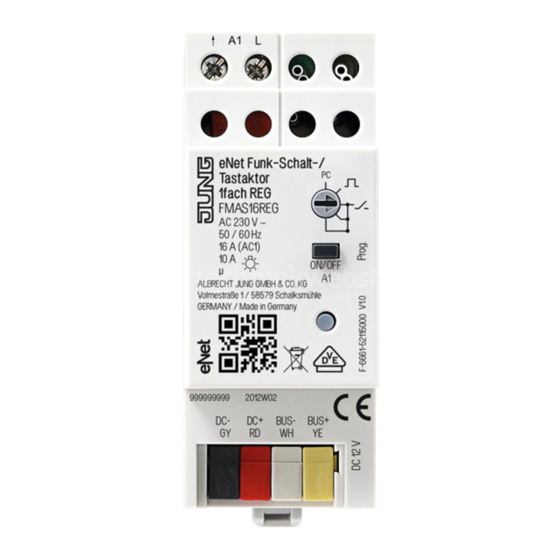

eNet radio switch/push-button actuator 1-gang, for rail mounting
eNet radio switch/push-button actuator 1-gang, for rail mounting
Art. No. : FMAS16REG
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled
persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. In so doing, take all the circuit breakers into account, which support dangerous
voltages to the device and or load.
Danger of electric shock. During installation and cable routing, comply with the
regulations and standards which apply for SELV circuits.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
Fire hazard! Operation exclusively with the power supplies listed under accessories
These instructions are an integral part of the product, and must remain with the end
customer.

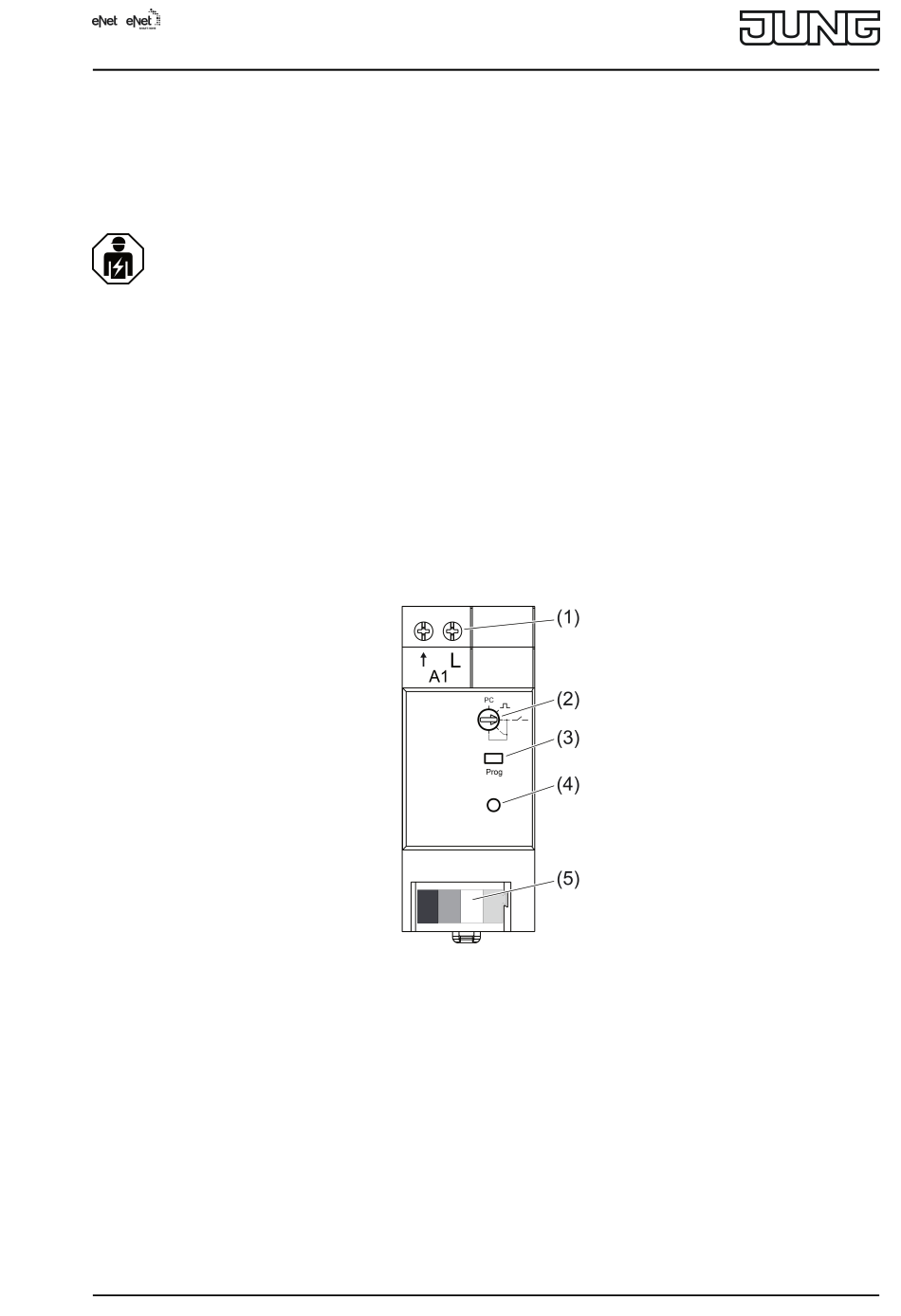

2 Device components
(1) Load connection
(2) Operating mode switch
(3) Button Prog
(4) Status LED
(5)
Bus line connection
3 Function
Intended use
-
Switching of lighting
-
Operation with suitable eNet radio transmitters
82581723
J0082581723
Figure 1: Device components
1/12
23.03.2017
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Jung FMAS16REG
Summary of Contents for Jung FMAS16REG
- Page 1 1-gang, for rail mounting eNet radio switch/push-button actuator 1-gang, for rail mounting Art. No. : FMAS16REG Operating instructions 1 Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully.
-
Page 2: Operation
eNet radio switch/push-button actuator 1-gang, for rail mounting Operation with power supply RMD and receiver module RMD cover or eNet server (see accessories) Installation in distribution boxes on DIN rail according to EN 60715 Product characteristics Operating mode switch for switching/push-button actuator switch-over or parameterisation via eNet server Status feedback to radio transmitter Scene operation possible... - Page 3 eNet radio switch/push-button actuator 1-gang, for rail mounting Fitting the device Mount device on DIN rail. Output terminals must be at the top. Connect bus line Figure 2: Connection diagram of bus line Labelling / Colour Connection DC– / GY dark grey Power supply –...
- Page 4 eNet radio switch/push-button actuator 1-gang, for rail mounting Connecting loads Figure 3: Connection example Connect device as shown in the connection example (figure 3). Presetting the operating mode Figure 4: Operating mode switch Switch position Function Operating mode and parameter set with eNet server.*) Push-button operation Switching operation...
- Page 5 eNet radio switch/push-button actuator 1-gang, for rail mounting 5.2 Commissioning DANGER! Electrical shock when live parts are touched. Electrical shocks can be fatal. During commissioning, cover the parts carrying voltage on radio transmitters and actuators and in their surrounding area. i The actuator can also be commissioned with eNet Server as an alternative to the commissioning described here.
-
Page 6: Parameter List
eNet radio switch/push-button actuator 1-gang, for rail mounting 6 Appendix 6.1 Technical data Rated voltage AC 230 V ~ Mains frequency 50 / 60 Hz Ambient temperature -5 ... +45 °C Switching current for AC 230 V ~ Ohmic 16 A For switching current >10A connecting cable 2.5mm² Fluorescent lamps 4 AX Minimum switching current AC... - Page 7 eNet radio switch/push-button actuator 1-gang, for rail mounting Operating mode Switching operation Switching operation Push-button operation After switch-on, the device Flashing remains stable in the "On" Continuous on state, and stable in the "Off" Continuous off state after switch-off. Basic setting: Switching operation Push-button operation The device switches "On"...
- Page 8 eNet radio switch/push-button actuator 1-gang, for rail mounting Switch-on delay 0 s … 24 h The load switches on after a Basic setting: 0 s delay. Repeated switch-on commands restart the delay time. If the load has not yet been switched on due to the delay when a switch-off command comes, then the load will remain off.
- Page 9 eNet radio switch/push-button actuator 1-gang, for rail mounting Operating hours 0...65535 The time is counted during Basic setting: Current value which the load is physically switched on (relay contact closed). This parameter can be reset to "0", for example after exchanging the load.
- Page 10 eNet radio switch/push-button actuator 1-gang, for rail mounting Switch-off warning On, Off If the switch-off warning is Basic setting: Off active, the light is not switched off directly. The light goes off 30, 15 and 6 seconds before permanent switch-off. During the switch-off warning, a switch-on telegram effects direct switch-on.
- Page 11 eNet radio switch/push-button actuator 1-gang, for rail mounting Deactivate sun protection On, Off Defines the behaviour of the switching state Basic setting: Off output on deactivating the sun protection. Only visible when the priority for the sun protection is 0. Priority, twilight 0...4 Specifies the priority for...
-
Page 12: Warranty
Art. No. ENET-SERVER 6.4 Warranty The warranty follows about the specialty store in between the legal framework as provided for by law. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de...
