Radio Management

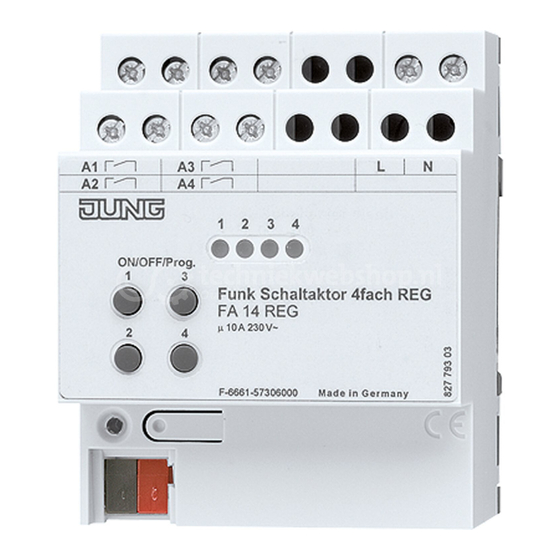

Radio switch actuator for rail mounting
Radio switch actuator for rail mounting
Art.-No.: FA 14 REG
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
(1) Switch actuator
(2) LED
(3) Programming buttons
(4) Connection terminal
3 Function
Intended use
-
Radio-controlled switching of incandescent lamps, fluorescent lamps, HV halogen lamps
and Tronic or inductive transformers with halogen lamps
-
Operation with suitable radio transmitters in combination a radio receiver RMD
-
Suitable for mixed operation up to the specified output (Technical data)
-
Installation in distribution boxes on DIN rail according to DIN EN 60715
i It is not possible to teach a combination of presence detector and motion detector.
Product characteristics
-
Manual operation on switch actuator possible
-
4 independent switching outputs
82561013
J:0082561013

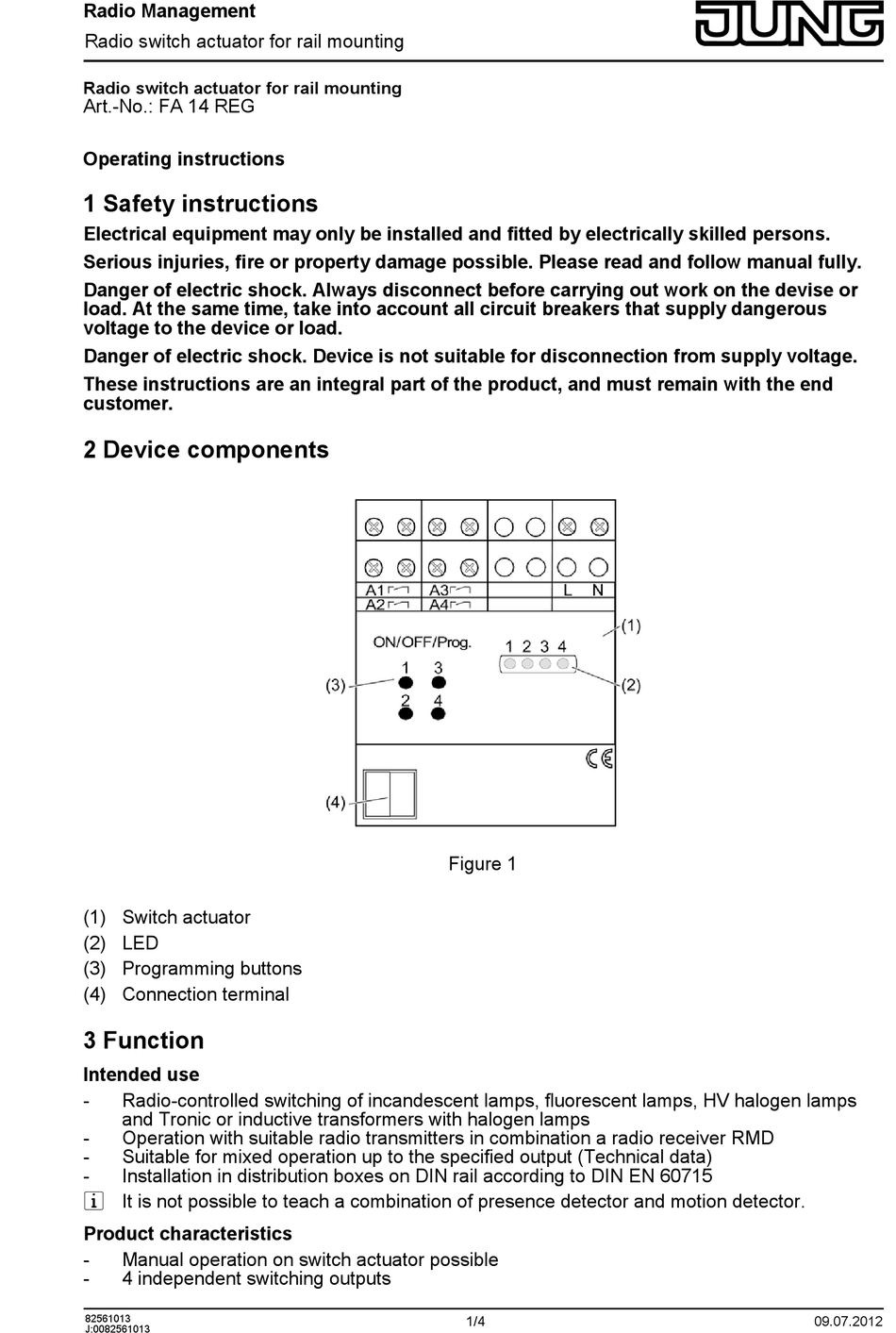

Figure 1
1/4
09.07.2012
Advertisement
Table of Contents
Related Manuals for Jung FA 14 REG
Summary of Contents for Jung FA 14 REG
- Page 1 Radio Management Radio switch actuator for rail mounting Radio switch actuator for rail mounting Art.-No.: FA 14 REG Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully.
- Page 2 Radio Management Radio switch actuator for rail mounting Light scene operation possible 2-point light control in combination with a radio presence detector possible Run-on time of approx. 1 minute in connection with radio motion detectors. 4 Operation Operation with radio transmitter A radio transmitter has to be taught in order to be able to operate the switch actuator.
- Page 3 Radio Management Radio switch actuator for rail mounting Connect switch actuator according to connection diagram (figure 2). Outputs A1 to A4 can be connected to various phases. Connect switching actuator via a bus cable (5) with the radio receiver RMD (6) and/or additional radio actuators.
- Page 4 We provide a warranty as provided for by law. Please send the unit postage-free with a description of the defect to our central customer service office. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle Telefon: +49.23 55.8 06-0 Telefax: +49.23 55.8 06-2 04...
