eNet radio push-button controller 1-10 V 1-gang mini
eNet radio push-button controller 1-10 V 1-gang mini
Art. No. : FMST50UP
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled
persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. In so doing, take all the circuit breakers into account, which support dangerous
voltages to the device and or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
These instructions are an integral part of the product, and must remain with the end
customer.

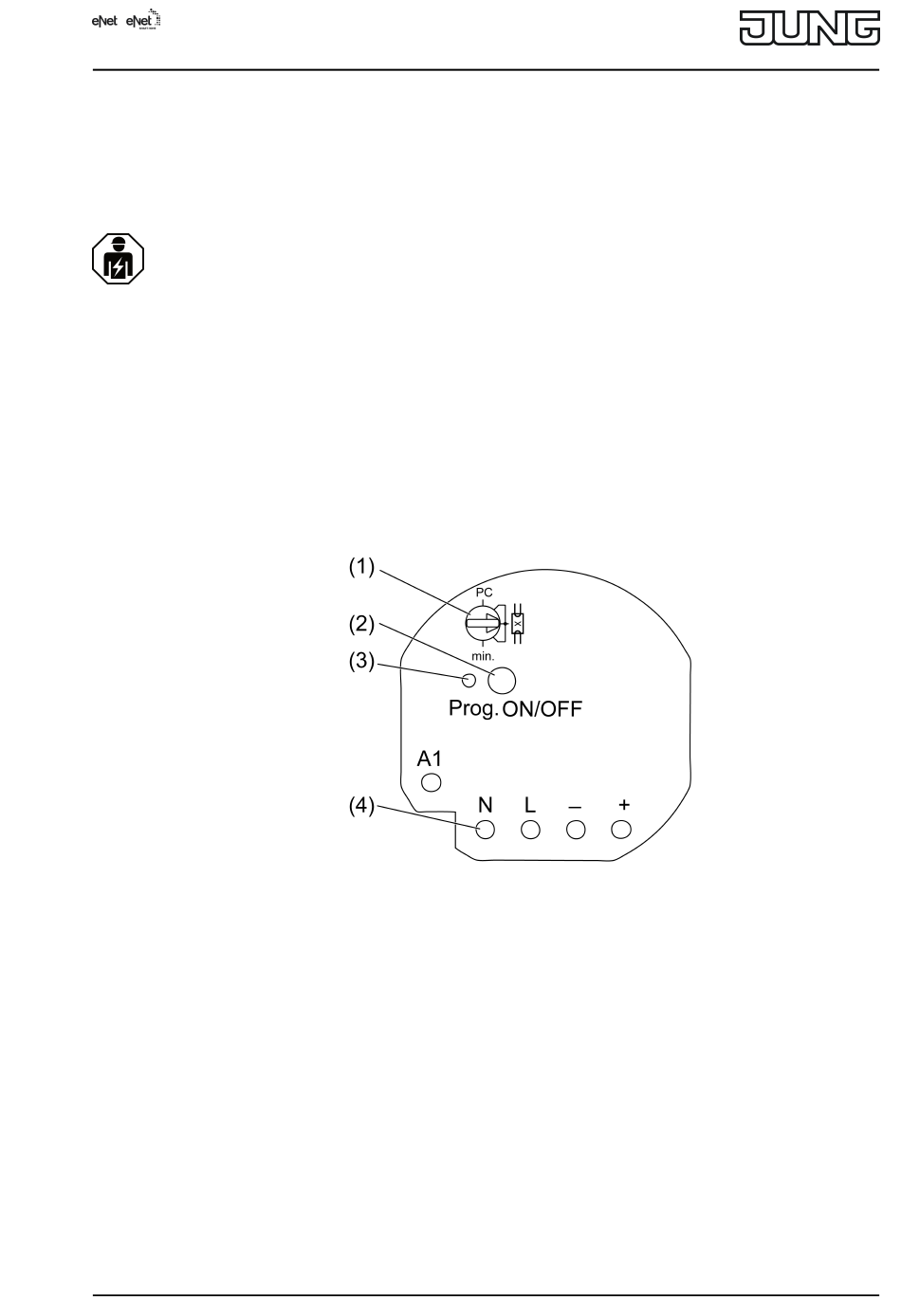

2 Device components
(1) Operating mode switch
(2) Button Prog
(3) Status LED
(4) Measuring points for voltage measurement, terminals rear-mounted
3 Function
Intended use
-
Switching and brightness setting of luminaires with 1-10 V interface
-
Operation with suitable radio transmitters
-
Mounting in appliance box according to DIN 49073 in combination with a suitable cover
-
Installation in surface-mounted housing or panel-mounted housing (accessories) for
suspended ceilings
Product characteristics
-
Switch-on brightness can be saved permanently
-
Minimum brightness can be saved permanently
82581023
J0082581023
Figure 1: Device components
1/12
29.03.2017
Advertisement
Related Manuals for Jung FMST50UP
Summary of Contents for Jung FMST50UP
- Page 1 1-10 V 1-gang mini eNet radio push-button controller 1-10 V 1-gang mini Art. No. : FMST50UP Operating instructions 1 Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully.
-
Page 2: Operation
eNet radio push-button controller 1-10 V 1-gang mini Scene operation possible Status indicator of the 1-10 V subscribers via LED Status feedback to radio transmitter 1-10 V subscribers switchable with Prog button 1-10 V interface is protected against reverse polarity Can be set with eNet server: Maximum brightness Dimming speed... - Page 3 eNet radio push-button controller 1-10 V 1-gang mini Figure 2: Connection example i Ensure that the control cable is of the appropriate type, cross-section and routing for the VDE specifications for 250 V cable, control voltage has basic insulation. i The control cable and load cable can be run in a shared cable, e.g. NYM J 5×1.5. Connect actuator (5) and 1-10 V ballasts (6) as shown in the connection example (figure 2).
- Page 4 eNet radio push-button controller 1-10 V 1-gang mini Switch on mains voltage. i The 1-10 V ballasts can be switched by briefly pressing the Prog button. Status-LED (3) lights up: switched on Status LED (3) off: switched off Perform commissioning. Mount the cover.
-
Page 5: Parameter List
eNet radio push-button controller 1-10 V 1-gang mini The actuator is reset to default setting. Setting the minimum brightness The minimum brightness can be set within a range of approx. 1...67 %, if, e.g. the light flickers at low brightness or to compensate for differences in brightness. Turn operating mode switch (1) to the min. - Page 6 eNet radio push-button controller 1-10 V 1-gang mini Function Light, unused Light Basic setting: Light The channel is integrated for the "Lighting" central function in the eNet SMART HOME app. Unused The channel is not displayed in the eNet SMART HOME app and is disabled for use in the commissioning interface.
- Page 7 eNet radio push-button controller 1-10 V 1-gang mini Minimum brightness 1...67 % Specifies the minimum Basic setting: 5 % settable brightness. Note: If parameters or scene values are set to a level lower than the minimum brightness, then the system will dim to minimum brightness.
- Page 8 eNet radio push-button controller 1-10 V 1-gang mini Dim down ramp 0 s … 24 h Time until reaching minimum Basic setting: 0 s brightness. The light is dimmed to minimum brightness and then switched off. Only applies to switch-off with transmitters (short operation).
- Page 9 eNet radio push-button controller 1-10 V 1-gang mini Local Operation On, Off Blocks the output for operation Basic setting: On using the Prog button. Behaviour on voltage return Defines the behaviour of the output after voltage return. Last value Configured brightness Basic setting: Off Brightness on voltage return 0...100 %...
- Page 10 eNet radio push-button controller 1-10 V 1-gang mini Activate lock-out protection 0…100 % Defines the behaviour of the brightness value Basic setting: 0 % output on activating the lock- out protection. Deactivate lock-out protection 0…100 % Defines the behaviour of the brightness value Basic setting: 0 % output on deactivating the...
- Page 11 eNet radio push-button controller 1-10 V 1-gang mini Deactivate twilight brightness 0…100 % Defines the behaviour of the value Basic setting: 0 % output on deactivating the twilight function. Only visible when the priority for the twilight function is 0. Switch off brightness On, Off Allows automatic switch-off...
-
Page 12: Troubleshooting
Art. No. ENET-SERVER 6.5 Conformity Albrecht Jung GmbH & Co. KG hereby declares that the radio system type Art. No. FMST50UP corresponds to the directive 2014/53/EU. You can find the full article number on the device. The complete text of the EU Declaration of Conformity is available under the Internet address: www.jung.de/ce...
