Radio Management
Radio blinds actuator, flush-mounted
Radio blinds actuator, flush-mounted
Art.-No.: FAJ 6 UP
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Always disconnect device before working on it. At the same
time, take into account all circuit breakers that supply dangerous voltage to the device.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
The radio communication takes place via a non-exclusively available transmission path,
and is therefore not suitable for safety-related applications, such as emergency stop and
emergency call.
For parallel connection of several motors to an output it is essential to observe the
corresponding instructions of the manufacturers, and to use a cut-off relay if necessary.
The motors may be destroyed.
Use only Venetian blind drives with mechanical or electronic limit switches. Check the
limit switches for correct adjustment. Observe the specifications of the motor
manufacturers. Device can be damaged.
Danger of electric shock. The antenna has basic insulation. Do not lead it through the
appliance box.
Do not shorten, extend or strip the antenna. Device can be damaged.
These instructions are an integral part of the product, and must remain with the end
customer.
Risk of injury. Use the device only for controlling Venetian blind and roller shutter
motors or awnings. Do not use it to switch other loads.

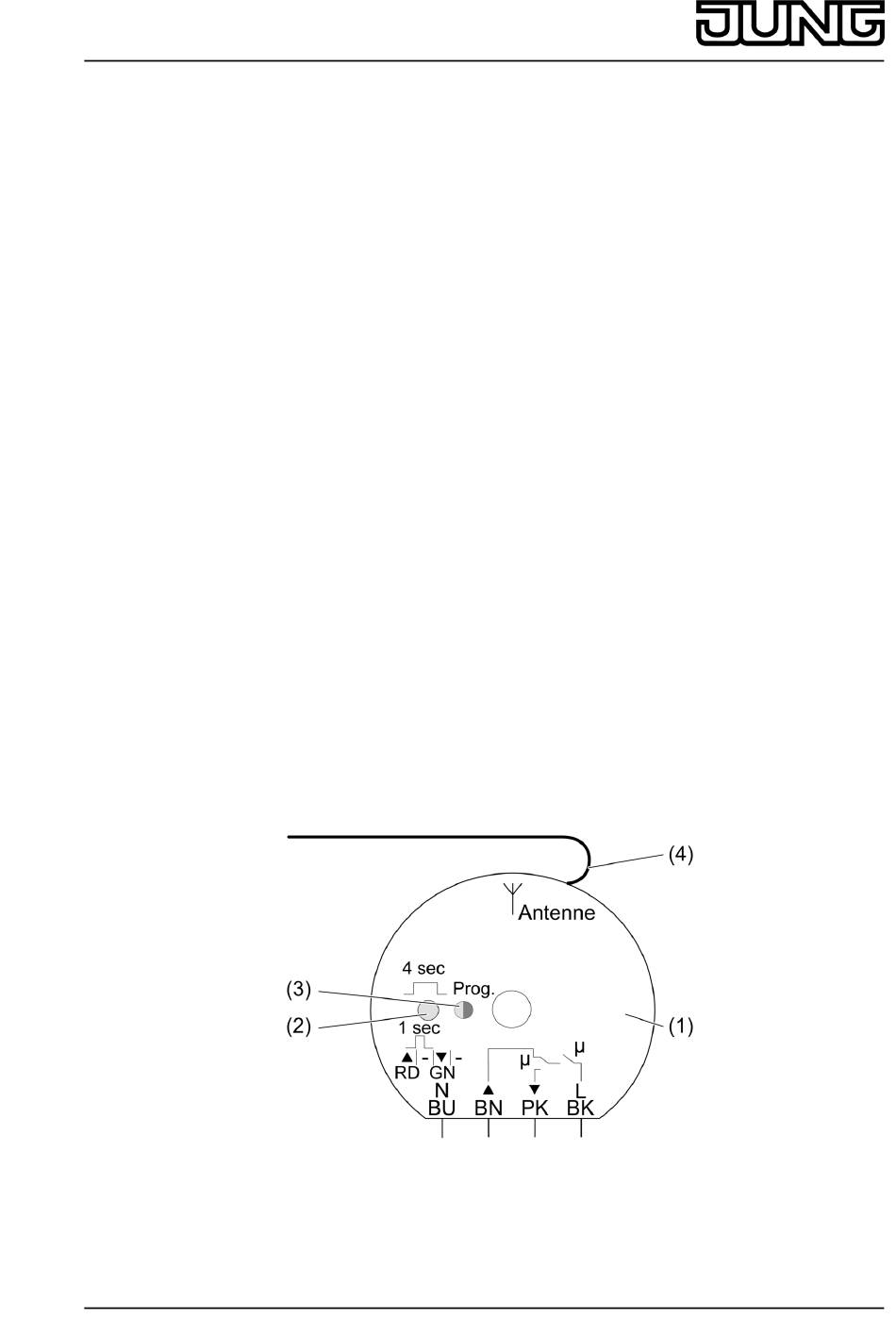

2 Device components
(1) Shutter actuator
(2) Programming button
(3) LED, two-colour
32534913
J:0082534913
Figure 1
1/7
20.12.2010

Advertisement

loading
Need help?

Need help?

Do you have a question about the FAJ 6 UP and is the answer not in the manual?

Questions and answers

Related Manuals for Jung FAJ 6 UP

Summary of Contents for Jung FAJ 6 UP

  • Page 1 Radio Management Radio blinds actuator, flush-mounted Radio blinds actuator, flush-mounted Art.-No.: FAJ 6 UP Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Failure to observe the instructions may cause damage to the device and result in fire and other hazards.

  • Page 2: Operation

    Radio Management Radio blinds actuator, flush-mounted (4) Antenna 3 Function System information By statute, the reception characteristics and the antenna cannot be changed. The device may be operated in all EU and EFTA countries. The declaration of conformity can be viewed on our website. The range of a radio system from the transmitter to the receiver depends on various circumstances.
  • Page 3 Radio Management Radio blinds actuator, flush-mounted 5 Information for electrically skilled persons 5.1 Fitting and electrical connection DANGER! Electrical shock when live parts are touched. Electrical shocks can be fatal. Before carrying out work on the device or load, disengage all the corresponding circuit breakers.
  • Page 4 Radio Management Radio blinds actuator, flush-mounted Figure 4 Insert the Shutter actuator in the appliance box in such a way that the programming button and the LED are visible. Lay the antenna stretched out freely if possible. Switch on mains voltage. Test operation on the device.
  • Page 5 Radio Management Radio blinds actuator, flush-mounted Figure 6: Connection of the fine-wire cable Push the terminal together on the side with the square opening and connect a fine-wire cable (figure 6). Figure 7: Connection of the single-stranded cable Push the single-stranded cable into the round opening on the installation side up to the stop (figure 7).

  • Page 6: Troubleshooting

    Radio Management Radio blinds actuator, flush-mounted The LED blinks. The device is in programming mode for approx. 1 minute. Press radio transmitter LED lights up red. The radio transmitter has been taught. Press the programming button briefly. Venetian blind actuator switches to the operating mode. i The programming mode is exited automatically after about 1 minute.

  • Page 7: Warranty

    We provide a warranty as provided for by law. Please send the unit postage-free with a description of the defect to our central customer service office: ALBRECHT JUNG GMBH & CO. KG Service Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +49 (0) 23 55 .
