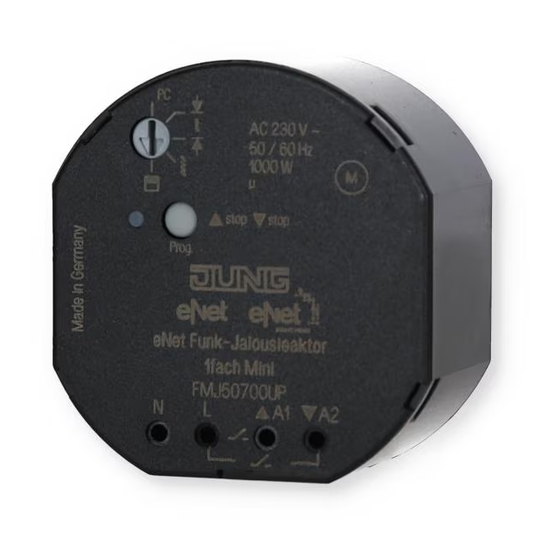

eNet radio blinds actuator 1-gang mini
eNet radio blinds actuator 1-gang mini
Art. No. : FMJ50700UP
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled
persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. In so doing, take all the circuit breakers into account, which support dangerous
voltages to the device and or load.
For parallel connection of several motors to an output it is essential to observe the
corresponding instructions of the manufacturers, and to use a cut-off relay if necessary.
The motors may be destroyed.
Risk of injury. Use the device only for controlling Venetian blind and roller shutter
motors or awnings. Do not use it to switch other loads.
Use only venetian blind motors with mechanical or electronic limit switches. Check the
limit switches for correct adjustment. Observe the specifications of the motor
manufacturers. Device can be damaged.
These instructions are an integral part of the product, and must remain with the end
customer.

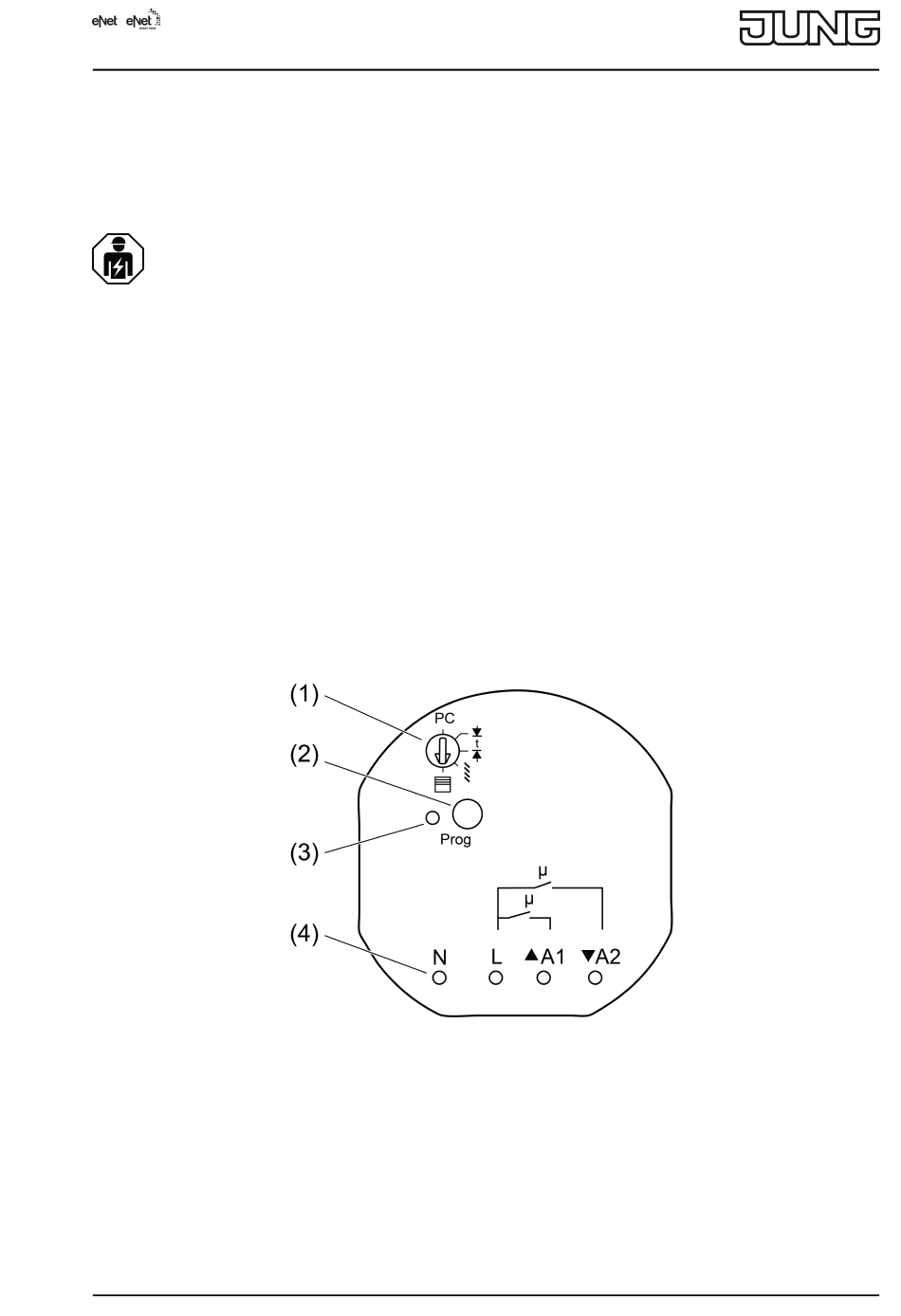

2 Device components
(1) Operating mode switch
(2) Button Prog
(3) Status LED
(4) Measuring points for voltage measurement, terminals rear-mounted
3 Function
Intended use
-
Controlling electrically driven Venetian blinds, rolling shutters and awnings
82581443
J0082581443
Figure 1: Front view
1/11
24.03.2017

Advertisement

loading
Need help?

Need help?

Do you have a question about the FMJ50700UP and is the answer not in the manual?

Questions and answers

Summary of Contents for Jung FMJ50700UP

  • Page 1 1-gang mini eNet radio blinds actuator 1-gang mini Art. No. : FMJ50700UP Operating instructions 1 Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully.
  • Page 2: Operation

    eNet radio blinds actuator 1-gang mini Operation with suitable eNet radio transmitters Mounting in appliance box according to DIN 49073 with a suitable cover Installation in surface-mounted housing or panel-mounted housing (accessories) for suspended ceilings Product characteristics Operating mode switch for switch-over to blind actuator, shutter actuator or parameterisation via eNet server Positioning of the blind/shutter via scene request Positions for sun protection and twilight can be saved...
  • Page 3 eNet radio blinds actuator 1-gang mini Figure 2: Connection example Connect load as shown in the connection example (figure 2). Insert the actuator in the appliance box in such a way that the Prog button and status LED are visible. Figure 3: Operating mode switch Switch position Function...
  • Page 4 eNet radio blinds actuator 1-gang mini i In installation positions that are not easily accessible, turn the operating mode switch to position PC after commissioning and performing a function test. Subsequent changes to the device settings can thus be carried out with the aid of the eNet Server without involving excessive installation work.
  • Page 5 eNet radio blinds actuator 1-gang mini The blind/shutter starts. The status LED flashes after 4 seconds and the blind/shutter stops. The actuator is in programming mode for approx. 1 minute. Switch radio transmitter to programming mode (see radio transmitter instructions). Trigger telegram on the radio transmitter.
  • Page 6: Parameter List

    eNet radio blinds actuator 1-gang mini Dimensions Ø×H 53×28 mm Radio frequency 868.0 ... 868.6 MHz Transmission capacity max. 20 mW Transmitting range in free field typ. 100 m Receiver category 6.2 Parameter list The device parameters can be changed with the eNet server: Device and channels Parameters Setting options, Basic...
  • Page 7 eNet radio blinds actuator 1-gang mini Operating hours up 0...65535 The time is counted during Basic setting: Current value which the load is physically switched on (relay contact closed). This parameter can be reset to "0", for example after exchanging the load. The Reset button is used to reset the meter to "0".
  • Page 8 eNet radio blinds actuator 1-gang mini Invert movement direction On, Off Inverts the activation of the Basic setting: Off relay outputs. During inverted operation, the relay outputs "Up" and "Down" should be activated in reverse. This is required, for example, for controlling skylights.
  • Page 9 eNet radio blinds actuator 1-gang mini Priority, restraint 0...4 Specifies the priority for Basic setting: 2 recalling and removing a scene of type Restraint for the channel. Activate force operation blind 0 ... 100 % Defines the behaviour of the position Basic setting: 0 % output on activating the forced...
  • Page 10 eNet radio blinds actuator 1-gang mini Recall sun protection slat 0 ... 100 % Defines the slat position of the position Basic setting: 100 % output on activating the sun protection. Only visible when the Venetian blind operating mode is set. Deactivate sun protection 0 ...
  • Page 11: Warranty

    Art. No. ENET-SERVER 6.4 Conformity Albrecht Jung GmbH & Co. KG hereby declares that the radio system type Art. No. FMJ50700UP corresponds to the directive 2014/53/EU. You can find the full article number on the device. The complete text of the EU Declaration of Conformity is available under the Internet address: www.jung.de/ce...
