Radio actuator, 2-channel, flush-mounted

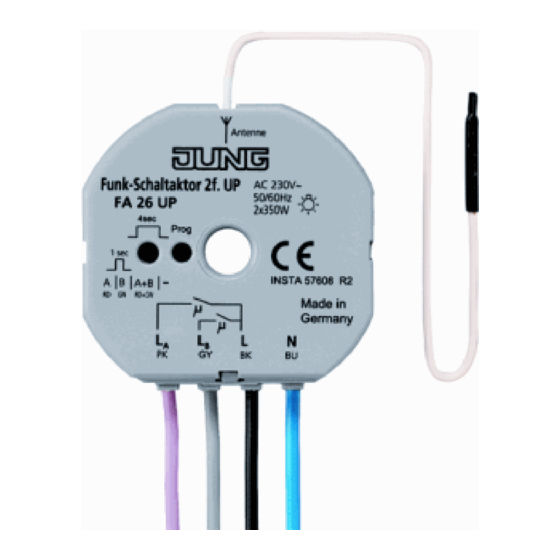

Radio switch actuator, 2-channel, flush-mounted
Art. No. FA 26 UP
Radio push-button actuator, 2-channel, flush-mounted
Art. No. FA 26 UPT
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
Do not use device as a venetian blind actuator. Otherwise the Venetian drive motor may
be destroyed.
The radio communication takes place via a non-exclusively available transmission path,
and is therefore not suitable for safety-related applications, such as emergency stop and
emergency call.
Danger of electric shock. Insulate unused wires.
Danger of electric shock. The antenna has basic insulation. Do not lead it through the
appliance box.
Do not shorten, extend or strip the antenna. Device can be damaged.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components

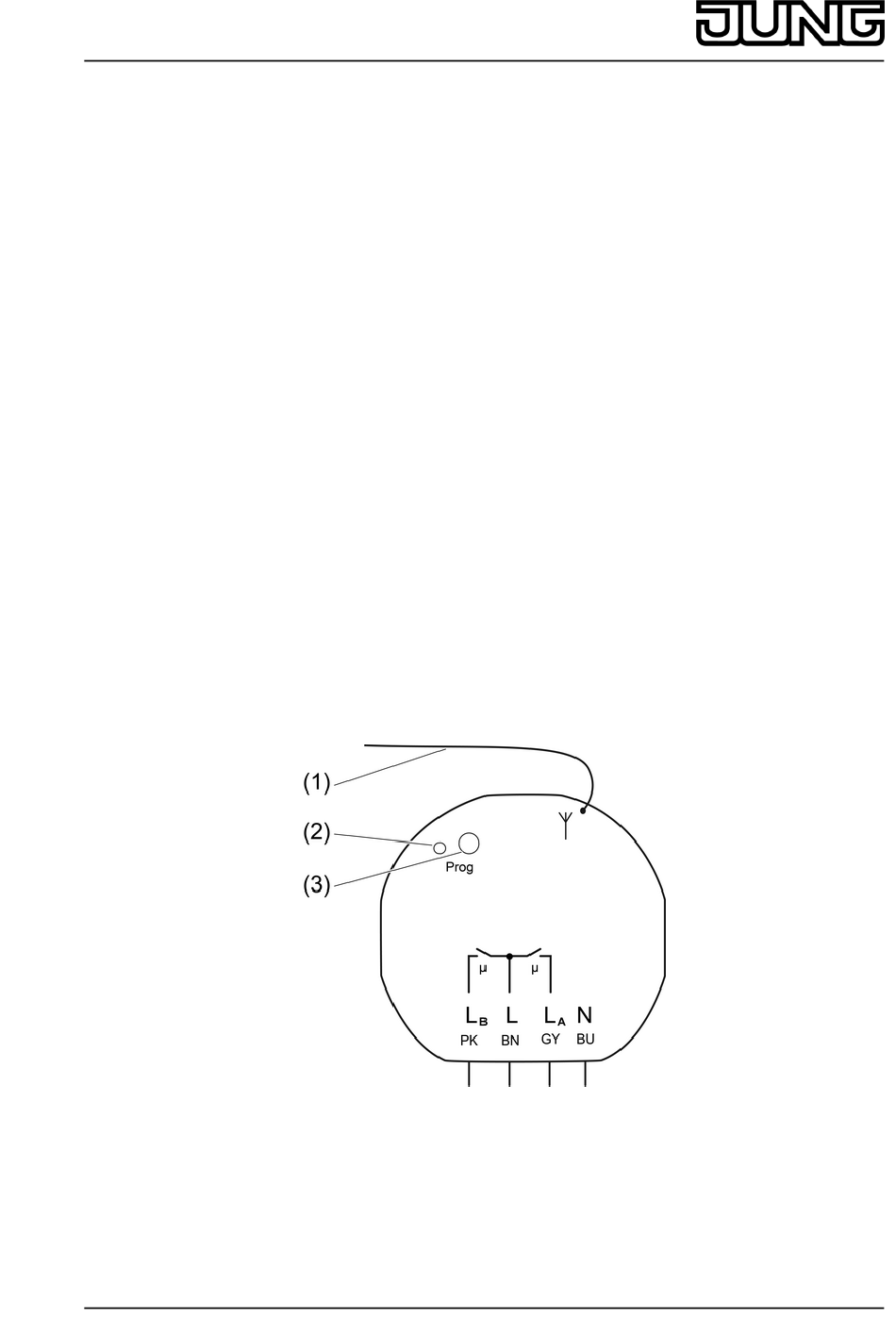

(1) Antenna
(2) LED, two-colour
(3) Programming button
82534823
J:0082534823
Figure 1
1/7
12.02.2013
