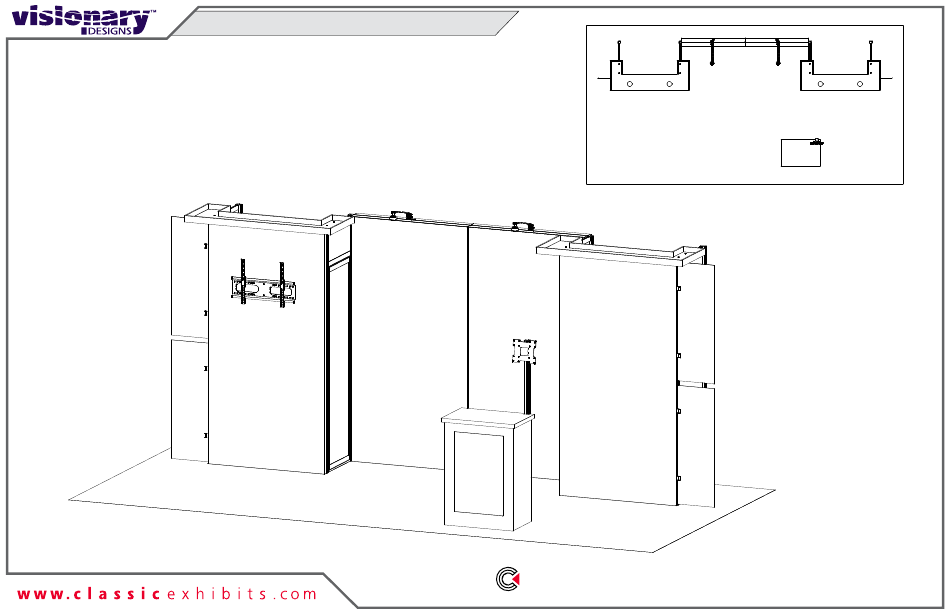

VK-2967 - 10' x 20' Hybrid Inline
10'
20'
Plan View
SETUP INSTRUCTIONS
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the VISIONARY DESIGNS VK-2967 and is the answer not in the manual?

Questions and answers

Summary of Contents for Classic Exhibits VISIONARY DESIGNS VK-2967

  • Page 1 © 2023 Order #XXXXX VK-2967 - 10’ x 20’ Hybrid Inline 10’ 20’ Plan View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
  • Page 2: Plan View

    © 2023 Order #XXXXX Plan View = 1 sq foot...
  • Page 3: General Setup Instructions

    © 2023 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.
  • Page 4 © 2023 Order #XXXXX TSP46 Frame Assembly Slide connector across seam of extrusions. Disassembly Tighten all knobs. Straight Connection 1) Loosen all knobs. When assembling frame, first attach all straight Straight Connector 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
  • Page 5 © 2023 Order #XXXXX EuroLT Assembly Level 1 = Blue Panel Lock Level 2 = When Required Level 3 = Green Level 4 = Black Panel Lock With Right Hand Thumb When Required Using Your Setup Instructions Close to Seam Color Coded Clip Squeeze, Left Hand...
  • Page 6 © 2023 Order #XXXXX SEG Installation Graphic Removal Corner A Corner B Corner D Corner C Step 1 Step 2 Step 3 It is important to first insert To remove the graphic from Insert corner A. Turn edge of Repeat Step 1 for opposite Once all corners are inserted, graphic into each alternate the frame, locate the fabric...
  • Page 7 © 2023 Order #XXXXX Crate Packing CRATE PACKING Crate 1 of 1...
  • Page 8 © 2023 Order #XXXXX Backwall Assembly - Left Section Door Stopper to Vertical Attachment Item Qty. Description 95”h S44 Vertical Extrusion Slide PR37 extrusion into 95”h S44 Vertical Extrusion groove of vertical and tighten set screw to secure in place. 95”h TSP46 Vertical Extrusion 95”h TSP46 Vertical Extrusion 48”w TSP46 Horizontal Extrusion...
  • Page 9 © 2023 Order #XXXXX Backwall Assembly - Left Section (cont’d) Item Qty. Description Canopy Attachment 60”w x 23”d x 2.5”h Ceiling Panel Slide V4 connector into groove of horizontal extrusion; tighten set screw to secure V4 in place. Steps: 1) Attach Ceiling Panel [A] to top of closet assembly, using bolts. See Canopy Attachment detail.
  • Page 10 © 2023 Order #XXXXX Backwall Assembly - Left Section (cont’d) V31 Connection Light Attachment Item Qty. Description Top View 1/1A 48”w CEI152 Horizontal Extrusion Lock Clip into Groove of Slide V31 connector 2/2A 95”h CEI152 Vertical Extrusion Horizontal Extrusion, then into channels of CEI152 Base Plate w/ foot...
  • Page 11 © 2023 Order #XXXXX Backwall Assembly - Right Section V31 Connection Light Attachment Item Qty. Description Top View 1/1A 48”w CEI152 Horizontal Extrusion Lock Clip into Groove of Slide V31 connector 2/2B 95”h CEI152 Vertical Extrusion Horizontal Extrusion, then into channels of CEI152 CEI152 Base Plate w/ foot...
  • Page 12 © 2023 Order #XXXXX Backwall Assembly - Right Section (cont’d) Door Stopper to Vertical Attachment Item Qty. Description 95”h S44 Vertical Extrusion Slide PR37 extrusion into 95”h S44 Vertical Extrusion groove of vertical and tighten set screw to secure in place. 95”h TSP46 Vertical Extrusion 95”h TSP46 Vertical Extrusion 48”w TSP46 Horizontal Extrusion...
  • Page 13 © 2023 Order #XXXXX Backwall Assembly - Right Section (cont’d) Wing Attachment Item Qty. Description Canopy Attachment 60”w x 23”d x 2.5”h Ceiling Panel 1) Slide A10 connector into groove of extrusion. Slide V4 connector into groove 2) Tighten set screw to of horizontal extrusion;...
  • Page 14 © 2023 Order #XXXXX MOD-1527 Kiosk Assembly Item Qty. Description Steps: 23”w x 38”h LT Panel Refer to the LT Panel Assembly general information page. 38”h LT 90° Corner Connector When assembled 14.125”w x 38”h LT Panel 1) Assemble panels & connectors [1] through [10] in numerical order as shown. 38”h LT 90°...
