© 2017
Order #XXXXX

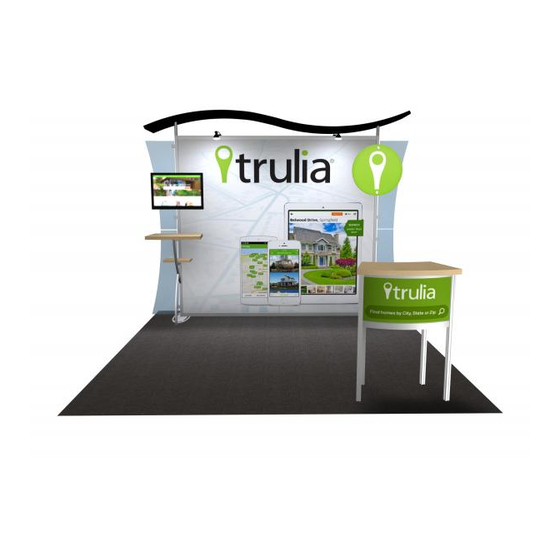

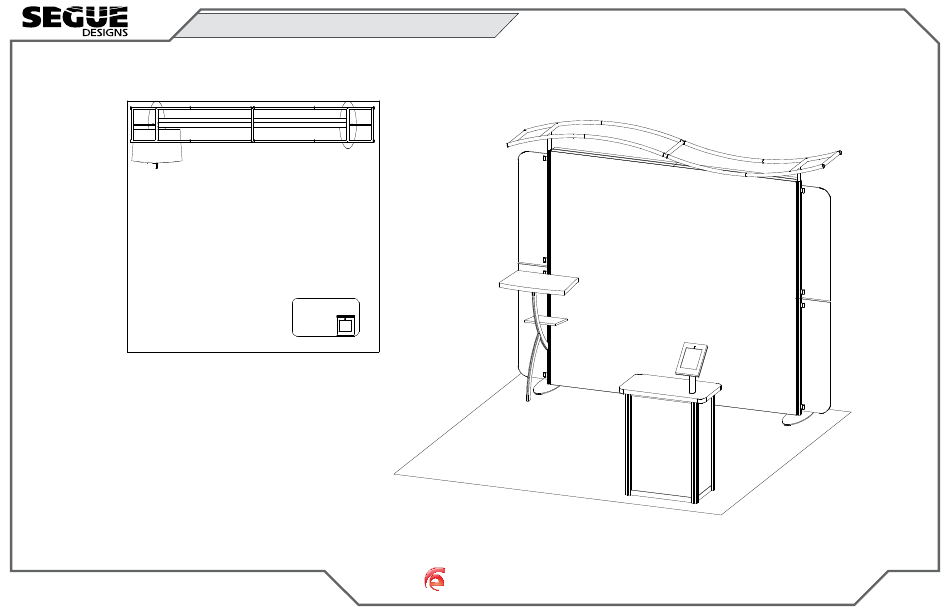

VK-1964 General Layout
10'
10'
5
Plan View
SETUP INSTRUCTIONS
w w w . c l a s s i c e x h i b i t s . c o m
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SEGUE DESIGNS VK-1964 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Classic Exhibits SEGUE DESIGNS VK-1964

Summary of Contents for Classic Exhibits SEGUE DESIGNS VK-1964

  • Page 1 © 2017 Order #XXXXX VK-1964 General Layout 10’ 10’ Plan View SETUP INSTRUCTIONS w w w . c l a s s i c e x h i b i t s . c o m If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...

  • Page 2: General Setup Instructions

    © 2017 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.

  • Page 3: General Information

    © 2017 Order #XXXXX General Information SEG Graphic Installation 1) Locate channels along the edges of extrusions Fold edges over. 2) Insert graphic corners first into channels then center point of graphic into channels. Allows for proportional fit around the perimeter of the extrusion. Insert into 3) Working from center to corner, slide silicon edge groove...
  • Page 4 © 2017 Order #XXXXX General Information Straight Connection CEI-110 Frames Assembly TS RV 4 Insert Bracket Slide connecting Bracket into the Interior extrusion over Straight Bracket Installation Center Slot exposed end (when required) of extrusion. of bracket. 1) Slide TWO-PIECE TS RV 4 straight bracket into Interior Center Slot of extrusion so that two of the...
  • Page 5 © 2017 Order #XXXXX Case Packing Top View of Each Level Graphics Wings Setup Hardware 3A,3 8 8A 2,2A Level 1 Level 2 Level 3 w w w . c l a s s i c e x h i b i t s . c o m Case 1 of 3...
  • Page 6 © 2017 Order #XXXXX Case Packing Top View of Each Level 10/11 Canopy Litureature Holders Pieces Level 1 Level 2 Level 3 w w w . c l a s s i c e x h i b i t s . c o m Case 2 of 3...
  • Page 7 © 2017 Order #XXXXX Case Packing Top View of Each Level Counter Top Side Side Door Infill Panel Panel Assembly Assembly Shelf 7, 7A Level 1 Level 2 Level 3 Level 4 Level 5 w w w . c l a s s i c e x h i b i t s . c o m Case 3 of 3...
  • Page 8 © 2017 Order #XXXXX Backwall Assembly Item Qty. Description Steps: Base Plate 1) Attach Base Plates [1] to Vertical [2] & [3], using bolts. 2/2A 42”w S40 Vertical Extrusion 3) Assemble CEI-110 Extrusions together, with Verticals [8,8A] between. 3/3A 42”h S40 Vertical Extrusion See General Information page CEI-110 Frames Assembly for details.

  • Page 9: Canopy Assembly

    © 2017 Order #XXXXX Canopy Assembly Steps: 1) Connect canopy pieces together as shown. 2) Apply pillow case graphic to assembled canopy. Using Your Setup Instructions The Aero Overhead Sign Setup Instructions are created specifically for your configuration. They include an exploded view of the frame which is sequentially numbered.
  • Page 10 © 2017 Order #XXXXX Backwall Attachments Steps: Item Qty. Description 1) Connect assembled Extrusions [10/11] and Shelf to Vertical [2]. 30.2” Curved Extrusion 2) Connect Support Leg [10A] to Curved Extrusion [10]. Support Leg 3) Attach Flange Plates [11A] to tops of Curved Extrusions [10], using screws. 12.184”w Horizontal Extrusion 4) Attach Counter Tops to [11,11A].

  • Page 11: Back Side

    © 2017 Order #XXXXX MOD-1329 Reception Counter Steps: Item Qty. Description 37.5”h Vertical Extrusion 1) Connect lower horizotnals [5, & 7] between verticals. Counter Top Attachment 37.5”h Vertical Extrusion 2) Place infills between verticals where indicated. 37.5”h Vertical Extrusion 3) Attach door using hinges. 37.5”h Vertical Extrusion Door Attachment detail.
  • Page 12 © 2017 Order #XXXXX MOD-1329 Rotating iPad Mount Rotate Clamshell to turn iPad from portrait Steps: to landscape orientation 1) Attach Mount Plate to Post, using Set Screw. NOTE: Mount Plate must rotate to left and right before installing Clamshell. 2) Attach Post to Counter Top, using bolt from under Counter Top.
