Order #XXXXX -

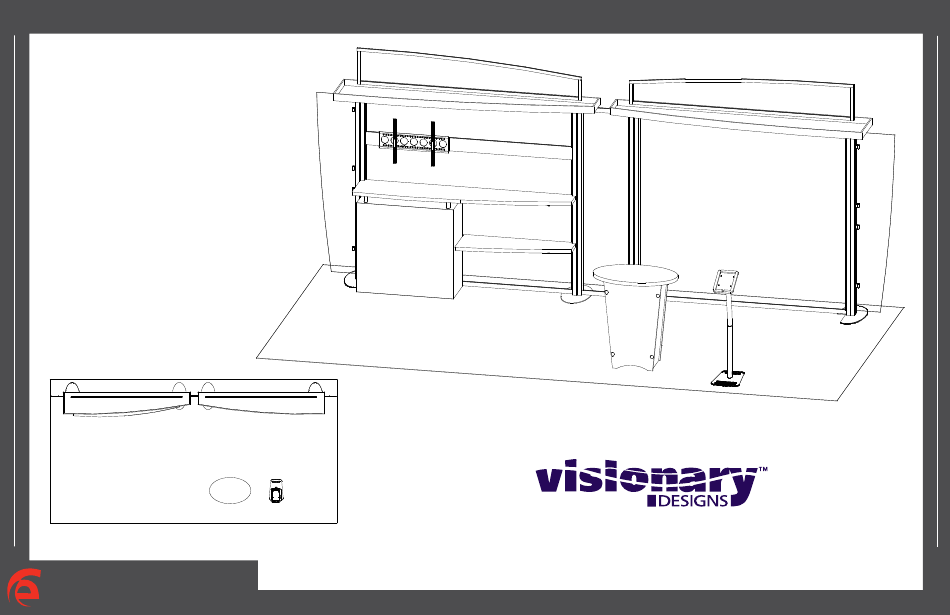

VK-2928 - General Layout
866.652.2100
Perspective View
10'
Plan View
20'
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
© 2015
w w w . c l a s s i c e x h i b i t s . c o m

Advertisement

loading
Need help?

Need help?

Do you have a question about the visionary VK-2928 and is the answer not in the manual?

Questions and answers

Related Manuals for Classic Exhibits visionary VK-2928

Summary of Contents for Classic Exhibits visionary VK-2928

  • Page 1 Order #XXXXX - VK-2928 - General Layout 866.652.2100 Perspective View 10’ Plan View 20’ WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2015 w w w . c l a s s i c e x h i b i t s . c o m...
  • Page 2 Order #XXXXX - General Information 866.652.2100 Using Your Setup Instructions The Visionary Designs Setup Instructions are created specifically for your Detail A configuration. They are laid out sequentially, including an exploded view of the entire display, and then a logical series of detailed steps to assemble the main structure and components.

  • Page 3: Front View

    Step 1 Order #XXXXX - Backwall Assembly 866.652.2100 Steps: Item Qty. Description 1/1a Oval Baseplate with Notch 1) Connect base plate [1a] to vertical extrusion [2]. 80” Q914 Square Vertical Extrusion 2) Connect remaining base plates [1] to vertical FRONT VIEW 80”...
  • Page 4 Step 2 Order #XXXXX - Backwall Counter Assembly 866.652.2100 Steps: Item Qty. Description 1) Connect stand-off barrels to top of assembled kiosk and Large Counter Top set kisok against assembled backwall. Small Counter NOTE: Back outer corner of assembled kiosk will fit within the notched base plate [1a].
  • Page 5 Step 3 Order #XXXXX - Ceiling and Header Assembly 866.652.2100 Item Description 13/13 90” Lower Horizontal Extrusion 14/14 8.75“ Tapered cut Vertical Extrusion 15/15 14” Tapered cut Vertical Extrusion 16/16 93” Curved Horizontal Extrusion Steps: 1) Attach header pieces together as shown. Lock 2) Apply graphic to front of assembled header.
  • Page 6 Step 4 Order #XXXXX - Attachments 866.652.2100 Steps: 1) Connect Ceiling and Header to top of assembled backwall. 2) Attach graphic wings to outer most vertical extrusions. A10 Clip Attachment detail. A10 Clamp Attachment Slide connector on back of A10 clamp into groove of extrusion.
  • Page 7 Step 5 Order #XXXXX - LTK-1001 Pedestal Assembly 866.652.2100 Steps: 1) Use screw caps to secure the front panel and back panel to the side panels. 2) Slide floor into the bottom of the pedestal. The floor will sit on pins set into the side panels. 3) Attach shelf supports with velcro to inside of panel.
  • Page 8 Step 6 Order #XXXXX - MOD-1333 iPad Kiosk Assembly 866.652.2100 Item Qty. Description Steps: Rotate clamshell 1) Attach base [19] to curved vertical [20] using bolts. Base Plate to turn iPad from portrait 2) Slide square plate [21] into vertical [20] and secure with set screw. Formed Vertical Extrusion to landscape orientation NOTE: Square plate [3] must rotate to left and right before installing clamshell...
