© 2016
Order #XXXXX -

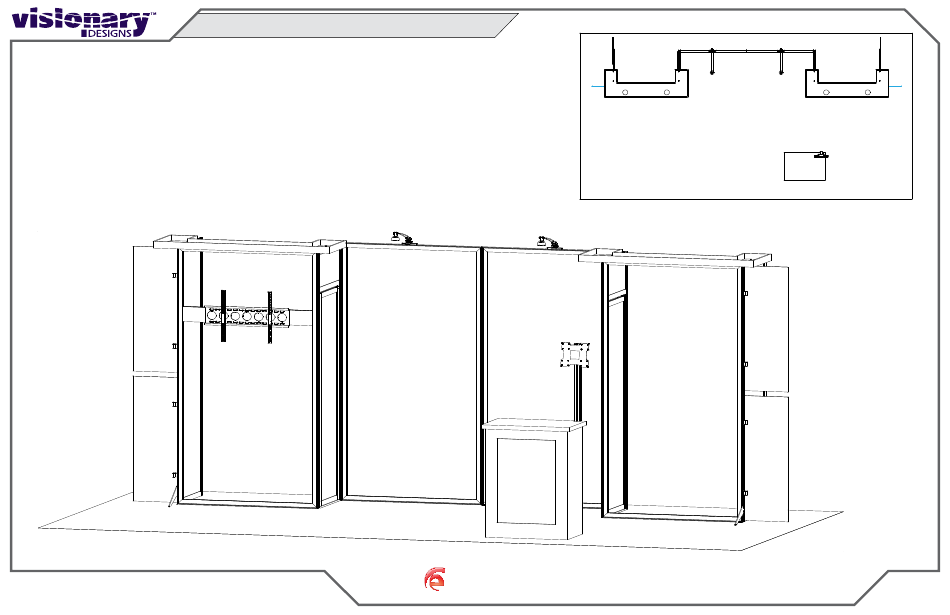

VK-2967 General Layout
10'
Plan View
20'
Perspective View
SETUP INSTRUCTIONS
w w w . c l a s s i c e x h i b i t s . c o m
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com
Advertisement
Related Manuals for Classic Exhibits Visionary Designs VK-2967
Summary of Contents for Classic Exhibits Visionary Designs VK-2967
- Page 1 © 2016 Order #XXXXX - VK-2967 General Layout 10’ Plan View 20’ Perspective View SETUP INSTRUCTIONS w w w . c l a s s i c e x h i b i t s . c o m If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
-
Page 2: General Setup Instructions
© 2016 Order #XXXXX - General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly. - Page 3 © 2016 Order #XXXXX - General Information SEG Graphic Installation � � � � 1) Locate channels along the edges of extrusions Fold edges over. 2) Insert graphic corners first into channels then center point of graphic into channels. Allows for proportional fit around the perimeter of the extrusion.
- Page 4 © 2016 Order #XXXXX - Backwall Assembly Plan View Item Qty. Description GS220 Boomerang Base Plate 2/2A 95”h TSP46 Vertical Extrusion PR37 3/3A 48”w TSP46 Horizontal Extrusion 95”h TSP46 Vertical Extrusion w/ Door Hinge Infill 95”h TSP46 Vertical Extrusion w/ A10 Clips 6/6A 48”w TSP46 Horizontal Extrusion 95”h GS220 Vertical Extrusion w/ Door Stop...
- Page 5 © 2016 Order #XXXXX - Backwall Assembly Cont’d Item Qty. Description Plan View Boomerang Base Plate 2/2A 95”h TSP46 Vertical Extrusion TSP46 3/3A 48”w TSP46 Horizontal Extrusion 95”h TSP46 Vertical Extrusion w/ Door Hinge Plan View 95”h TSP46 Vertical Extrusion w/ A10 Clips Infill GS220 6/6A...
- Page 6 © 2016 Order #XXXXX - Backwall Attachments Steps: Light Attachment 1) Attach ceiling canopy [12] & [12] to the top of assembled booth. Item Qty. Description Use bolts provided. Ceiling Canopy Lock Light Receiving 2) Connect the monitor mount to the mounting plate [10]. Ceiling Canopy Hardware into pill slot Monitor Mount Attachment...
- Page 7 © 2016 Order #XXXXX - MOD-1527 Kiosk Assembly Item Qty. Description Counter Top Attachment Cabinet to Post Attachment 70”h Vertical Extrusion V4 Connector Steps: 1) Attach internal shelf supports using velcro; insert internal shelf into kiosk cabinet. Cabinet 2) Connect vertical extrusion [13] to cabinet body using Backwall standoff caps from the inside of the cabinet.
