Classic Exhibits SEGUE DESIGNS VK-2308 Setup Instructions

Advertisement

© 2020
Order #XXXXX
Item
Qty.
Description
1,2,3,4
1,1,1,1
45" TSP46 Vertical Extrusion
5,6,7,8
1,1,1,1
45" TSP46 Horizontal Extrusion
1,2,3,4
1,1,1,1
45" TSP46 Vertical Extrusion
5,6,7,8
1,1,1,1
45" TSP46 Horizontal Extrusion
Base Plate
9
2
Setups:

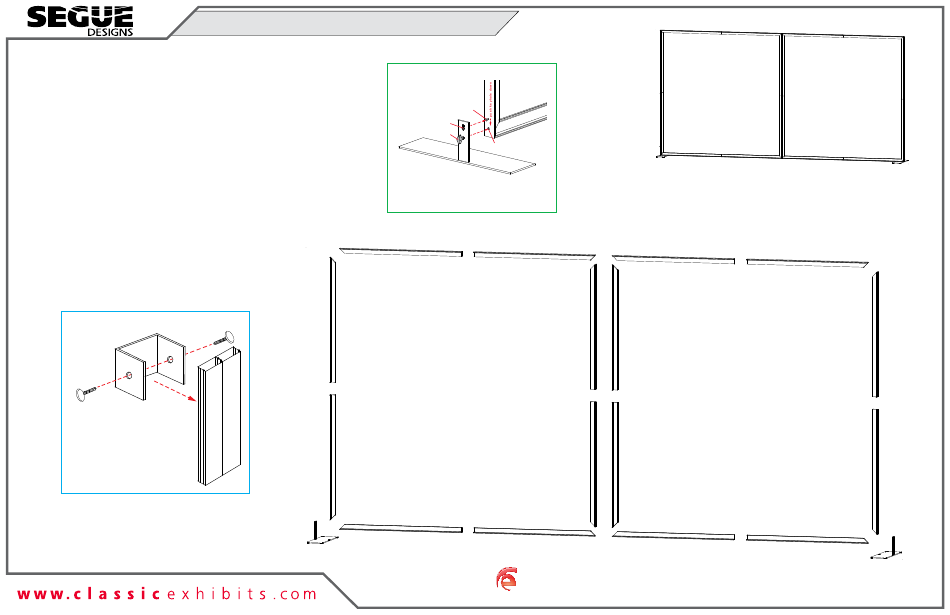

1) Assemble TSP46 frames together, flat on floor.
See TSP46 Frame Assembly sheet.
2) Use C clamp connector to connect assembled
frames together. See

C Clamp Connector

3) Attach base plate [9] to verticals [1] and [3].
See

Base Plate Attachment

detail.
4) Install SEG graphic to assembled frames. See
*
C Clamp Connector
Screw
Connector
Screw
Slide connector over verticals,
then secure with screws.
Keep all screws attached to
connector pieces when
disassembling, to prevent loss.
Modified VK-2308
*
Base Plate
1) Place key hole over fixed bolt on assembled
frame then push down.
2) Turn knob into assembled frame to secure.
detail.
7
2
1
*
5
9
Base Plate Attachment
Assembled
Frame
Fixed
Bolt
Key Hole
Knob
Threaded
Hole
8
*
4
*
3
6
SETUP INSTRUCTIONS
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com
Completed Assembly
7
2
1
5
8
4
3
*
6
9
