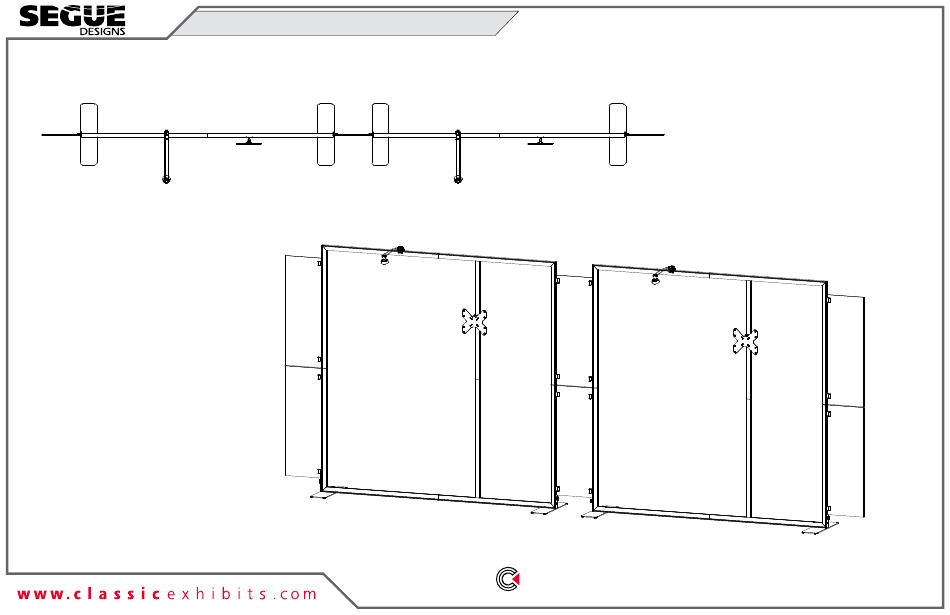

VK-2311 - 10' x 20' Display
Top View
Perspective View
SETUP INSTRUCTIONS
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SEGUE DESIGNS VK-2311 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Classic Exhibits SEGUE DESIGNS VK-2311

  • Page 1 © 2022 REV 8/2022 Order #XXXXX VK-2311 - 10’ x 20’ Display Top View Perspective View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
  • Page 2: General Setup Instructions

    © 2022 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.
  • Page 3 © 2022 Order #XXXXX Tool-less Frame Assembly Slide connector across seam of extrusions. Disassembly Tighten all knobs. Straight Connection 1) Loosen all knobs. When assembling frame, first attach all straight Straight Connector 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
  • Page 4 © 2022 Order #XXXXX SEG Installation Graphic Removal Corner A Corner B Corner D Corner C Step 1 Step 2 Step 3 It is important to first insert To remove the graphic from Insert corner A. Turn edge of Repeat Step 1 for opposite Once all corners are inserted, graphic into each alternate the frame, locate the fabric...
  • Page 5 © 2022 Order #XXXXX Case Packing Top View of Each Level Lights Graphics Setup Hardware w/ Monitor Mount (3) Wings Level 1 (Bottom Level) Level 2 Level 3 Level 4 Case 1 of 2...
  • Page 6 © 2022 Order #XXXXX Case Packing Top View of Each Level Lights Graphics Setup Hardware w/ Monitor Mount (3) Wings Level 1 (Bottom Level) Level 2 Level 3 Level 4 Case 2 of 2...
  • Page 7 © 2022 Order #XXXXX Left Backwall Assembly Item Qty. Description Steps: 1,1A 45” TSP46 Vertical Extrusion w/ Clamps Refer to the Tool-less Frame Assembly general information page. 2,2A 45” TSP46 Vertical Extrusion w/ Clamps 3,3A 45” TSP46 Horizontal Extrusion 1) Assemble vertical extrusions [1-1A], [2-2A], [5-5A] & horizontal 4,4A 45”...
  • Page 8 © 2022 Order #XXXXX Right Backwall Assembly Item Qty. Description Steps: 1,1A 45” TSP46 Vertical Extrusion w/ Clamps Refer to the Tool-less Frame Assembly general information page. 2,2A 45” TSP46 Vertical Extrusion w/ Clamps 3,3A 45” TSP46 Horizontal Extrusion 1) Assemble vertical extrusions [1-1A], [2-2A], [5-5A] & horizontal 4,4A 45”...
  • Page 9 © 2022 Order #XXXXX Backwall Attachments Steps: Refer to the SEG Installation general information page. Connect lights to horizontals [4/4A] 1) Apply SEG graphics to front of frame assemblies. where desired and 2) Attach wings to clamps, as shown. See A10 Clamp Attachment detail.
