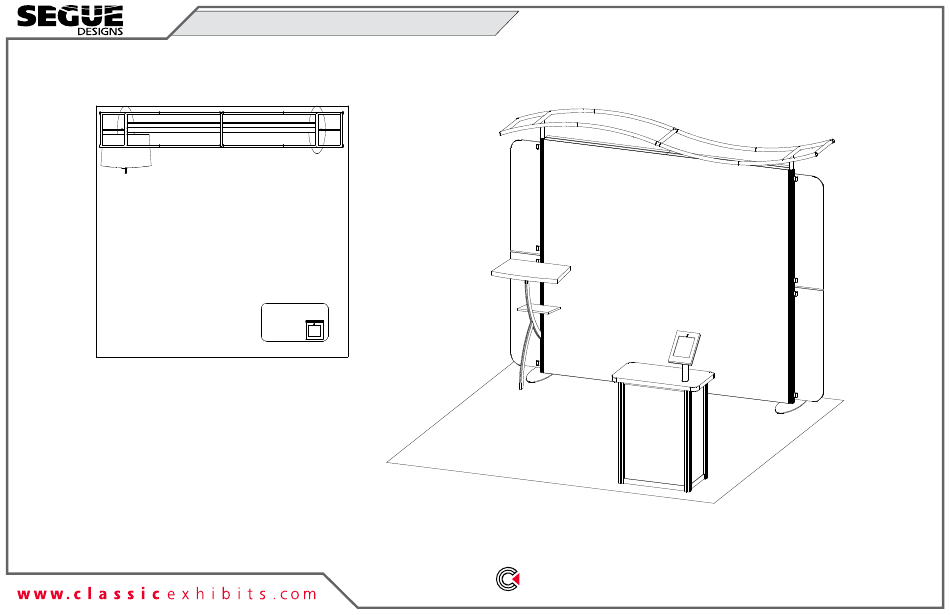

- Page 1 © 2023 Order #XXXXX VK-1964 - 10’ x 10’ Display 10’ 10’ Plan View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
-
Page 2: Plan View
© 2023 Order #XXXXX Plan View = 1 sq foot... -
Page 3: General Setup Instructions
© 2023 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly. - Page 4 © 2023 Order #XXXXX CEI110 Frame Assembly Disassembly Slide both connectors across seam of extrusions. Tighten all knobs. Straight Connection 1) Loosen all knobs. Straight Connector When assembling frame, first attach all straight 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
- Page 5 © 2023 Order #XXXXX SEG Installation Graphic Removal Corner A Corner B Corner D Corner C Step 1 Step 2 Step 3 It is important to first insert To remove the graphic from Insert corner A. Turn edge of Repeat Step 1 for opposite Once all corners are inserted, graphic into each alternate the frame, locate the fabric...
- Page 6 © 2023 Order #XXXXX Case Packing Top View of Each Level Graphics Wings iPad Holders Setup Hardware 3A,3 8 8A 2,2A Level 1 Level 2 Level 3 Case 1 of 3...
- Page 7 © 2023 Order #XXXXX Case Packing Top View of Each Level 10/11 Canopy Pieces Level 1 Level 2 Level 3 Case 2 of 3...
- Page 8 © 2023 Order #XXXXX Case Packing Top View of Each Level Counter Top Side Door Panel Side Assembly Infill Panel Assembly Shelf 6, 6A, 7, 7A SHELF SUPPORTS Level 1 Level 2 Level 3 Level 4 Level 5 Case 3 of 3...
- Page 9 © 2023 Order #XXXXX Backwall Assembly Item Qty. Description Steps: Base Plate 1) Attach Base Plates [1] to Vertical [2] & [3], using bolts. 2/2A 42”w S40 Vertical Extrusion 3) Assemble CEI-110 Extrusions together, with Verticals [8,8A] between. 3/3A 42”h S40 Vertical Extrusion See General Information page CEI-110 Frames Assembly for details.
-
Page 10: Canopy Assembly
© 2023 Order #XXXXX Canopy Assembly Steps: 1) Connect canopy pieces together as shown. 2) Apply pillow case graphic to assembled canopy. Using Your Setup Instructions The Aero Setup Instructions are created specifically for your configuration. The instructions include an exploded view of the frame which is sequentially labeled. -
Page 11: Completed Assembly
© 2023 Order #XXXXX Backwall Attachments Steps: Item Qty. Description 1) Connect assembled Extrusions [10/11] and Shelf to Vertical [2]. 30.2” Curved Extrusion 2) Connect Support Leg [10A] to Curved Extrusion [10]. Support Leg 3) Attach Flange Plates [11A] to tops of Curved Extrusions [10], using screws. 12.184”w Horizontal Extrusion 4) Attach Counter Tops to [11,11A]. -
Page 12: Back Side
© 2023 Order #XXXXX Reception Counter Assembly Counter Top Attachment Item Qty. Description Steps: 37.5”h Vertical Extrusion 1) Connect lower horizotnals [5, & 7] between verticals. 37.5”h Vertical Extrusion 2) Place infills between verticals where indicated. 37.5”h Vertical Extrusion 3) Attach door using hinges. 37.5”h Vertical Extrusion Door Attachment detail. - Page 13 © 2023 Order #XXXXX MOD-1329 Rotating iPad Mount Rotate clamshell to turn iPad from portrait Steps: to landscape orientation. 1) Attach mount plate to post, using set screw. NOTE: Mount plate must rotate to left and right before installing clamshell. 2) Attach post assembly to counter top, using bolt from under counter top.
