HPRT TP80K - 80mm Thermal Receipt Printer Manual

Packing List

Notes:

1. The items in the package are dependent on the actual order.
2. The power cord varies by country or region.
3. Follow the link http://www.hprt.com/Downloads.html and find the product name TP80K, then you can download the Windows Drivers and other items.

Appearance

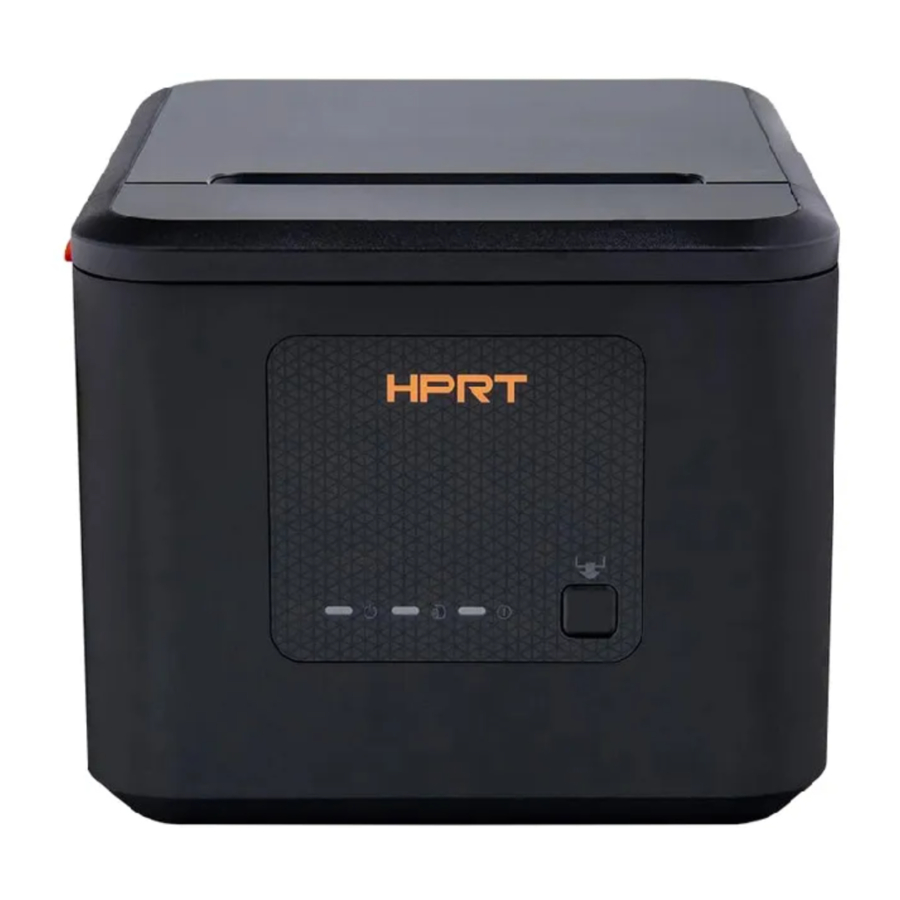

Front & Side View

Back View

Bottom View

Paper Loading

1. Press the cover opening button to open the top cover.

2. Load the paper roll in the correct direction of the paper roll.

3. Pull out some paper, and close the printer cover.

4. Tear the extra paper.

Power Supply

1. Make sure the printer is turned off.
2. Connect the power adapter to the printer.
3. Connect the power adapter to the power cord.
4. Plug the other side of the power cord into the socket outlet.

Note: the power cord varies by country or region.

This is a Class A product. In a domestic environment this product may cause radio interference in which the user may be required to take adequate measures.

Ethernet Setting

1. Connect the printer to router (or master device) through the network cable;
2. The default Ethernet mode is Static IP Mode with IP address "192.168.0.31";
3. Ethernet interface parameters can be set through POS utility or web (Master device and printer are under the same network segment, enter 192.168.0.31 in master device browser);
4. Please refer to User Manual for details.

Xiamen Hanin Electronic Technology Co., Ltd.
ADD: No.96, Rongyuan Road, Tong'an District, Xiamen, China, 361100
E-MAIL: support@hprt.com
WEB: www.hprt.com
