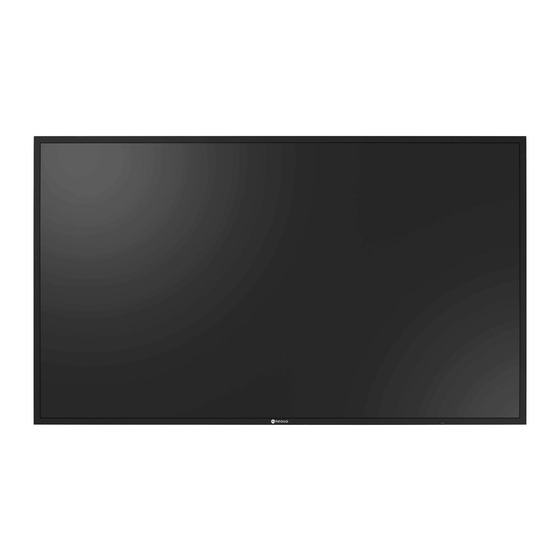

- Page 1 SMQ-4301, SMQ-5501 & SMQ-6501 LED-Backlit Display User Manual www.agneovo.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION ................1 Federal Communications Commission (FCC) Notice (U.S. Only) ............1 CE Declaration of Conformity ........................1 Polish Center for Testing and Certification Notice ..................1 Electric, Magnetic and Electromagnetic Fields (“EMF”) ................2 Information for U.K. only ........................... 3 North Europe (Nordic Countries) Information ................... - Page 3 TABLE OF CONTENTS CHAPTER 5: APPENDIX ................33 5.1 Warning Messages ..........................33 5.2 Supported Resolutions ........................34 5.3 Cleaning ............................. 36 5.4 Troubleshooting ..........................37 CHAPTER 6: SPECIFICATIONS ..............38 6.1 Display Specifications ........................38 6.2 Display Dimensions ..........................39...
-
Page 4: Safety Information
SAFETY INFORMATION Federal Communications Commission (FCC) Notice (U.S. Only) This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 5: Electric, Magnetic And Electromagnetic Fields ("Emf")
SAFETY INFORMATION Wymagania Polskiego Centrum Badañ i Certyfikacji Urz¹dzenie powinno byæ zasilane z gniazda z przy³¹czonym obwodem ochronnym (gniazdo z ko³kiem). Wspó³pracuj¹ce ze sob¹ urz¹dzenia (komputer, monitor, drukarka) powinny byæ zasilane z tego samego Ÿród³a. Instalacja elektryczna pomieszczenia powinna zawieraæ w przewodzie fazowym rezerwow¹ ochronê przed zwarciami, w postaci bezpiecznika o wartoœci znamionowej nie wiêkszej ni¿... -
Page 6: Information For U.k. Only
SAFETY INFORMATION Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED. Important: This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows: Remove fuse cover and fuse. Fit new fuse which should be a BS 1362 5A,A.S.T.A. -
Page 7: North Europe (Nordic Countries) Information
SAFETY INFORMATION How to connect a plug The wires in the mains lead are coloured in accordance with the following code: BLUE - “NEUTRAL” (“N”) BROWN - “LIVE” (“L”) GREEN & YELLOW - “EARTH” (“E”) • The GREEN & YELLOW wire must be connected to the terminal in the plug which is marked with the letter “E”... -
Page 8: End-Of-Life Disposal
SAFETY INFORMATION End-of-Life Disposal Your new Public Information Display contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of. Please find out about the local regulations on how to dispose of your old display from your local dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury. -
Page 9: Turkey Rohs
SAFETY INFORMATION End of Life Directives-Recycling Your new Public Information Display contains several materials that can be recycled for new users. Please dispose of according to all Local, State, and Federal laws. Restriction on Hazardous Substances statement (India) This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule. -
Page 10: Precautions
PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •... -
Page 11: Cautions When Using
PRECAUTIONS Cautions When Using • Use only the power cord supplied with the LCD display. • The power outlet should be installed near the LCD display and Warning: be easily accessible. • If an extension cord is used with the LCD display, ensure that the Unplug the power cord from the power outlet and total current consumption plugged into the power outlet does not... -
Page 12: Notice For The Lcd Display
PRECAUTIONS Notice for the LCD Display • In order to maintain the stable luminous performance, it is recommended to use low brightness setting. • Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD display may decrease with time. -
Page 13: Chapter 1: Product Description
SMQ-4301, SMQ-5501 & SMQ-6501 ♦ For all other regions, apply a Quick Start Guide power cord that conforms to SMQ-4301, SMQ-5501 & SMQ-6501 LED-Backlit Display SMQ-4301/5501/6501_Quick Guide_V010 www.agneovo.com the AC voltage of the power socket and has been approved by and complies with the safety... -
Page 14: Preparing For The Installation
To wall-mount the LCD display, screw the mounting bracket to the ♦ Secure the LCD display on a VESA holes at the rear of the LCD display. solid wall strong enough to bear SMQ-4301 its weight. 400mm ♦ Lay a protective sheet on a... -
Page 15: Vesa Grid
PRODUCT DESCRIPTION SMQ-6501 600mm 400mm 1.4.1 VESA Grid Model Name VESA Grid Note: SMQ-4301 400(W) x 200(H) mm ♦ For the wall-mounting kit, use SMQ-5501 400(W) x 400(H) mm M6 mounting screws (having SMQ-6501 600(W) x 400(H) mm a length 10 mm longer than... -
Page 16: Lcd Display Overview
PRODUCT DESCRIPTION 1.5 LCD Display Overview 1.5.1 Control Panel SMQ-4301/5501 [ ] Input Choose the input source. [▲] Up Move the highlight bar up to select an option or increase the adjustment while OSD menu is on. [▼] Down Move the highlight bar down to select an option or decrease the adjustment while OSD menu is on. -
Page 17: Input/Output Terminals
PRODUCT DESCRIPTION 1.5.2 Input/Output Terminals SMQ-4301/5501 SMQ-6501... - Page 18 PRODUCT DESCRIPTION BNC_OUT For LAN connection with an Ethernet cable. Connect BNC signals output. RS232 AUDIO OUT Connect RS232 input from external equipment. Connect audio signals output (3.5 mm Stereo Audio Jack). HDMI Connect HDMI signals input. USB Port for firmware upgrade. DVI_D Connect DVI signals input.
-
Page 19: Remote Control
PRODUCT DESCRIPTION 1.6 Remote Control POWER Turns the display on or puts the display into standby mode. 1.6.1 General Functions ] MUTE Turns the mute function on/off. [Number] Inputs numbers. ] List No function. [F1] Freeze Freezes or unfreezes the screen image. [SMARTS] Sound Mode Selects the preferred sound mode. -
Page 20: Inserting The Batteries In The Remote Control
PRODUCT DESCRIPTION 1.6.2 Inserting the Batteries in the Remote Control Caution: The remote control is powered by two 1.5V AAA batteries. The incorrect use of batteries can To install or replace batteries: result in leaks or bursting. Be sure to follow these instructions: Press and then slide the cover to open it. -
Page 21: Operating Range Of The Remote Control
PRODUCT DESCRIPTION 1.6.4 Operating Range of the Remote Control Point the top of the remote control toward the display’s remote control sensor (on the right side) when pressing a button. When using the remote control, the distance from the remote control to the sensor on the display should be less than 8m/26ft, and the horizontal and vertical angles should be less than 30˚. -
Page 22: Chapter 2: Making Connections
CHAPTER 2: MAKING CONNECTIONS... -
Page 23: Chapter 3: On Screen Display Menu
CHAPTER 3: ON SCREEN DISPLAY MENU 3.1 Using the OSD Menu Operation Menu Navigation Control Panel Remote Control 1 Press the MENU Display the main menu screen. 1 Press the button. button. HDMI 2 Press the ◄ 2 Press the Picture Mode or ► button to button to Advanced Video... - Page 24 ON SCREEN DISPLAY MENU Operation Menu Navigation Control Panel Remote Control Close the OSD window. Press the Press button button once or the for several times if MENU button for necessary to exit. several times if necessary to exit. When settings are modified, usually all changes are saved when the user does the following: •...
-
Page 25: Osd Menu Tree
ON SCREEN DISPLAY MENU 3.2 OSD Menu Tree HDMI Picture Mode Advanced Video Reset Video Settings Main Menu Submenu Remarks 1. Picture • Picture Mode See page 23. • Advanced Video • Reset Video Setting 2. Sound • Sound Mode See page 26. -
Page 26: Chapter 4: Adjusting The Lcd Display
CHAPTER 4: ADJUSTING THE LCD DISPLAY 4.1 Picture HDMI Picture Mode Advanced Video Reset Video Settings Item Function Range Picture Mode HDMI Picture Mode Picture Mode Standard Advanced Video Brightness Reset Video Settings Contrast Saturation Sharpness Black level Picture Mode: Sets the predefined picture setting. Standard Vivid Soft... - Page 27 ADJUSTING THE LCD DISPLAY Item Function Range Picture Mode Hue: Adjusts the colour balance of red and green 0 to 100 Saturation: Adjust the colour saturation of the picture. 0 to 100 Sharpness: Adjusts the clarity and focus of the screen image. 0 to 100 Black level: Adjusts the black level of the screen image.
- Page 28 ADJUSTING THE LCD DISPLAY Item Function Range Advanced Noise Reduction Off Noise Reduction On Video Adaptive Contrast: Optimizes automatically the contract ratio of the LCD display in dark scenes as well as delivers smoother and more realistic gradients. High Note: Use this function in HDMI source when the signal format is YUV. Gamma: Adjusts the non-linear setting for picture luminance and Native contrast.
-
Page 29: Sound
ADJUSTING THE LCD DISPLAY 4.2 Sound HDMI Sound Mode Balance Surround Internal Speakers Digital Output Audio Delay Audio Source Sound Mute Reset Audio Settings Item Function Range Sound Mode HDMI Standard Sound Mode Sound Mode Balance 120Hz Surround 500Hz Internal Speakers 1.5kHz Digital Output 5kHz... - Page 30 ADJUSTING THE LCD DISPLAY Item Function Range Sound Mute Turns the mute function on/off. Reset Audio Resets all settings in the Sound menu to the factory preset values. Settings...
-
Page 31: Setting
ADJUSTING THE LCD DISPLAY 4.3 Setting HDMI OSD Settings Power Settings Auto Signal Detection HDMI Settings VGA Options Advanced Options Monitor Information Factory Reset Item Function Range OSD Settings Language: Sets the OSD language. English 简体中文 French Español Deutsch 繁體中文 Transparency: Adjusts OSD transparency. - Page 32 ADJUSTING THE LCD DISPLAY Item Function Range Auto Signal Enables or disables the device to detect and display from available video Detection inputs automatically. Auto This function takes place only if there is no signal connected at the input port you designate for auto-detection. Off: Auto signal detection is disabled.
- Page 33 ADJUSTING THE LCD DISPLAY Item Function Range Advanced Key Lock Settings: Enables or disables some or all control panel buttons. Unlock Options Lock All but • Unlock: Unlock all control panel buttons. Power • Lock All but Power: Lock all control panel buttons except for the Key Lock Settings Lock All Power button.
- Page 34 ADJUSTING THE LCD DISPLAY Item Function Range Advanced DVI: Selects the mode to display the DVI signal according to its signal DVI-PC Options format depending on its source device. DVI-HDMI • DVI-PC: Select this option when the source device is a PC. Anti-Burn-in •...
-
Page 35: Network
ADJUSTING THE LCD DISPLAY 4.4 Network HDMI Control Interface Network Settings Monitor ID Reset Network Settings Item Function Range Control Selects the network control port. Interface RS232 Note: If LAN is selected then RS232 is disabled and vice versa. Network Network Config: Configures network settings automatically (DHCP IP) or manually (Static IP). -
Page 36: Chapter 5: Appendix
CHAPTER 5: APPENDIX 5.1 Warning Messages Warning Messages Cause Solution The resolution or the refresh rate of • Change the resolution or the the graphics card of the computer refresh rate of the graphics card. is set too high. The LCD display cannot detect the •... -
Page 37: Supported Resolutions
APPENDIX 5.2 Supported Resolutions Mode Resolution Horizontal Pixel (KHz) Vertical Pixel (Hz) IBM Text 720 x 400 (70) 31.46 70.08 IBM G 640 x 350 (70) 31.46 70.08 IBM G 640 x 400 (70) 31.46 70.08 VESA 640 x 480 (60) 31.46 59.94 640 x 480 (70) - Page 38 Source/timing changing time • Timing change for image stability under 1.0 seconds (without panel blanking). • Power ON picture stability/with AG Neovo logo ≤ 8.0 seconds. • Input source change blanking time (between VGA and DIGITAL source): ≤ 3.0 seconds.
-
Page 39: Cleaning
APPENDIX 5.3 Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Burns or personal injuries may occur if any body parts are brought too close. -
Page 40: Troubleshooting
APPENDIX 5.4 Troubleshooting Symptom Possible Cause Remedy No picture is displayed • The power cord has been 1 Plug in the power cord. disconnected. 2 Make sure the power switch is • The main power switch on switched on. the back of the display is not 3 Connect a signal connection to switched on. -
Page 41: Chapter 6: Specifications
CHAPTER 6: SPECIFICATIONS 6.1 Display Specifications SMQ-4301 SMQ-5501 SMQ-6501 Panel Panel Type LED-Backlit TFT LCD LED-Backlit TFT LCD LED-Backlit TFT LCD (IPS Technology) (IPS Technology) (IPS Technology) Panel Size 43" 54.6" 64.5" Max. Resolution UHD 3840 x 2160 UHD 3840 x 2160... -
Page 42: Display Dimensions
DEPTH MAX. 28mm SMQ-6501 1476.7(Outline dimension) 79.8 23.1 1430.5 23.1 77.9 438.3 438.3 14.8 AG Neovo Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2022 AG Neovo. All rights reserved. SMQ-4301/5501/6501 Eprel registration number: 1160157/1160158/1160159 SM4310/SM5510/SM6510_UM_V010...
