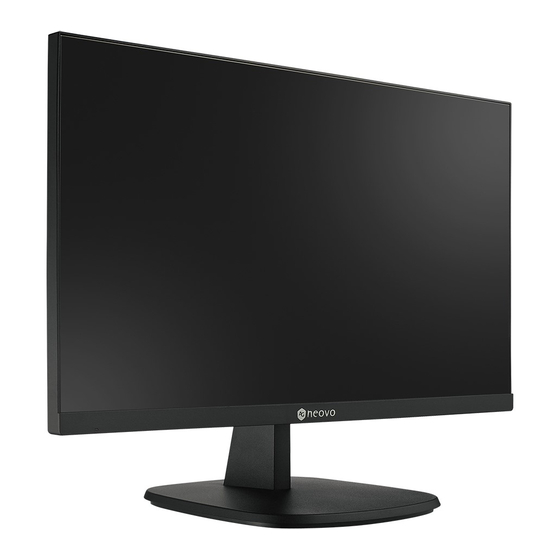

SC-2402 LCD Monitor
User Manual
www.agneovo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC-2402 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AG Neovo SC-2402

  • Page 1 SC-2402 LCD Monitor User Manual www.agneovo.com...
  • Page 2: Table Of Contents

    Contents TABLE OF CONTENTS SAFETY INFORMATION Federal Communications Commission (FCC) Notice (U.S. Only) ..............4 WEEE ................................4 PRECAUTIONS Notice ................................5 Cautions When Setting Up ........................... 5 Cautions When Using ........................... 6 Cleaning and Maintenance ........................... 7 Notice for the LCD Monitor ........................... 7 CHAPTER 1: PRODUCT DESCRIPTION 1.1 Package Contents ..........................
  • Page 3 TABLE OF CONTENTS 6.3 Troubleshooting ............................ 36 6.4 Transporting the LCD Monitor ......................37 CHAPTER 7: SPECIFICATIONS 7.1 Display Specifications .......................... 39 7.2 Display Dimensions ..........................40...
  • Page 4: Safety Information

    Safety Information SAFETY INFORMATION Federal Communications Commission (FCC) Notice (U.S. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 5: Precautions

    Precautions PRECAUTIONS PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •...
  • Page 6: Cautions When Using

    Users who have already mounted the monitor on the ceiling or any other horizontal surface overhead are strongly advised to contact AG Neovo for consultations and solutions to help ensure a most pleasurable and fulfilling monitor experience.
  • Page 7: Cleaning And Maintenance

    PRECAUTIONS Cleaning and Maintenance Do not attempt to service the LCD monitor yourself, refer to qualified service personnel. Opening or removing the covers may expose you to dangerous voltage or other risks. Notice for the LCD Monitor In order to maintain the stable luminous performance, it is recommended to use low brightness setting. Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD monitor may decrease with time.
  • Page 8: Chapter 1: Product Description

    Stand LCD Monitor Quick Start Guide VGA Cable Power Cord Quick Start Guide SC-2402 LCD Monitor SC-2402_Quick Guide_V010 www.agneovo.com Audio Cable Note: • Use only the supplied power cord. • The above pictures are for reference only. Actual items may vary upon shipment.
  • Page 9: Installation

    PRODUCT DESCRIPTION 1.2 Installation 1.2.1 Installing the Stand 1. Pinch the latches on the base and then attach the base to the arm. Ensure the base latches are secured to the slots on the arm. 2. Place the LCD monitor with the screen side down on a cushioned surface. 3.
  • Page 10: Adjusting The Tilt

    Note: Take measures to prevent the LCD monitor from falling down and lessen possible injury and damage to the monitor in case of earthquakes or other disasters. • Use only the 100 x 100 mm wall mount kit recommended by AG Neovo. All AG Neovo wall mount kits comply with VESA standard.
  • Page 11: Overview

    PRODUCT DESCRIPTION 1.3 Overview 1.3.1 Front View Power status indicator: Indicates the operating status of the monitor: • Blue – Power On mode. • Amber – Standby mode. • LED off – Off mode.
  • Page 12: Control Panel

    PRODUCT DESCRIPTION 1.3.2 Control Panel CVBS 1: MENU OSD menu ON/OFF. UP ( ): Hot Key: Source Key When OSD menu is ON, navigate through adjustment icons or adjust a function. DOWN ( ): Hot Key: Volume Key • When OSD menu is ON, navigate through adjustment icons or adjust a function. •...
  • Page 13: Rear View

    PRODUCT DESCRIPTION 1.3.3 Rear View CVBS AUDIO IN HDMI CVBS AC power input. AUDIO IN: Connect to audio input source (3.5 mm Stereo Audio Jack). COMPOSITE (CVBS) OUT: Connect Composite (CVBS) signals output. COMPOSITE (CVBS) IN: Connect Composite (CVBS) signals input. HDMI IN: Connect HDMI signals input.
  • Page 14: Chapter 2: Making Connections

    Chapter 2: Making Connections CHAPTER 2: MAKING CONNECTIONS CAUTION: Make sure that the LCD monitor is not connected to the power outlet before making any connections. Connecting cables while the power is ON may cause possible electric shock or personal injury. 2.1 Connecting the AC Power 1.
  • Page 15: Connecting Input Source Signals

    MAKING CONNECTIONS 2.2 Connecting Input Source Signals Input source signals can be connected with either of the following cables: • HDMI Connect one end of an HDMI cable to the HDMI connector of the LCD monitor and the other end to the HDMI connector of the computer. •...
  • Page 16: Connecting Audio Devices

    MAKING CONNECTIONS 2.3 Connecting Audio Devices Connect one end of an audio cable to the AUDIO IN connector of the LCD monitor and the other end to the AUDIO OUT connector of the computer. AUDIO IN AUDIO...
  • Page 17: Connecting A Video Device

    MAKING CONNECTIONS 2.4 Connecting a Video Device • CVBS OUT Connect one end of a composite cable to the CVBS OUT connector of the LCD monitor and the other end to the CVBS IN connector of the external display. • CVBS IN Connect one end of a composite cable to the CVBS IN connector of the LCD monitor and the other end to the CVBS OUT port of the video device.
  • Page 18: Chapter 3: Using The Lcd Monitor

    Chapter 3: Using the LCD Monitor CHAPTER 3: USING THE LCD MONITOR 3.1 Turning on the Power 1. Plug the power cord to a power outlet or power supply. 2. Press the key on the control panel Power Key When the LCD monitor is turned on, press the key to turn off the LCD monitor.
  • Page 19: Selecting A Source

    USING THE LCD MONITOR The following menu appears on the screen: VIDEO PICTURE MODE STANDARD BRIGHTNESS CONTRAST BLACK LEVEL SATURATION SHARPNESS GAMMA COLOUR TEMPERATURE NEUTRAL ADVANCED CONTROL 3.3 Selecting a Source Press the key to call out the source selection menu. INPUT SOURCE CVBS HDMI...
  • Page 20: Adjusting The Volume

    USING THE LCD MONITOR 3.4 Adjusting the Volume Press the key to call out the volume bar. DOWN Key The following menu appears on the screen: Press the key to adjust volume. Note: During volume or menu setting adjustment, press and hold the key to change the values continuously.
  • Page 21: Locking The Control Keys

    USING THE LCD MONITOR The following message appears on the screen: AUTO ADJUSTING... During the auto adjustment, the screen will slightly shake for a few seconds. The screen adjustment is complete when the AUTO ADJUSTING message disappears from the screen. Note: It is recommended to use the auto adjustment function when using the LCD monitor for the first time or after a resolution change.
  • Page 22: Chapter 4: On Screen Display Menu

    Chapter 4: On Screen Display Menu CHAPTER 4: ON SCREEN DISPLAY MENU 4.1 Using the OSD Menu Menu Navigation Operation Display the main menu screen. Press 1 on the control panel. VIDEO PICTURE MODE STANDARD BRIGHTNESS CONTRAST BLACK LEVEL SATURATION SHARPNESS GAMMA COLOUR TEMPERATURE...
  • Page 23: Osd Menu Tree

    ON SCREEN DISPLAY MENU 4.2 OSD Menu Tree Main Menu Submenu Reference VIDEO PICTURE MODE Refer to page 25. BRIGHTNESS CONTRAST BLACK LEVEL SATURATION TINT SHARPNESS GAMMA COLOUR TEMPERATURE ADVANCED CONTROL AUTO ADJUST AUTO COLOUR AUDIO SOUND MODE Refer to page 29. BALANCE VIRTUAL SURROUND AUTO VOLUME...
  • Page 24 ON SCREEN DISPLAY MENU Note: Availability of some menu items depend on the input source signal. If the menu is not available, it is not visible or disabled and greyed out.
  • Page 25: Chapter 5: Adjusting The Lcd Monitor

    Chapter 5: Adjusting the LCD Monitor CHAPTER 5: ADJUSTING THE LCD MONITOR 5.1 VIDEO Menu 1. Press 1 on the control panel to call out the OSD window. 2. Press to select and then press 2 to enter the VIDEO menu. VIDEO PICTURE MODE STANDARD...
  • Page 26 ADJUSTING THE LCD MONITOR Item Function Operation Range SATURATION Adjusts the colour saturation. 0 to 100 Press to adjust the value. Note: This menu item is only available for HDMI and CVBS sources. TINT Adjusts the colour tint. 0 to 100 Note: This menu item is only available for CVBS source.
  • Page 27 ADJUSTING THE LCD MONITOR Item Function Operation Range ADVANCED Configures advanced control settings. Press 2. CONTROL • “NOISE REDUCTION” - Reduces 1 Press the noise in the picture due to poor 2 Press 2 (repeatedly) MIDDLE reception or poor picture quality. to select the setting.
  • Page 28 ADJUSTING THE LCD MONITOR Item Function Operation Range AUTO ADJUST • “H.POSITION (Horizontal Position)” - 0 to 100 1 Press Moves the screen image to the left or 2 Press 2. .POS, V.POS, PHASE, CLOCK right. 3 Press to adjust •...
  • Page 29: Audio Menu

    ADJUSTING THE LCD MONITOR 5.2 AUDIO Menu 1. Press 1 on the control panel to call out the OSD window. 2. Press to select and then press 2 to enter the AUDIO menu. AUDIO SOUND MODE USER BALANCE BASS TREBLE VIRTUAL SURROUND AUTO VOLUME 3.
  • Page 30: Setting Menu

    ADJUSTING THE LCD MONITOR 5.3 SETTING Menu 1. Press 1 on the control panel to call out the OSD window. 2. Press to select and then press 2 to enter the SETTING menu. SETTING LANGUAGE English BACKLIGHT OSD TIMER 30SEC OSD TRANSPARENCY STANDBY SOURCE DETECT...
  • Page 31 ADJUSTING THE LCD MONITOR Item Function Operation Range STANDBY Enables or disables standby mode. Press 2 (repeatedly) to select the setting. Note: The amount of time for the display to enter standby varies depending on the “SOURCE DETECT” setting. If the “SOURCE DETECT”...
  • Page 32 ADJUSTING THE LCD MONITOR Item Function Operation Range ANTI-BURN-IN Protects the display from “burn-in” or 1 Press “afterimage” symptoms when the display 2 Press 2 to enter the has not being used for a period of time. submenu. SETTING ANTI-BURN-IN ENABLE INTERVAL(HOURS) 4 HOURS...
  • Page 33: Info Menu

    1. Press 1 on the control panel to call out the OSD window. 2. Press to select and then press 2 to enter the INFORMATION menu. INFORMATION INPUT: HDMI RESOLUTION: 1280x720 HORIZONTAL FREQ: 45.6KHz VERTICAL FREQ: 59.9Hz F/W VERSION: SW:SC-2402 V1.0 3. Review LCD monitor information.
  • Page 34: Chapter 6: Appendix

    Chapter 6: Appendix CHAPTER 6: APPENDIX 6.1 Warning Messages When any of these warning messages appear, check the following items. Warning Message Cause Solution The resolution or the refresh rate of √ Change the resolution or the INVALID FORMAT the graphics card of the computer refresh rate of the graphics card.
  • Page 35: Timing

    CHAPTER 6: APPENDIX 6.2 Timing HDMI 720 x 400p @ 70 Hz 720 x 400p @ 70 Hz 1920 x 1080p at 50 Hz 640 x 480p @ 60 Hz 640 x 480p @ 60 Hz 1920 x 1080p at 60 Hz 640 x 480p @ 72 Hz 640 x 480p @ 72 Hz 1920 x 1080i at 50 Hz...
  • Page 36: Troubleshooting

    APPENDIX 6.3 Troubleshooting Problems Possible Cause and Solution No picture. • Check if the LCD monitor is turned ON. • Check if the power cord is properly connected to the LCD monitor. • LED indicator is OFF. • Check if the power cord is plugged into the power outlet. •...
  • Page 37: Transporting The Lcd Monitor

    APPENDIX 6.4 Transporting the LCD Monitor To transport the LCD monitor for repair or shipment, place the monitor in its original packaging box. 1. Remove the base stand. Press on the release latch and detach the base stand from the LCD monitor. Release latch 2.
  • Page 38 APPENDIX 3. Place the lower foam cushion inside the box. 4. Place the LCD monitor down in the box. 5. Place the upper foam cushion on the top of the LCD monitor. 6. Place the accessories on the designated area (if necessary). 7.
  • Page 39: Chapter 7: Specifications

    Chapter 7: Specifications CHAPTER 7: SPECIFICATIONS 7.1 Display Specifications SC-2402 Panel Panel Type LED-Backlit TFT LCD (IPS Technology) Panel Size 23.8” Max. Resolution FHD 1920 x 1080 Pixel Pitch 0.275 mm Brightness 250 cd/m Contrast Ratio 20,000,000:1 (DCR) Viewing Angle (H/V) 178°/178°...
  • Page 40: Display Dimensions

    7.2 Display Dimensions 41.8 540.1 533.4 14.9 M4*P0.7*L10(SCREW HOLE "A") 226.5 226.4 AG Neovo Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2021 AG Neovo. All rights reserved. SC2402_UM_V010 SC-2402 Eprel registration number: 706580...
