AG Neovo SC Series User Manual

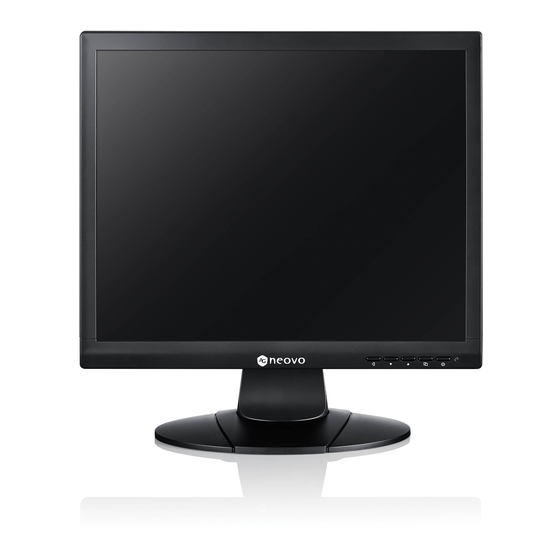

Sc series security led-backlit display
Hide thumbs Also See for SC Series:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AG Neovo SC Series

Summary of Contents for AG Neovo SC Series

  • Page 2: Table Of Contents

    TABLE OF CONTENTS FCC information ---------------------------------------------------------------------- 3 CE information ------------------------------------------------------------------------ 3 Safety Precautions ------------------------------------------------------------------- 3 Scope -------------------------------------------------------------------------------------- 5 Functional specification ------------------------------------------------------------- 5 Controls and indicators -------------------------------------------------------------- 7 OSD Menu --------------------------------------------------------------------------------10 Regulatory Agency ------------------------------------------------------------------- 24 Mechanical ----------------------------------------------------------------------------- 25...

  • Page 3: Fcc Information

    FCC INFORMATION This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 4 8. Route power cords so that they cannot be walked upon or tripped over. Do not allow anything to rest on the power cord. 9. Do not install monitor in wet areas, or where it may be exposed to rain or water. Do not spill liquid of any kind on the unit.

  • Page 5: Scope

    1. Scope This specification is used to define the performance of SC-17P, 19P & SC-22 series color TFT LCD monitor. This system also supports both video input and PC input. In video input mode, the system can automatically detect the NTSC signal and PAL signal. In PC mode, this system can support up to 1920 x 1080 VESA standard.
  • Page 6 2.5 Environmental Temperature Operating: 0 C to +40 Storage: -20 C to +60 Humidity Operating: 10% to 85% (non-condensing) Storage: 10% to 95% (non-condensing) 2.6 EDID This series of displays support EDID, but does not support DDC2B function. 2.7 Connectors D C B A.

  • Page 7: Controls And Indicators

    3. Controls and indicators SC-17P/SC-19P MONITOR A. “ ”Source button Press the button to show source menu. Select DHMI, S-Video, VGA and VIDEO input signal B. “ ”Down buttons Press the buttons to scrolling the cursor to desired function. Press the buttons to decrease the value of selected function in sub OSD menu. C.
  • Page 8 D. “ ”Menu button Press the button to show the OSD main menu. As a confirmation key during the OSD operation. E. “ ” Power button Press the button to turn ON or turn OFF the monitor F. POWER LED Indication Green - Power on LED light off - Power off Flash Green - Sleep mode (PC mode only)
  • Page 9 C. “ ”Down button Press the buttons to scrolling the cursor to desired function. D. “ ”Volume+ buttons Press the buttons to increase volume Press the buttons to increase the value of selected function in sub OSD menu. E. “ ”Volume- button Press the buttons to decrease volume Press the buttons to decrease the value of selected function in sub OSD menu.

  • Page 10: Osd Menu

    4. OSD Menu Hot key ： ： ： ： Quick adjust keys from front panel hot keys： ： ： ： VOLUME： SC-17P & SC-19P: Press button to select the function and press buttons to adjust the volume , then press to exit OSD menu.
  • Page 11 VGA & HDMI mode ： ： ： ： OSD Menu structure： ： ： ： to select the VGA, HDMI, CVBS, or S-VIDEO, the menu structure within each varies, refer to sections below on how to set-up each option. VGA / HDMI mode： ： ： ： Press to bring up the MAIN MENU Page.
  • Page 12 MAIN ADJUST： ： ： ： 1. Press to select an icon. 2. Press to select item, 3. SC-17P & SC-19P: Press to adjust the value SC-22: Press to adjust the value 4. Press to return VIVID MODE：Select the VIVID MODE (0~3 and USER) USER, 0: TEXT, 1: PHOTO, 2: MOVIE, 3: GAME BRIGHTNESS：Adjust the brightness value CONTRAST：Adjust the contrast value...
  • Page 13 COLOR ADJUST： ： ： ： Set the color temperature of the LCD monitor for the CIE coordinate 9300˚k or 6500˚k or USER MODE 1. Press to select an icon 2. Press to select adjust item, 3. SC-17P & SC-19P: Press to adjust the value SC-22: Press to adjust the value...
  • Page 14 IMAGE ADJUST (VGA ONLY)： ： ： ： 1. Press to select an icon 2. Press to select adjust item 3. SC-17P & SC-19P: Press to adjust the value SC-22: Press to adjust the value 4. Press to return AUTO ADJUST：Press to auto adjust the H.
  • Page 15 INFORMATION： ： ： ： Press to get the VGA timing information LANGUAGE： ： ： ： Press to enter the sub-menu 1. Press to select language 2. Press to enter...
  • Page 16 SETUP MENU： ： ： ： 1. Press to select an icon 2. Press to select adjust item 3. SC-17P & SC-19P: Press to adjust the value SC-22: Press to adjust the value 4. Press to return OSD TIMEOUT：Adjust the OSD Show time (5 ~120 sec) GREEN MODE：Off or On (5 min~10 min) OFF –...
  • Page 17 AUTO SHIFT：Adjust AUTO SHIFT ON/OFF OFF – No Function ON – Every one hour there will one scan line from top to bottom ( Every 1 second down one scan line) to prevent panel sticking. Anti-Burn-in scan line EXIT：Press to return to the main menu RECALL：...

  • Page 18: Video Mode

    Video mode ： ： ： ： Press to bring up the MAIN MENU Page. The following page will appear Press to select an icon, then Press to change the values in the sub menu. MAIN ADJUST： ： ： ： 1. Press to select an icon 2.
  • Page 19 VIVID MODE：Select the VIVID MODE (0~3 and USER) USER, 0: TEXT, 1: PHOTO, 2: MOVIE, 3: GAME BRIGHTNESS：Adjust the brightness value. CONTRAST：Adjust the contrast value. SHARPNESS：Adjust Image sharp. SATURATION：Adjust Image saturation. TINT：Adjust Image tint. (NTSC only). VOLUME：Adjust the volume . EXIT：Press to return to the main menu.
  • Page 20 COLOR ADJUST： ： ： ： Set the color temperature of the LCD monitor for the CIE coordinate 9300˚k or 6500˚k or USER MODE 1. Press to select an icon 2. Press to select adjust item, 3. SC-17P & SC-19P: Press to adjust the value SC-22: Press to adjust the value...
  • Page 21 SCAN SETTING： ： ： ： 1. Press to select the sub-menu 2. SC-17P & SC-19P: Press to select Scan Setting state. SC-22: Press to select Scan Setting state. 3. Press to return INFORMATION： ： ： ： Press to get the timing information LANGUAGE：...
  • Page 22 SETUP MENU： ： ： ： 1. Press to select an icon 2. Press to select adjust item 3. SC-17P & SC-19P: Press to adjust the value SC-22: Press to adjust the value 4. Press to return OSD TIMEOUT：Adjust the OSD Show time (5 ~120 sec) GREEN MODE：Off or On (5 min~10 min) OFF –...
  • Page 23 EXIT：Press to return to the main menu. RECALL： ： ： ： Brightness, Contrast, Sharpness, Saturation, Tint, Volume, Vivid Mode, OSD Timeout, Green Mode, Auto Shift return to default Value.

  • Page 24: Regulatory Agency

    5. Regulatory Agency 5.1 Safety Approvals This series design shall meet the standards of the following domestic and foreign agencies: CE LVD : EN60950 5.2 EMI/EMS Emission Approvals This series design shall meet following EMI/EMS specifications: FCC Compliance: FCC Rules and Regulations, Part 15, subpart B, Class B. CE COMPLIANCE: EN55022 class B, EN55024, EN50130-4...

  • Page 25: Mechanical

    6. Mechanical 6.1 Cabinet Material: Plastic Finish: Black 6.2 Dimensions SC-17P & SC-19P Monitor SC-22 Monitor Model SC-17P SC-19P SC-22 Unit: mm...
  • Page 26 6.3 Packaging Dimensions WxHxD mm SC-17P: 450x467x138mm SC-19P: 464x585x121mm SC-22: 565x420x114mm Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan.

This manual is also suitable for:

Sc-17pSc-19pSc-22
