Summary of Contents for AG Neovo SX-17P

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety Information FCC Declaimers ............................4 WEEE ............................... 5 Precautions Notice ............................... 6 Cautions When Setting Up ........................6 Cautions When Using ..........................7 Cleaning and Maintenance ........................7 Notice for the LCD Display ........................8 Chapter 1: Product Description 1.1 Package Contents ..........................
  • Page 3 Chapter 6: Appendix 6.1 Warning Messages ..........................41 6.2 Troubleshooting ..........................42 6.3 Transporting the LCD Display ......................43 Chapter 7: Specifications 7.1 Display Specifications ........................44 7.2 Display Dimensions ..........................45 7.2.1 SX-17P Dimensions ........................ 45 7.2.2 SX-19P Dimensions ........................ 45...
  • Page 4: Safety Information

    SAFETY INFORMATION This FCC Class-B compliant digital device complies with the Interference-Causing Equipment Regulations of Canada. FCC Declaimers This device complies with Section 15 of the FCC listing. The operation procedures must meet the following conditions: (1) the device must not cause any damaging interference; and (2) this device must accept any received interference, including any unpredictable interference that may possibly occur.
  • Page 5: Weee

    SAFETY INFORMATION WEEE Information for users applicable in European Union countries. The symbol on the product or its packaging signifies that this product has to be disposed separately from ordinary household wastes at its end of life. Please kindly be aware that this is your responsibility to dispose electronic equipment at recycling centers so as to help conserve natural resources.
  • Page 6: Precautions

    PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •...
  • Page 7: Cautions When Using

    AG Neovo for consultations and solutions to help ensure a most pleasurable and fulfilling display experience.
  • Page 8: Notice For The Lcd Display

    PRECAUTIONS Notice for the LCD Display In order to maintain the stable luminous performance, it is recommended to use low brightness setting. Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD display may decrease with time.
  • Page 9: Chapter 1: Product Description

    CHAPTER 1: PRODUCT DESCRIPTION 1.1 Package Contents When unpacking, check if the following items are included in the package. If any of them is missing or damaged, contact your dealer. LCD Display User Manual Wire hook Note: Must use only the supplied power adapter: ♦...
  • Page 10: Wall Mounting Installation Preparation

    ♦ Use only the 75 x 75 mm and LCD display. 100 x 100 mm wall mount kit recommended by AG Neovo. Detach the base stand. ♦ Secure the LCD display on a solid wall strong enough to bear...
  • Page 11: Lcd Display Overview

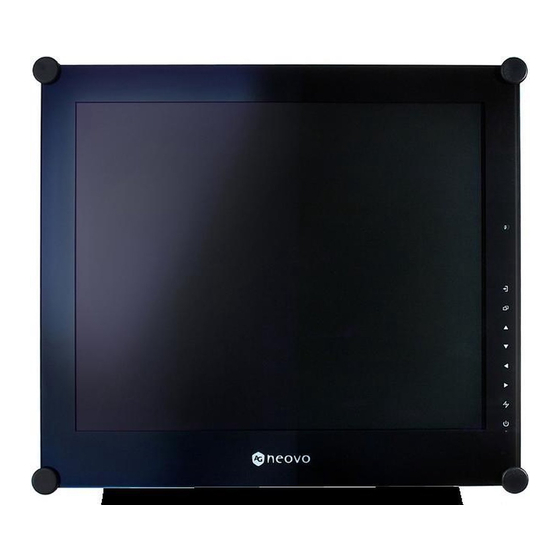

    PRODUCT DESCRIPTION 1.3 LCD Display Overview Keypad 1.3.1 Front View and Keypad Buttons INPUT SELECT MENU SELECT SWAP/ ROTATE DOWN FREEZE/ AUTO ADJ. POWER/ Display screen LEFT The LCD display screen is protected by • Press to decrease the volume. NeoV Optical Glass.
  • Page 12: Rear View

    PRODUCT DESCRIPTION 1.3.2 Rear View S-VIDEO CVBS 1 CVBS 2 CVBS 1 CVBS 2 DC OUT DC IN D-SUB AUDIO IN DC power input COMPOSITE Video input connectors Use to connect the power cord. Use to connect composite cables for CVBS input signal.
  • Page 13: Chapter 2: Making Connections

    CHAPTER 2: MAKING CONNECTIONS 2.1 Connecting the Power Connect the power cord to the power adapter. Connect the power adapter to the DC power input at the rear of the LCD display. Connect the power cord plug to a power outlet or a power supply. DC IN Caution: ♦...
  • Page 14: Connecting Input Source Signals

    MAKING CONNECTIONS 2.2 Connecting Input Source Signals 2.2.1 Connecting a Computer Using VGA Cables Connect one end of a D-sub cable to the VGA connector of the LCD display and the other end to the D-sub connector of the computer. D-SUB Using DVI Cables Connect one end of a DVI cable to the DVI connector of the LCD display and the other end to the DVI...
  • Page 15: Connecting An Audio Device

    MAKING CONNECTIONS Connecting an Audio Device Connect one end of an audio cable to the audio port at the rear of the LCD display and the other end to the audio out port of the computer. AUDIO IN 2.2.2 Connecting a Camera or Video Device Using CVBS Cables Connect one end of a CVBS cable CVBS 1...
  • Page 16: Using S-Video Cables

    MAKING CONNECTIONS Using S-Video Cables Connect one end of an S-Video cable to the S-VIDEO connector of the LCD display and the other end S-VIDEO to the S-VIDEO connector of your device. For audio input, connect an RCA cable to the audio in connector of the LCD display and the audio out connector of your device.
  • Page 17: Connecting A Stereo Amplifier

    MAKING CONNECTIONS 2.4 Connecting a Stereo Amplifier To amplify the sound output, connect a stereo amplifer to the LCD display. Connect an RCA cable to the audio out connector of the LCD display and to the audio in connector of a stereo amplifier.
  • Page 18: Chapter 3: Using The Lcd Display

    CHAPTER 3: USING THE LCD DISPLAY 3.1 Turning on the Power Plug the power cord to a power outlet or power supply. Note: Touch the POWER button to turn the ♦ The LCD display still consumes LCD display on. power as long as the power cord is connected to the power The LED indicator turns GREEN.
  • Page 19: Adjusting The Volume

    USING THE LCD DISPLAY 3.3 Adjusting the Volume Touch either the buttons to call out the volume bar. Touch the button to increase volume. Touch the button to decrease volume. To mute the audio, set the volume to 0. VOLUME buttons 3.4 Locking the OSD Menu Lock the OSD menu to protect the LCD display from unauthorised users or from accidentally pressing the keypad.
  • Page 20: Using Picture-In-Picture (Pip)

    USING THE LCD DISPLAY 3.5 Using Picture-in-Picture (PIP) The Picture-in-Picture (PIP) feature allows viewing of more than one input source signal on the LCD display. 3.5.1 PIP Options Info: ♦ PIP On: The sub source signal Touch the button repeatedly to enable and scroll among the PIP is displayed within the main options.
  • Page 21: Pip Swap

    USING THE LCD DISPLAY 3.5.2 PIP Swap The main and the sub source signals set in PIP Setting can be easily swapped using the keypad. Note: ♦ PIP Swap can only be executed if PIP is enabled, see page 33. Main source Sub source Touch the...
  • Page 22: Using Freeze Function

    USING THE LCD DISPLAY 3.7 Using FREEZE Function The FREEZE function allows you to freeze the screen image but still continues real-time playback until the image is unfreeze. Touch the button to activate screen freeze, the screen freeze message is displayed on the screen. Note: ♦...
  • Page 23: Chapter 4: On Screen Display Menu

    CHAPTER 4: ON SCREEN DISPLAY MENU 4.1 Using the OSD Menu Operation Display the main menu screen. Touch 1 2 8 0 x 1 0 2 4 6 0 H z B R I G H T N E S S B R I G H T N E S S C O N T R A S T C O L O U R...
  • Page 24 ON SCREEN DISPLAY MENU Operation Select the submenu item. Touch the buttons. 0 2 4 6 0 H z B R I G H T N E S S T N E S S C O N T R A S T C O N T R A S T S E T T I N G B L A C K...
  • Page 25: Osd Menu Tree

    ON SCREEN DISPLAY MENU 4.2 OSD Menu Tree 1 2 8 0 x 1 0 2 4 6 0 H z B R I G H T N E S S B R I G H T N E S S C O N T R A S T C O L O U R S E T T I N G...
  • Page 26 ON SCREEN DISPLAY MENU Main Menu Submenu Remarks Image Setting During Video input signal: See page 31. • Sharpness • Saturation • Tint • 3D Comb Filter • Noise Reduction • Aspect Ratio • H. Zoom • V. Zoom • H. Position •...
  • Page 27 ON SCREEN DISPLAY MENU Main Menu Submenu Remarks 10. Input Select • VGA See page 40. • DVI • CVBS1 • CVBS2 • S-Video 11. Language Select the OSD language: EN / FR / DE / ES / IT / PY / RO / PL / CS / NL / TC / SC 12.
  • Page 28: Brightness Setting

    CHAPTER 5: ADJUSTING THE LCD DISPLAY 5.1 Brightness Setting 1. Touch to call out the OSD window. 1 2 8 0 x 1 0 2 4 6 0 H z B R I G H T N E S S B R I G H T N E S S 2.
  • Page 29: Colour Setting

    ADJUSTING THE LCD DISPLAY 5.2 Colour Setting 1. Touch to call out the OSD window. 1 2 8 0 x 1 0 2 4 6 0 H z C O L O U R T E M P . 6 5 0 0 K B R I G H T N E S S 2.
  • Page 30: Image Setting (Vga Only)

    ADJUSTING THE LCD DISPLAY 5.3 Image Setting (VGA only) Note: During DVI input source signal, Image Setting is disabled and grayed out. 1. Touch to call out the OSD window. 1 2 8 0 x 1 0 2 4 6 0 H z S H A R P N E S S B R I G H T N E S S 2.
  • Page 31: Image Setting (Video Signals)

    ADJUSTING THE LCD DISPLAY 5.4 Image Setting (Video signals) 1 2 8 0 x 1 0 2 4 6 0 H z 1. Touch to call out the OSD window. S H A R P N E S S B R I G H T N E S S 2.
  • Page 32 ADJUSTING THE LCD DISPLAY Range / Item Function Operation Value Overscan Adjusts the aspect ratio of the screen Touch the buttons to Underscan image. select the value. Native Aspect Ratio can be set to: Aspect Ration • OVERSCAN - The aspect ratio increases by 5%. •...
  • Page 33: Pip Setting

    ADJUSTING THE LCD DISPLAY 5.5 PIP Setting 1. Touch to call out the OSD window. 1 2 8 0 x 1 0 2 4 6 0 H z P I P O F F P I P P A P B R I G H T N E S S 2.
  • Page 34 ADJUSTING THE LCD DISPLAY Note: Any input signal may be set as the main or the sub source signal. However, some input signals are not supported to be paired together as the main and the sub source signals. Refer to the following table for compatibility options: Main / Sub CVBS1 CVBS2...
  • Page 35: Anti-Burn-In

    ADJUSTING THE LCD DISPLAY 5.6 Anti-Burn-In Anti-Burn-In is useful in preventing image retention on the LCD display. 1. Touch to call out the OSD window. 1 2 8 0 x 1 0 2 4 6 0 H z E N A B L E O F F B R I G H T N E S S 2.
  • Page 36: Osd Setting

    ADJUSTING THE LCD DISPLAY 5.7 OSD Setting 1. Touch to call out the OSD window. 1 2 8 0 x 1 0 2 4 6 0 H z T R A N S P A R E N C Y B R I G H T N E S S 2.
  • Page 37: Audio Setting

    ADJUSTING THE LCD DISPLAY 5.8 Audio Setting 1. Touch to call out the OSD window. 1 2 8 0 x 1 0 2 4 6 0 H z V O L U M E B R I G H T N E S S 2.
  • Page 38: Other Setting

    ADJUSTING THE LCD DISPLAY 5.9 Other Setting 1 2 8 0 x 1 0 2 4 6 0 H z 1. Touch to call out the OSD window. P O W E R S A V I N G O F F B R I G H T N E S S 2.
  • Page 39: Auto Brightness

    ADJUSTING THE LCD DISPLAY 5.10 Auto Brightness 5.10.1 EcoSmart Sensor With the built-in EcoSmart sensor, users can enable the Auto Brightness feature to automatically adjust the LCD screen brightness according to the ambient light. This feature comforts the eyes and helps optimise energy efficiency.
  • Page 40: Input Select

    ADJUSTING THE LCD DISPLAY 5.11 Input Select 1. Touch to call out the OSD window. 1 2 8 0 x 1 0 2 4 6 0 H z V G A P R E S S B R I G H T N E S S 2.
  • Page 41: Chapter 6: Appendix

    CHAPTER 6: APPENDIX 6.1 Warning Messages Warning Messages Cause Solution The resolution or the refresh rate of • Change the resolution or the the graphics card of the computer refresh rate of the graphics I N P U T S I G N A L O U T O F R A N G E is set too high.
  • Page 42: Troubleshooting

    APPENDIX 6.2 Troubleshooting Problem Possible Cause and Solution No picture. • Check if the LCD display is turned ON. • Check if the power cord is properly connected to the LCD display. • LED indicator is OFF. • Check if the power cord is plugged into the power outlet. •...
  • Page 43: Transporting The Lcd Display

    APPENDIX 6.3 Transporting the LCD Display To transport the LCD display for repair or shipment, place the display in its original packaging carton. Place the two foam cushions on each side of the LCD display for protection. Place the LCD display down in the box. Put all other contents on the designated area (if necessary).
  • Page 44: Chapter 7: Specifications

    CHAPTER 7: SPECIFICATIONS 7.1 Display Specifications SX-17P SX-19P Panel Panel Size 17” 19” Max. Resolution SXGA 1280 x 1024 SXGA 1280 x 1024 Frequency (H/V) H: 24 kHz - 82 kHz H: 24 kHz - 82 kHz V: 50 Hz - 85 Hz...
  • Page 45: Display Dimensions

    SPECIFICATIONS 7.2 Display Dimensions 7.2.1 SX-17P Dimensions 278mm 69.5mm 37mm 100mm 409.2mm 361.7mm 100mm 75mm 75mm 172mm 240mm 7.2.2 SX-19P Dimensions Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan.
