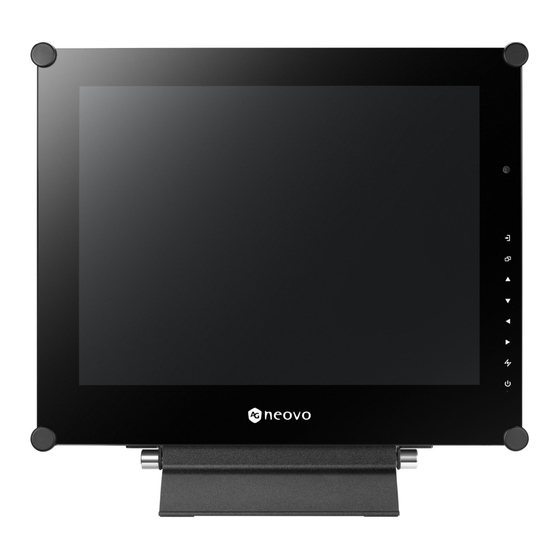

SX-15G, SX-17G & SX-19G LCD Monitor
User Manual
displays.agneovo.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SX-15G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AG Neovo SX-15G

Summary of Contents for AG Neovo SX-15G

  • Page 1 SX-15G, SX-17G & SX-19G LCD Monitor User Manual displays.agneovo.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Safety Information Federal Communications Commission (FCC) Notice (U.S. Only) ............4 WEEE ............................... 5 Precautions Notice ............................... 6 Cautions When Setting Up ........................6 Cautions When Using ..........................7 Cleaning and Maintenance ........................7 Notice for the LCD Display ........................8 Chapter 1: Product Description 1.1 Package Contents ..........................
  • Page 3 5.12 Input Select ............................47 Chapter 6: Appendix 6.1 Warning Messages ..........................48 6.2 Supported Resolutions ........................49 6.2.1 SX-15G Supported Resolutions ....................49 6.2.2 SX-17G/19G Supported Resolutions ..................50 6.3 Troubleshooting ..........................51 6.4 Transporting the LCD Display ......................53 Chapter 7: Specifications 7.1 Display Specifications ........................

  • Page 4: Safety Information

    SAFETY INFORMATION Safety Information Federal Communications Commission (FCC) Notice (U.S. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 5: Weee

    SAFETY INFORMATION WEEE Information for users applicable in European Union countries. The symbol on the product or its packaging signifies that this product has to be disposed separately from ordinary household wastes at its end of life. Please kindly be aware that this is your responsibility to dispose electronic equipment at recycling centers so as to help conserve natural resources.

  • Page 6: Precautions

    PRECAUTIONS Precautions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •...

  • Page 7: Cautions When Using

    AG Neovo for consultations and solutions to help ensure a most pleasurable and fulfilling display experience.

  • Page 8: Notice For The Lcd Display

    PRECAUTIONS Notice for the LCD Display In order to maintain the stable luminous performance, it is recommended to use low brightness setting. Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD display may decrease with time.

  • Page 9: Chapter 1: Product Description

    Must use only the supplied power adapter: SX-15G, SX-17G & SX-19G ♦ ADAPTER TECH Model no.: ATS040T-P120 Quick Start Guide SX-15G, SX-17G & SX-19G LCD Monitor Rating: 12V/3.3A SX-15G/SX-17G/SX-19G_Quick Guide_V010 displays.agneovo.com ♦ DELTA ELECTRONICS, INC. Model no.: ADP-40GD BD2 Rating: 12V/3.33A...

  • Page 10: Wall Mounting Installation Preparation

    75mm display on the ceiling or any other horizontal surface overhead are strongly advised to contact AG Neovo for consultations and solutions to help ensure a most 1.2.2 Removing the Base Stand pleasurable and fulfilling display experience.

  • Page 11: Lcd Display Overview

    PRODUCT DESCRIPTION 1.3 LCD Display Overview 1.3.1 Front View and Keypad Buttons SOURCE RIGHT Press to select the input signal source. Hot Key: Screen Freeze • Press to activate the screen freeze function. MENU To deactivate, press any key except for the Press to display/hide the OSD menu.

  • Page 12: Rear View

    PRODUCT DESCRIPTION 1.3.2 Rear View S-VIDEO COMPOSITE-1 COMPOSITE-2 AUDIO AUDIO DC IN HDMI DisplayPort AUDIO IN USB (SERVICE) RS232 DC IN COMPOSITE-1/COMPOSITE-2 IN Connect with the supplied power adaptor. Connect Composite (CVBS) signals input. COMPOSITE-1/COMPOSITE-2 OUT Connect Composite (CVBS) signals output. Connect DVI signals input.

  • Page 13: Chapter 2: Making Connections

    CHAPTER 2: MAKING CONNECTIONS Chapter 2: Making Connections 2.1 Connecting the Power Connect the power cord to the power adapter. Connect the power adapter to the DC power input at the rear of the LCD display. Connect the power cord plug to a power outlet or a power supply. DC IN Caution: ♦...

  • Page 14: Connecting Input Source Signals

    MAKING CONNECTIONS 2.2 Connecting Input Source Signals 2.2.1 Connecting a Computer Using VGA Cables Connect one end of a VGA cable to the VGA connector of the LCD display and the other end to the VGA connector of the computer. Using DVI Cables Connect one end of a DVI (DVI-D) cable to the DVI connector of the LCD display and the other end to the DVI connector of the computer.

  • Page 15: Using Hdmi Cables

    MAKING CONNECTIONS Using HDMI Cables Connect one end of an HDMI cable to the HDMI connector of the LCD display and the other end to the HDMI connector of the computer. HDMI Using DisplayPort Cables Connect one end of a DisplayPort cable to the DisplayPort connector of the LCD display and the other end to the DisplayPort connector of the computer.

  • Page 16: Using Rs232 Cables

    MAKING CONNECTIONS Using RS232 Cables Connect one end of an RS232 cable to the RS232 connector of the LCD display and the other end to the RS232 connector of the computer. RS232 Using Audio Cables Connect one end of an audio cable to the AUDIO IN connector at the rear of the LCD display and the other end to the audio out connector of the computer.

  • Page 17: Connecting A Video Device

    MAKING CONNECTIONS 2.2.2 Connecting a Video Device Using Composite (CVBS) Cables Connect one end of a Composite (CVBS) cable to the COMPOSITE 1 / COMPOSITE 2 IN connector of the LCD display and the other end to the Composite (CVBS) connectors of your device. For audio input, connect an RCA cable to the AUDIO IN connectors of the LCD display and the audio out connector of your device.

  • Page 18: Using S-Video Cables

    MAKING CONNECTIONS Using S-Video Cables Connect one end of an S-Video cable to the S-VIDEO connector of the LCD display and the other end to the S-VIDEO connector of your device. For audio input, connect an RCA cable to the AUDIO IN connectors of the LCD display and the audio out connector of your device.

  • Page 19: Using Displayport Cables

    MAKING CONNECTIONS Using DisplayPort Cables Connect one end of a DisplayPort cable to the DisplayPort connector of the LCD display and the other end to the DisplayPort connector of your device. DisplayPort...

  • Page 20: Chapter 3: Using The Lcd Display

    CHAPTER 3: USING THE LCD DISPLAY Chapter 3: Using the LCD Display 3.1 Turning on the Power Note: Connect the power cord to the power adapter. Then connect the power adapter to the DC ♦ The LCD display still consumes power as long as the power power input at the rear of the LCD display.

  • Page 21: Adjusting The Volume

    USING THE LCD DISPLAY 3.3 Adjusting the Volume Press the button to call out the volume bar. Press the button to increase volume or the button to decrease volume. Hot Key: Audio Volume Adjustment 3.3.1 Muting the Audio Press the buttons simultaneously to mute or unmute the audio.

  • Page 22: Using Picture-In-Picture (Pip)

    USING THE LCD DISPLAY 3.5 Using Picture-in-Picture (PIP) The Picture-in-Picture (PIP) and Picture-by-Picture (PIP) feature allows viewing of more than one input source signal on the LCD display. 3.5.1 PIP/PBP Options Hot Key: PIP/PBP Select Press the button repeatedly to enable and scroll among the PIP/PBP options.

  • Page 23: Pip/Pbp Swap

    USING THE LCD DISPLAY 3.5.2 PIP/PBP Swap The main and the sub source signals set in PIP/PBP Setting can be easily swapped using the keypad. Note: Sub source ♦ PIP/PBP Swap can only be Main source executed if PIP is enabled, see page 38.

  • Page 24: Using Auto Adjustment Function

    USING THE LCD DISPLAY 3.7 Using Auto Adjustment Function Note: ♦ Auto Adjustment function is available only during VGA input Auto Adjustment function automatically tunes the signals. LCD display to its optimal setting, including horizontal ♦ It is recommended to use the position, vertical position, clock, and phase.

  • Page 25: Locking The Osd Menu

    USING THE LCD DISPLAY 3.9 Locking the OSD Menu Lock the OSD menu to protect the LCD display from unauthorised users or from accidentally pressing the keypad. To lock the OSD, press and hold the keypad buttons listed below for at least 5 seconds or until the O S D message appears.

  • Page 26: Chapter 4: On Screen Display Menu

    CHAPTER 4: ON SCREEN DISPLAY MENU Chapter 4: On Screen Display Menu 4.1 Using the OSD Menu Operation Display the main menu screen. Press the button. 1 9 2 0 x 1 0 8 0 6 0 H z B R I G H T N E S S B R I G H T N E S S C O N T R A S T C O L O U R T E M P .
  • Page 27 ON SCREEN DISPLAY MENU Operation Select the submenu item. Press the button. 0 x 1 0 8 0 6 0 H z B R I G H T N E S S R I G H T N E S S C O N T R A S T O L O U R T E M P .

  • Page 28: Osd Menu Tree

    ON SCREEN DISPLAY MENU 4.2 OSD Menu Tree 1 9 2 0 x 1 0 8 0 6 0 H z B R I G H T N E S S B R I G H T N E S S C O N T R A S T C O L O U R T E M P .
  • Page 29 ON SCREEN DISPLAY MENU Main Menu Submenu Remarks 3. IMAGE SETTING • SHARPNESS See page 34. • SATURATION • TINT • GAMMA • COLOUR RANGE • NOISE REDUCTION • PICTURE MODE • H. POSITION • V. POSITION • PHASE • CLOCK 4.
  • Page 30 ON SCREEN DISPLAY MENU Main Menu Submenu Remarks 10. SYSTEM 2 • SUPER RESOLUTION See page 45. • OVERDRIVE • DCR • NIGHT MODE • MONITOR ID 11. ECOSMART SENSOR • ENABLE See page 46. • MODE • LEVEL 12. INPUT SELECT •...

  • Page 31: Chapter 5: Adjusting The Lcd Display

    CHAPTER 5: ADJUSTING THE LCD DISPLAY Chapter 5: Adjusting the LCD Display 5.1 Brightness 1. Press the button to call out the 1 9 2 0 x 1 0 8 0 6 0 H z B R I G H T N E S S OSD window.
  • Page 32 ADJUSTING THE LCD DISPLAY Original Setting High Setting Low Setting BRIGHTNESS CONTRAST BLACK LEVEL...

  • Page 33: Colour Temp

    ADJUSTING THE LCD DISPLAY 5.2 Colour Temp. 1. Press the button to call out the OSD 1 9 2 0 x 1 0 8 0 6 0 H z N E U T R A L window. W A R M B R I G H T N E S S C O O L U S E R...

  • Page 34: Image Setting

    ADJUSTING THE LCD DISPLAY 5.3 Image Setting 1. Press the button to call out the OSD 1 9 2 0 x 1 0 8 0 6 0 H z S H A R P N E S S window. B R I G H T N E S S S A T U R A T I O N C O N T R A S T 2.
  • Page 35 ADJUSTING THE LCD DISPLAY Item Function Operation Range Adjusts black and white levels for AUTO video. Press the button to FULL select the setting. Note: This menu option is only LIMITED available if the input source is HDMI. Signal source from PC - PC signal at a full range (Grayscale 0-255) state: COLOUR RANGE Monitor OSD colour range: Full Monitor OSD colour range: Limited...
  • Page 36 ADJUSTING THE LCD DISPLAY Item Function Operation Range H. POSITION Moves the screen image to the left (Horizontal Position) or right. V. POSITION Moves the screen image up or down. (Vertical Position) Adjusts the phase timing to Press the button to synchronise with the video signal.

  • Page 37: Aspect Ratio

    ADJUSTING THE LCD DISPLAY 5.4 Aspect Ratio 1. Press the button to call out the OSD 1 9 2 0 x 1 0 8 0 6 0 H z F U L L window. R E A L B R I G H T N E S S N A T I V E Z O O M C O L O U R T E M P .

  • Page 38: Pip Setting

    ADJUSTING THE LCD DISPLAY 5.5 PIP Setting 1. Press the button to call out the OSD 1 9 2 0 x 1 0 8 0 6 0 H z P I P window. O F F B R I G H T N E S S P I P P B P C O L O U R T E M P .
  • Page 39 ADJUSTING THE LCD DISPLAY Note: Any input signal may be set as the main or the sub source signal. However, some input signals are not supported to be paired together as the main and the sub source signals. Refer to the following table for compatibility options: Main Source Input Source HDMI DISPLAYPORT COMPOSITE 1 COMPOSITE 2...

  • Page 40: Anti-Burn-In

    ADJUSTING THE LCD DISPLAY 5.6 Anti-Burn-in 1. Press the button to call out the 1 9 2 0 x 1 0 8 0 6 0 H z E N A B L E OSD window. O F F B R I G H T N E S S I N T E R V A L ( H O U R S ) C O L O U R T E M P .

  • Page 41: Osd Setting

    ADJUSTING THE LCD DISPLAY 5.7 OSD Setting 1. Press the button to call out the OSD 1 9 2 0 x 1 0 8 0 6 0 H z T R A N S P A R E N C Y window.

  • Page 42: Audio Setting

    ADJUSTING THE LCD DISPLAY 5.8 Audio Setting 1. Press the button to call out the OSD 1 9 2 0 x 1 0 8 0 6 0 H z V O L U M E window. B R I G H T N E S S A U D I O C O L O U R T E M P .

  • Page 43: System 1

    ADJUSTING THE LCD DISPLAY 5.9 System 1 1. Press the button to call out the OSD 1 9 2 0 x 1 0 8 0 6 0 H z P O W E R S A V I N G window.
  • Page 44 Note: This menu option is only available if the input source is HDMI. Enables or disables the logo feature. If the setting is set to ON, the AG Neovo LOGO logo is briefly displayed after the display is powered on.

  • Page 45: System 2

    ADJUSTING THE LCD DISPLAY 5.10 System 2 1. Press the button to call out the OSD 1 9 2 0 x 1 0 8 0 6 0 H z S U P E R R E S O L U T I O N window.

  • Page 46: Ecosmart Sensor

    ADJUSTING THE LCD DISPLAY Item Function Operation Range Sets the ID number for controlling the display via the RS232 connection. Each Press the button to MONITOR ID 1~255 display must have a unique ID number when set the ID. multiple sets of this display are connected. 5.11 EcoSmart Sensor With the built-in EcoSmart sensor, users can enable the Eco Smart feature to automatically adjust the LCD screen brightness according to the ambient light.

  • Page 47: Input Select

    ADJUSTING THE LCD DISPLAY Item Function Operation Value Allows you to set the level of LCD brightness. Press the button to LEVEL 0 to 100 Note: This menu option is only adjust the value. available if the MODE setting is to USER.

  • Page 48: Chapter 6: Appendix

    CHAPTER 6: APPENDIX Chapter 6: Appendix 6.1 Warning Messages Warning Messages Cause Solution The resolution or the refresh rate of • Change the resolution or the the graphics card of the computer refresh rate of the graphics I N P U T S I G N A L O U T O F R A N G E is set too high.

  • Page 49: Supported Resolutions

    APPENDIX 6.2 Supported Resolutions 6.2.1 SX-15G Supported Resolutions Resolution PC Mode Refresh Rate Horizontal Vertical IBM VGA IBM VGA Apple Mac II VESA VESA VESA VESA VESA VESA Apple Mac II VESA 1024 VESA 1024 VESA 1024 Resolution Video Mode...

  • Page 50: Sx-17G/19G Supported Resolutions

    APPENDIX 6.2.2 SX-17G/19G Supported Resolutions Resolution PC Mode Refresh Rate Horizontal Vertical IBM VGA IBM VGA Apple Mac II VESA VESA VESA VESA VESA VESA Apple Mac II VESA 1024 VESA 1024 VESA 1024 VESA 1280 1024 VESA 1280 1024 Apple Mac II 1152 VESA...

  • Page 51: Troubleshooting

    APPENDIX Resolution Video Mode Refresh Rate Horizontal Vertical HDTV 1920 1080 HDTV 1920 1080 HDTV 1920 1080 HDTV 1920 1080 6.3 Troubleshooting Problem Possible Cause and Solution No picture. • Check if the LCD display is turned ON. • Check if the power cord is properly connected to the LCD display. •...
  • Page 52 APPENDIX Problem Possible Cause and Solution Cannot adjust the backlight • The Eco Smart feature is enabled. Set the ECOSMART SENSOR > ENABLE setting to OFF to disable the Eco Smart feature (see page setting. 46). The displayed picture looks •...

  • Page 53: Transporting The Lcd Display

    APPENDIX 6.4 Transporting the LCD Display To transport the LCD display for repair or shipment, place the display in its original packaging carton. Place the two foam cushions on each side of the LCD display for protection. Place the LCD display down in the box. Place the accessories box on the designated area (if necessary).

  • Page 54: Chapter 7: Specifications

    CHAPTER 7: SPECIFICATIONS Chapter 7: Specifications 7.1 Display Specifications SX-15G SX-17G SX-19G Panel Panel Type LED-Backlit TFT LCD LED-Backlit TFT LCD LED-Backlit TFT LCD (VA Technology) (TN Technology) (TN Technology) Panel Size 15.0” 17.0” 19.0" Max. Resolution XGA 1024 x 768...

  • Page 55: Display Dimensions

    SPECIFICATIONS 7.2 Display Dimensions 7.2.1 SX-15G Dimensions 380(outline dimension) 53.5 306(opening dimension) (M4xL10) x8 44.8 282.4 44.8 179.4 7.2.2 SX-17G Dimensions 64.5 409.4(outline dimension) 340(opening dimension) (M4xL10) x8...

  • Page 56: Sx-19G Dimensions

    SPECIFICATIONS 7.2.3 SX-19G Dimensions 64.5 (outline dimension) 445.4 (opening dimension) 27.8 378.5 27.8 AG Neovo Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2019 AG Neovo. All rights reserved. SX9G00/SX7G00/SX5G00_UM_V010...
