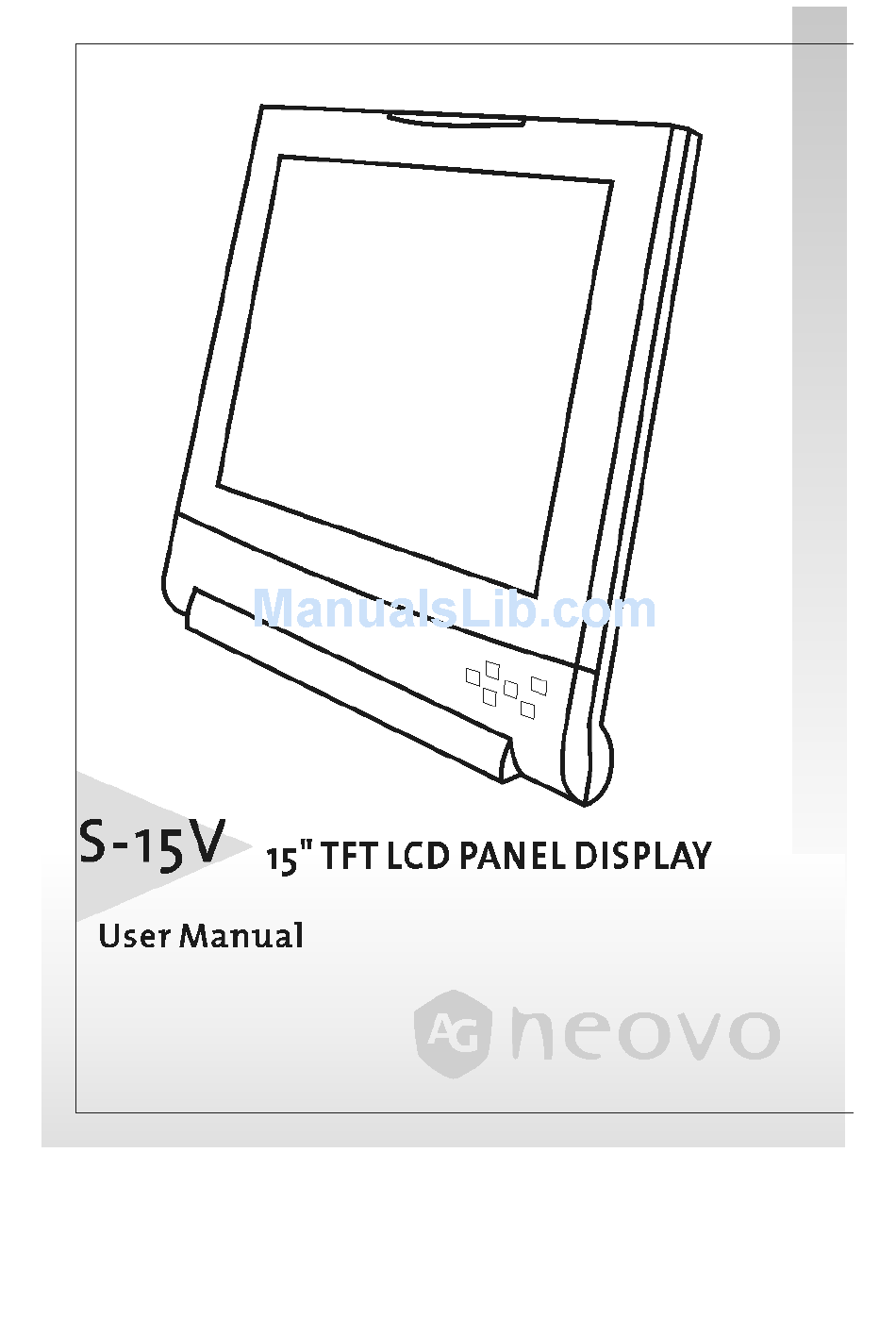

AG Neovo S-15V User Manual

15" tft lcd panel display
Hide thumbs Also See for S-15V:
Table of Contents

Advertisement

Quick Links

0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S-15V and is the answer not in the manual?

Questions and answers

Related Manuals for AG Neovo S-15V

Summary of Contents for AG Neovo S-15V

  • Page 2: Table Of Contents

    PRECAUTIONS ...2 ...2 NSTALLATION ARNING ON POWER CONNECTION ...2 ARNING ON TILT ...3 AINTENANCE ...3 RANSPORTATION GETTING STARTED ...4 ... 4 ACKAGE ONTENTS DENTIFYING ARTS AND ONTROLS ...7 ETUP ETTING THE INPUT SIGNAL PRIORITY NSTALL INFORMATION FILE FOR CUSTOMIZING YOUR MONITOR... 9 OSD G ORKING WITH ROUPS...

  • Page 3: Precautions

    Installation Do not cover or block the ventilation holes in the case. · Do not install the monitor near heat sources such as radiators or air ducts, or · in a place subject to direct sunlight, excessive dust, mechanical vibration or shock.

  • Page 4: Maintenance

    Maintenance Clean the cabinet, glass, and controls with a soft cloth lightly moistened with · a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent, such as alcohol or benzene. Do not rub, touch, or tap the surface of the screen with sharp or abrasive ·...

  • Page 5: Getting Started

    Package Contents Before using this monitor, check the following items are included in your carton box: Monitor (*1) · Power adapter (*1) · Power cord (*1) · D-sub 15-pin VGA signal cable (*1) · Video signal cable adapter (Mini-dim 8-pin connector to S-VHS and CVBS jack) ·...

  • Page 6: Identifying Parts And Controls

    Identifying Parts and Controls Power switch Turns the monitor on or off. LED indicator The indicator lights up in green when the monitor is turned on, and lights up in orange when the monitor is in power saving mode. AUTO button Adjust the picture position and performance automatically.
  • Page 7 DC +12V Power inlet Provides +12V DC power to the monitor. VGA-In D-sub 15-pin connector for VGA signal. VIDEO-In (Optional) Mini-dim 8- pin connector for S-Video or CVBS signal. Fold-lock Press fold-lock on the stand of the monitor while you fold the stand back for storage or transportation.

  • Page 8: Setup

    Setup Please follow the steps one by one to setup your monitor. Fold the stand of monitor and split the dust-proof plastic sheet Fold the stand out, so you can locate the monitor on the table. Split the dust-proof plastic sheet from the screen surface of monitor. Connect the monitor to the computer or video source With the computer or other video source switched off, connect the video signal cable to the monitor.

  • Page 9: Setting The Input Signal Priority

    Connect the power adapter and power cord With the monitor switched off, connect the cable of power adapter to the monitor. Then connect the power cord to the adapter, and the other end of the power cord to a power outlet. Turn on the monitor and computer or video source Turn on your computer or other video source.

  • Page 10: Customizing Your Monitor

    Working with OSD Groups Press the UP OSD functions are divided into Groups. Icons representing these groups appear across the top of the OSD display. From left to right, the OSD Groups are: To select an OSD Group, with the OSD window open, press the DOWN buttons until the desired Group’s icon is highlighted and that Group’s setting items are listed.

  • Page 11: Selecting The Input

    Selecting the Input The input source is detected automatically when you turn on the monitor. If more than one deivce is connected to the monitor, you can select the device you want from the Input Select screen. Push the DOWN Use the DOWN Use the INCREASE source.

  • Page 12: Center Image

    Horizontal & Vertical Position To fine-tune the display’s position on the monitor screen, select the item from the menu. Use the INCREASE desired on the 0-100 scale that appears at the bottom of the window. Push the AUTO selection menu. Center Image To center the display’s position on the monitor screen, select the item from the menu.

  • Page 13: Color Temperature

    9300 K 6500 K 5500 K USER PRESS - OR + KEY TO CONFIRM 1024 X 768 / Selecting a Color Temperature setting The following conditions are recommended for the available settings: Setting 9300K 6500K 5500K Select the desired setting from the menu. Use the INCREASE Push the AUTO button selection menu.

  • Page 14: Osd Position

    OSD POSITION CENTER OSD OSD OFF TIME TRANSPARANCY LANGUAGE 1024 X 768 / OSD Position To position the OSD window to your preference, select the item from the menu. Use the INCREASE through its available positions. Push the AUTO button selection menu.

  • Page 15: Misc Setting

    Transparency To enable transparency of the OSD window, select the item from the menu. Use the INCREASE and NO. Push the AUTO button selection menu. Language To select the language for the OSD interface, select the item from the menu. Use the INCREASE available languages shown at the bottom of the window.
  • Page 16 Text/Graphic To choose between the monitor’s automatic sharpness optimization for text or graphic use, select the item from the menu. Use the INCREASE and NO. Push the AUTO button selection menu. Note! For better performance, change to “Text” mode when display resolution is set at 720 x 400 and change to “Graphics”...

  • Page 17: Pip Video Quality (Optional)

    PIP Video Quality (Optional) PIP (Picture In Picture) allows you to view a small video window in the middle of your full-screen display. Depending on your input source, this feature can be used for watching TV while using your computer. It can also be used in videoconferencing to see how you appear to the other members in the conference.

  • Page 18: Pip Enable (Optional)

    PIP Enable (Optional) To enjoy your monitor’s PIP feature, you should first connect your input source to the rear of the monitor (see Making Connections on page 4). In the following screen, first enable PIP and then select the input source that is connected to the monitor. PIP Off/PIP On Select PIP ON from the menu.

  • Page 19: Pip Setting (Optional)

    PIP Setting (Optional) Window Size To resize the PIP window, select the item from the menu. Use the INCREASE 0/50/100 scale that appears at the bottom of the window. Push the AUTO selection menu. H-Position & V-Position To change the horizontal and vertical position of the PIP window on the monitor screen, select the item from the menu.

  • Page 20: Input Select (Optional)

    Input Select (Optional) If you only want to change the input source, you can select a simplified version of the following screen by pushing the DOWN VGA/CVBS/S-VIDEO To choose the monitor’s input source, select the item from the menu. Use the INCREASE source.

  • Page 21: Picture Adjustment (Av Mode) (Optional)

    Picture Adjustment (AV mode) (Optional) If an external video device is connected to the monitor, the PICTURE ADJUSTMENT screens will automatically change as follows. Brightness/Contrast/Saturation/Hue/Sharpness To adjust these settings, use the DOWN item from the menu. Use the INCREASE Push the AUTO selection menu.

  • Page 22: Av Mode (Optional)

    The AV Mode screen lets you adjust the contrast for the connected video device. Setting Mode1 Mode 2 Mode 3 MODE 1 MODE 2 MODE 3 To adjust these settings, use the DOWN item from the menu. Use the INCREASE Push the AUTO selection menu.

  • Page 23: Osd Lock Function

    Use the OSD lock function to prevent unwanted adjustment of the monitor’s settings. Once the OSD controls are locked, none of the OSD settings including the volume is accessible. Lock/unlock OSD Refer to the following to lock the OSD: Press and hold the DOWN seconds.

  • Page 24: Warning Messages And Troubleshooting

    Warning Messages If the message appears on the screen CAN NOT DISPLAY THIS INPUT SIGNAL NO SIGNAL INPUT MAIN CONTROL MENU LOCKED NO VIDEO SIGNAL FROM VGA-IN WAIT FOR AUTOMATIC ADJUSTMENT USE 1024X768 FOR BEST PERFORMANCE Check the items The input signal is not acceptable by the monitor. Please check the video resolution and frequency range is ·...

  • Page 25: Troubleshooting

    Symptom No picture · LED power indicator is · not lit No picture · The LED power · indicator is orange color The texts are not solid · · Screen image is not · Centered properly Some lines missing · There are red, green, ·...

  • Page 26: Technical Features And Specifications

    Power Saving Function This monitor meets the power-saving guidelines set by VESA and Energy Star, as well as the more stringent NUTEK. If the monitor is connected to a computer that is VESA DPMS (Display Power Management Signaling) compliant, the monitor will automatically reduce power consumption in the three stages as shown below.

  • Page 27: Specifications

    Specifications Electrical characteristics Screen size Pixel format Horizontal frequency Vertical frequency Maximum pixel clock Connections Power Consumption Physical characteristics Weight Tilt angle Temperature Humidity 15.0” (381mm) diagonal 1024 x 768 vertical stripe 30kHz – 60kHz 50Hz – 75Hz 80MHz Power: 3-Pin AC Plug 100 ~ 240V, 50~60Hz <...

  • Page 28: Regulations

    FCC compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 29: Tco'95

    TCO'95 Congratulations! You have just purchased a TCO'95 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.
  • Page 30 Fax: +46 8 782 92 07 Email (Internet): development@tco.se Current information regarding TCO'95 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/ TCO’95 is a co-operative project between TCO (The Swedish Confederation of Professional Employees), Naturskyddsforeningen (The Swedish Society for Nature Conservation) and NUTEK (The National Board for Industrial and Technical Development in Sweden).
