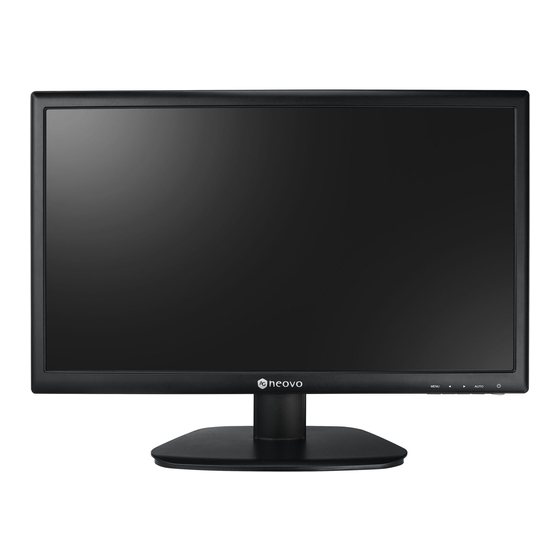

- Page 1 SC-2202, SC-2402 & SC-2702 LCD Monitor User Manual www.agneovo.com...
-
Page 2: Table Of Contents
Contents TABLE OF CONTENTS SAFETY INFORMATION Federal Communications Commission (FCC) Notice (U.S. Only) ..............4 WEEE ................................5 PRECAUTIONS Notice ................................6 Cautions When Setting Up ........................... 6 Cautions When Using ........................... 7 Cleaning and Maintenance ........................... 8 Notice for the LCD Monitor ........................... 8 CHAPTER 1: PRODUCT DESCRIPTION 1.1 Package Contents .......................... - Page 3 TABLE OF CONTENTS 6.3 Troubleshooting ............................ 38 6.4 Transporting the LCD Monitor ......................39 CHAPTER 7: SPECIFICATIONS 7.1 Display Specifications .......................... 41 7.2 Display Dimensions ..........................43...
-
Page 4: Safety Information
Safety Information SAFETY INFORMATION SC-2402 Federal Communications Commission (FCC) Notice (U.S. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 5: Weee
SAFETY INFORMATION WEEE Disposal of Waste Equipment by Users in Private Household in the European Union. This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. -
Page 6: Precautions
Precautions PRECAUTIONS PRECAUTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Symbols used in this manual This icon indicates the existence of a potential hazard that could result in personal injury or damage to the product. This icon indicates important operating and servicing information. Notice •... -
Page 7: Cautions When Using
Users who have already mounted the monitor on the ceiling or any other horizontal surface overhead are strongly advised to contact AG Neovo for consultations and solutions to help ensure a most pleasurable and fulfilling monitor experience. -
Page 8: Cleaning And Maintenance
PRECAUTIONS Cleaning and Maintenance Do not attempt to service the LCD monitor yourself, refer to qualified service personnel. Opening or removing the covers may expose you to dangerous voltage or other risks. Notice for the LCD Monitor In order to maintain the stable luminous performance, it is recommended to use low brightness setting. Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD monitor may decrease with time. -
Page 9: Chapter 1: Product Description
CHAPTER 1: PRODUCT DESCRIPTION 1.1 Package Contents When unpacking, check if the following items are included in the package. If any of them is missing or damaged, contact your dealer. LCD Monitor SC-2202 SC-2402 SC-2702 Quick Start Guide VGA Cable... -
Page 10: Installation
1. Pinch the latches on the base and then attach the base to the arm. Ensure the base latches are secured to the slots on the arm. 2. Place the LCD monitor with the screen side down on a cushioned surface. 3. Attach the stand to the monitor. SC-2202 SC-2402/2702... -
Page 11: Adjusting The Tilt
Note: Take measures to prevent the LCD monitor from falling down and lessen possible injury and damage to the monitor in case of earthquakes or other disasters. • Use only the 100 x 100 mm wall mount kit recommended by AG Neovo. All AG Neovo wall mount kits comply with VESA standard. -
Page 12: Overview
PRODUCT DESCRIPTION 1.3 Overview 1.3.1 Front View SC-2202 SC-2402 SC-2702 Power status indicator: Indicates the operating status of the monitor: • Blue – Power On mode. • Amber – Standby mode. • LED off – Off mode. -
Page 13: Control Panel
PRODUCT DESCRIPTION 1.3.2 Control Panel CVBS SC-2202 SC-2402 SC-2702 MENU OSD menu ON/OFF. Hot Key: Source Key • When OSD menu is ON, navigate through adjustment icons or adjust a function. Hot Key: Volume Key • When OSD menu is ON, navigate through adjustment icons or adjust a function. -
Page 14: Rear View
PRODUCT DESCRIPTION 1.3.3 Rear View CVBS SC-2202 SC-2402 SC-2702 AUDIO IN HDMI CVBS AC power input. AUDIO IN: Connect to audio input source (3.5 mm Stereo Audio Jack). COMPOSITE (CVBS) OUT: Connect Composite (CVBS) signals output. COMPOSITE (CVBS) IN: Connect Composite (CVBS) signals input. -
Page 15: Chapter 2: Making Connections
Chapter 2: Making Connections CHAPTER 2: MAKING CONNECTIONS CAUTION: Make sure that the LCD monitor is not connected to the power outlet before making any connections. Connecting cables while the power is ON may cause possible electric shock or personal injury. 2.1 Connecting the AC Power 1. -
Page 16: Connecting Input Source Signals
MAKING CONNECTIONS 2.2 Connecting Input Source Signals Input source signals can be connected with either of the following cables: • HDMI Connect one end of an HDMI cable to the HDMI connector of the LCD monitor and the other end to the HDMI connector of the computer. •... -
Page 17: Connecting Audio Devices
MAKING CONNECTIONS 2.3 Connecting Audio Devices Connect one end of an audio cable to the AUDIO IN connector of the LCD monitor and the other end to the AUDIO OUT connector of the computer. AUDIO IN AUDIO... -
Page 18: Connecting A Video Device
MAKING CONNECTIONS 2.4 Connecting a Video Device • CVBS OUT Connect one end of a composite cable to the CVBS OUT connector of the LCD monitor and the other end to the CVBS IN connector of the external display. • CVBS IN Connect one end of a composite cable to the CVBS IN connector of the LCD monitor and the other end to the CVBS OUT port of the video device. -
Page 19: Chapter 3: Using The Lcd Monitor
CHAPTER 3: USING THE LCD MONITOR 3.1 Turning on the Power 1. Plug the power cord to a power outlet or power supply. 2. Press the key on the control panel SC-2202 SC-2402 SC-2702 Power Key Power Key When the LCD monitor is turned on, press the key to turn off the LCD monitor. -
Page 20: Displaying The Osd Menu
Press the 1 key or MENU key to open the OSD menu. Press the key or MENU key again to close the OSD menu. For more information on adjusting settings, refer to page 25. SC-2202 SC-2402 VIDEO VIDEO PICTURE MODE... -
Page 21: Selecting A Source
USING THE LCD MONITOR 3.3 Selecting a Source Press the key or key to call out the source selection menu. SC-2202 SC-2402 INPUT SOURCE INPUT SOURCE CVBS CVBS HDMI HDMI SC-2702 INPUT SOURCE CVBS HDMI UP Key LEFT Key The following menu appears on the screen:... -
Page 22: Adjusting The Volume
USING THE LCD MONITOR 3.4 Adjusting the Volume Press the key or u key to call out the volume bar. SC-2202 SC-2402 SC-2702 DOWN Key RIGHT Key The following menu appears on the screen: Press the or t / u key to adjust volume. -
Page 23: Auto Adjusting The Screen (For Vga Source Only)
Auto Adjustment function automatically tunes the LCD monitor to its optimal setting, including horizontal position, vertical position, clock, and phase. Press the 2 key or AUTO key to perform auto adjustment for VGA source. SC-2202 SC-2402 AUTO ADJUSTING... AUTO ADJUSTING... -
Page 24: Locking The Control Keys
3.6 Locking the Control Keys Locking the control keys helps to prevent unwanted access to the LCD monitor settings. Press the 1 key or MENU key for 5 seconds to lock all keys except for Power. SC-2202 SC-2402 VIDEO VIDEO... -
Page 25: Chapter 4: On Screen Display Menu
Chapter 4: On Screen Display Menu CHAPTER 4: ON SCREEN DISPLAY MENU 4.1 Using the OSD Menu Menu Navigation Operation Display the main menu screen. Press 1 or MENU on the control panel. VIDEO PICTURE MODE STANDARD BRIGHTNESS CONTRAST BLACK LEVEL SATURATION SHARPNESS GAMMA... -
Page 26: Osd Menu Tree
ON SCREEN DISPLAY MENU 4.2 OSD Menu Tree Main Menu Submenu Reference VIDEO Refer to page 27. PICTURE MODE BRIGHTNESS CONTRAST BLACK LEVEL SATURATION TINT SHARPNESS GAMMA COLOUR TEMPERATURE ADVANCED CONTROL AUTO ADJUST AUTO COLOUR AUDIO Refer to page 31. SOUND MODE BALANCE VIRTUAL SURROUND... -
Page 27: Chapter 5: Adjusting The Lcd Monitor
Chapter 5: Adjusting the LCD Monitor CHAPTER 5: ADJUSTING THE LCD MONITOR 5.1 VIDEO Menu 1. Press 1 or MENU on the control panel to call out the OSD window. 2. Press or t / u to select and then press 2 or AUTO to enter the VIDEO menu. VIDEO PICTURE MODE STANDARD... - Page 28 ADJUSTING THE LCD MONITOR Item Function Operation Range SATURATION Adjusts the colour saturation. 0 to 100 Press or t / u to adjust the value. Note: This menu item is only available for HDMI and CVBS sources. TINT Adjusts the colour tint. 0 to 100 Note: This menu item is only available for CVBS source.
- Page 29 ADJUSTING THE LCD MONITOR Item Function Operation Range ADVANCED Configures advanced control settings. Press 2 or AUTO. CONTROL or ◀ / ▶. • “NOISE REDUCTION” - Reduces 1 Press the noise in the picture due to poor 2 Press 2 or AUTO MIDDLE reception or poor picture quality.
- Page 30 ADJUSTING THE LCD MONITOR Item Function Operation Range AUTO ADJUST • “H.POSITION (Horizontal Position)” - 0 to 100 1 Press or t / u. Moves the screen image to the left or 2 Press 2 or AUTO. .POS, V.POS, PHASE, CLOCK right.
-
Page 31: Audio Menu
ADJUSTING THE LCD MONITOR 5.2 AUDIO Menu 1. Press 1 or MENU on the control panel to call out the OSD window. or t / u to select 2. Press and then press 2 or AUTO to enter the AUDIO menu. AUDIO SOUND MODE USER... -
Page 32: Setting Menu
ADJUSTING THE LCD MONITOR 5.3 SETTING Menu 1. Press 1 or MENU on the control panel to call out the OSD window. or t / u to select 2. Press and then press 2 or AUTO to enter the SETTING menu. SETTING LANGUAGE English... - Page 33 ADJUSTING THE LCD MONITOR Item Function Operation Range STANDBY Enables or disables standby mode. Press 2 or AUTO (repeatedly) to select the Note: The amount of time for the display setting. to enter standby varies depending on the “SOURCE DETECT” setting. If the “SOURCE DETECT”...
- Page 34 ADJUSTING THE LCD MONITOR Item Function Operation Range ANTI-BURN-IN Protects the display from “burn-in” or 1 Press or t / u. “afterimage” symptoms when the display 2 Press 2 or AUTO to has not being used for a period of time. enter the submenu.
-
Page 35: Info Menu
ADJUSTING THE LCD MONITOR 5.4 INFO Menu 1. Press 1 or MENU on the control panel to call out the OSD window. or t / u to select 2. Press and then press 2 or AUTO to enter the INFORMATION menu. INFORMATION INPUT: HDMI... -
Page 36: Chapter 6: Appendix
Chapter 6: Appendix CHAPTER 6: APPENDIX 6.1 Warning Messages When any of these warning messages appear, check the following items. Warning Message Cause Solution The resolution or the refresh rate of √ Change the resolution or the INVALID FORMAT the graphics card of the computer refresh rate of the graphics card. -
Page 37: Timing
CHAPTER 6: APPENDIX 6.2 Timing HDMI 720 x 400p @ 70 Hz 720 x 400p @ 70 Hz 1920 x 1080p at 50 Hz 640 x 480p @ 60 Hz 640 x 480p @ 60 Hz 1920 x 1080p at 60 Hz 640 x 480p @ 72 Hz 640 x 480p @ 72 Hz 1920 x 1080i at 50 Hz... -
Page 38: Troubleshooting
APPENDIX 6.3 Troubleshooting Problems Possible Cause and Solution No picture. • Check if the LCD monitor is turned ON. • Check if the power cord is properly connected to the LCD monitor. • LED indicator is OFF. • Check if the power cord is plugged into the power outlet. •... -
Page 39: Transporting The Lcd Monitor
1. Remove the base stand. Press on the release latch and detach the base stand from the LCD monitor. Release latch SC-2402/SC-2702 2. Remove the base. Pinch the latches on the base and detach the arm from the base. SC-2202 SC-2402/SC-2702... - Page 40 5. Place the upper foam cushion on the top of the LCD monitor. 6. Place the accessories on the designated area (if necessary). 7. Close and tape the box. SC-2202 SC-2402 SC-2702 Note: It is recommended to use the original packaging box.
-
Page 41: Chapter 7: Specifications
Chapter 7: Specifications CHAPTER 7: SPECIFICATIONS 7.1 Display Specifications SC-2202 SC-2402 SC-2702 Panel Panel Size 21.5” 23.8” 27” Max. Resolution FHD 1920 x 1080 FHD 1920 x 1080 FHD 1920 x 1080 Pixel Pitch 0.248 mm 0.275 mm 0.311 mm... -
Page 42: Display Dimensions
SPECIFICATIONS 7.2 Display Dimensions SC-2202 45.5 511.4(Outline dimension 205.7 205.7 M4xL10 254.8 SC-2402 41.8 540.1 533.4 14.9 M4*P0.7*L10(SCREW HOLE "A") CVBS 226.5 226.4... - Page 43 SPECIFICATIONS SC-2702 47.4 256.9 256.9 613.8 14.3 M4*P0.7*L10(SCREW HOLE "A") 226.5 AG Neovo Company Address: 5F-1, No. 3-1, Park Street, Nangang District, Taipei, 11503, Taiwan. Copyright © 2022 AG Neovo. All rights reserved. SC-2202/SC-2402/SC-2702 Eprel registration number: 1012008/706580/920671 SC2220/SC2420/SC2720_UM_V010...
