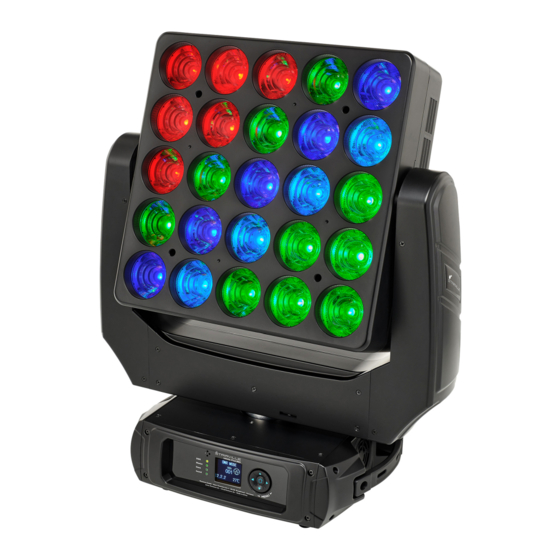

- Page 1 Infinite Pixel 250 Moving Head...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 20.04.2023, ID: 524843...
-
Page 3: Table Of Contents
7.6 Functions in 10-channel DMX mode..............21 7.7 Functions in 18-channel DMX mode..............22 7.8 Functions in 108-channel DMX mode..............24 Technical specifications....................26 Plug and connection assignment................. 27 Troubleshooting........................28 Cleaning............................ 29 Protecting the environment................... 30 Infinite Pixel 250 Moving Head... - Page 4 Infinite Pixel 250 Moving Head...
-
Page 5: General Information
The individual steps of an instruction are numbered consecutively. The result of a step is indented and highlighted by an arrow. Example: Switch on the device. Press [Auto]. ð Automatic operation is started. Switch off the device. Infinite Pixel 250 Moving Head... -
Page 6: Symbols And Signal Words
Warning signs Type of danger Warning – high-voltage. Warning – dangerous optical radiation. Warning – suspended load. Warning – danger zone. Infinite Pixel 250 Moving Head... -
Page 7: Safety Instructions
If work has to be performed in the area of movement or in the near vicinity of the device, it must remain turned off. Infinite Pixel 250 Moving Head... - Page 8 The plasticiser contained in the rubber feet of this product may possibly react with the coating of your surface and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the surface and use a suitable underlay if necessary, i.e. felt pads or similar. Infinite Pixel 250 Moving Head...
-
Page 9: Features
For technological reasons, the light output of LEDs decreases over their lifetime. This effect increases with higher operating temperature. You can extend the service life of the illuminants by providing adequate ventilation and operating the LEDs with the lowest possible brightness. Infinite Pixel 250 Moving Head... -
Page 10: Installation
The ambient temperature must always be below 40 °C (104 °F). NOTICE! Possible damage caused by movements of the device Always ensure that enough space is free around the device for the movements of the head (pan, tilt). Infinite Pixel 250 Moving Head... - Page 11 Omega brackets. There, you can fasten adapters such as half couplers, trigger clamps, c-hooks etc. The safety cable must be threaded through the cut-outs (B) on the bottom of the housing. Please note that this device must not be connected to a dimmer. Infinite Pixel 250 Moving Head...
-
Page 12: Starting Up
DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so Control via ArtNet ARTNET IN ARTNET IN ARTNET OUT Infinite Pixel 250 Moving Head... -
Page 13: Connections And Controls
2 LEDs | transport protection. Move the lever to to lock the movable head. 4 Handles 5 Operating panel with display 6 Fan grid 7 Connection panel with power supply, fuse holder and DMX connections Infinite Pixel 250 Moving Head... - Page 14 19 [DMX In] | DMX input, designed as XLR panel plug, 5-pin 20 [DMX Out] | DMX output, designed as XLR panel socket, 3-pin 21 [DMX Out] | DMX output, designed as XLR panel socket, 5-pin Infinite Pixel 250 Moving Head...
-
Page 15: Operating
If you close the main menu without making changes, the unit continues to operate with the previous settings. All previously made settings are retained even when you disconnect the device from the power grid. Infinite Pixel 250 Moving Head... -
Page 16: Dmx Address
‘Art-Net’ ARTNET signal input ‘IP Set’ ‘2.xxx.xxx.xxx’ IP address ‘Sub-Mask’ ‘255.0.0.0’ Subnet mask ‘Universe’ ‘Net’ Net settings between ‘0’ and ‘127’ ‘Sub-Uni’ Subnet settings between ‘0’ and ‘15’ ‘Port’ Port settings between ‘0’ and ‘15’ Infinite Pixel 250 Moving Head... -
Page 17: Dmx Mode
‘Green’ ‘000’ … ‘255’ Adjusts the intensity for green. ‘Blue’ ‘000’ … ‘255’ Adjusts the intensity for blue. ‘White’ ‘000’ … ‘255’ Adjusts the intensity for white. ‘Strobe’ ‘000’ … ‘255’ Adjusts the strobe speed. Infinite Pixel 250 Moving Head... -
Page 18: Operating Mode 'Slave
Press until the display shows ‘Sound Mode’ and confirm your selection with . ð The device follows the rhythm of the background music or sounds detected by the built-in microphone. Infinite Pixel 250 Moving Head... -
Page 19: Settings
180 °. ‘Lock’ ‘On’ The key lock is activated. All keys have no function. To release the key lock, press simultaneously for 5 seconds. ‘Off’ The key lock is deactivated. Infinite Pixel 250 Moving Head... -
Page 20: System Information
Displays the current temperature of the device base. ‘UID’ Displays the UID codes of the LEDs. ‘LED Time’ Displays the total running time of the LEDs. ‘Power Time’ Displays the total running time of the device. Infinite Pixel 250 Moving Head... -
Page 21: Menu Overview
Fixed position (0° to 270°) 128…191 Continuous clockwise tilt movement, speed decreasing 192…255 Continuous anti-clockwise tilt movement, speed increasing 0…255 Dimmer intensity (0 % to 100 %) 0…255 Intensity red (0 % to 100 %), all LEDs together Infinite Pixel 250 Moving Head... -
Page 22: Functions In 18-Channel Dmx Mode
Fine adjustment for inclination (tilt) 0…255 Auto-correction of rotation (pan) and inclination (tilt), decreasing speed Rotation (pan) 0…127 No movement 128…191 Continuous clockwise rotation, speed decreasing 192…255 Continuous anti-clockwise rotation, speed increasing Inclination (tilt) 0…127 No movement Infinite Pixel 250 Moving Head... - Page 23 Running speed of preprogrammed automatic show (when channel 16 = 8… 255) 0…255 Running speed decreasing Reset 0…9 No function 10…50 Reset, if the value is transmitted for at least 5 seconds 51…255 No function Infinite Pixel 250 Moving Head...
-
Page 24: Functions In 108-Channel Dmx Mode
Intensity White (0 % to 100 %), LED 2 0…255 Intensity Red (0 % to 100 %), LED 3 0…255 Intensity Green (0 % to 100 %), LED 3 0…255 Intensity Blue (0 % to 100 %), LED 3 Infinite Pixel 250 Moving Head... - Page 25 Intensity Green (0 % to 100 %), LED 25 0…255 Intensity Blue (0 % to 100 %), LED 25 0…255 Intensity White (0 % to 100 %), LED 25 Numbering of the separately control‐ lable LEDs ö & Infinite Pixel 250 Moving Head...
-
Page 26: Technical Specifications
Mounting options Wall mounting, truss mounting Dimensions (W × H × D) 517 mm × 604 mm × 281 mm Weight 18.2 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) Infinite Pixel 250 Moving Head... -
Page 27: Plug And Connection Assignment
A five-pin XLR socket serves as DMX output, a five-pin XLR plug serves as DMX input. The drawing below and the table show the pin assignment of a matching coupling. Assignment Ground (shielding) Signal inverted (DMX–, ‘cold’) Signal (DMX+, ‘hot’) unused / second connection (DMX–) unused / second connection (DMX+) Infinite Pixel 250 Moving Head... -
Page 28: Troubleshooting
DMX interface circuit. 4. Try using another DMX controller. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. Infinite Pixel 250 Moving Head... -
Page 29: Cleaning
Before cleaning, switch off the device and disconnect mains-oper‐ ated devices from the mains. Only use pH-neutral, solvent-free and non-abrasive cleaning agents. Clean the unit with a slightly damp lint-free cloth. Infinite Pixel 250 Moving Head... -
Page 30: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Infinite Pixel 250 Moving Head... - Page 32 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
