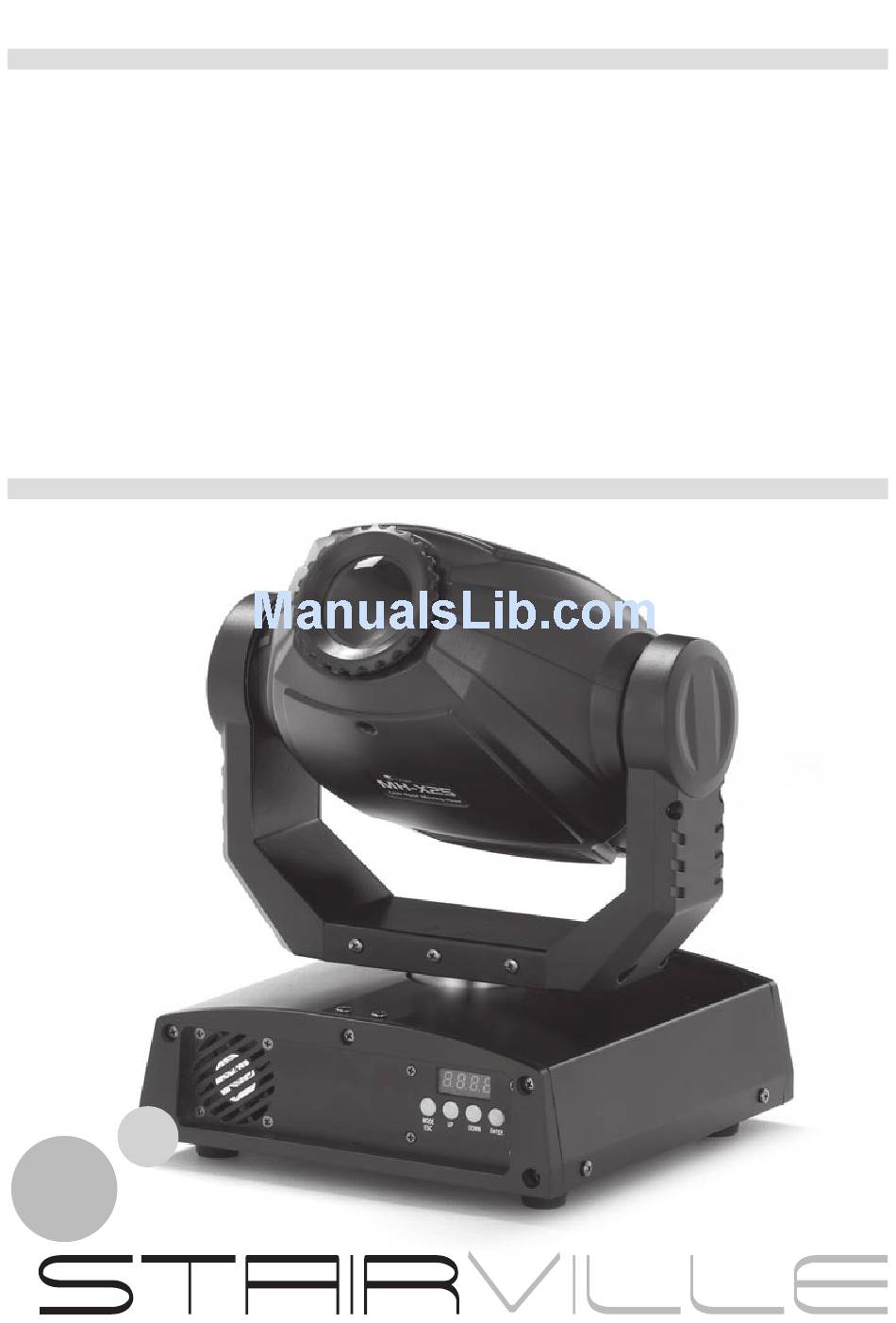

- Page 1 ‘ wner anual led spot moving head...
-
Page 2: Table Of Contents
Congratulations on your purchase of our Moving Head. With your MH- X25 you can easily set up an impressive light show. This model provides high quality workmanship with a range of useful features. To achieve the best performance and safety operation, you must read all of this manual before using it in a live situation. -
Page 3: Safety Instruction
Safety Instruction For your own safety you must read this section in full first! Risk of electrical shock. • Connect the device only to an electrical wall socket providing a mains voltage of 230 V / 50 Hz. • NEVER operate the device if the power plug or power the cord is damaged. - Page 4 Risk of fire! • NEVER leave the device unattended while it is switched on. • Never cover the ventilation slots of the device while it is switched on. Avoid placing this device in locations that provide insufficient ventilation or hot locations and do not place the device in direct sunlight or under strong artificial light sources. Otherwise, it may overheat and become irreparably damaged.
-
Page 5: Control Channel
12 Control Channel The device can be controlled by 12 channel DMX512, details as follow: Channel DMX value Feature 1 PAN 0~255 540° 2 TILT 0~255 270° 3 PIN 16bit 0~255 16bit spinner 4 TILT 16bit 0~255 16bit spinner 5 Speed 0~255 Controllable speed with decreasing White... - Page 6 Channel DMX value Feature 64~71 Gobo 7 shake, from slow to fast 72~79 Gobo 6 shake, from slow to fast 9 Gobo wheel 80~87 Gobo 5 shake, from slow to fast 88~95 Gobo 4 shake, from slow to fast 96~103 Gobo 3 shake, from slow to fast 104~111 Gobo 2 shake, from slow to fast...
-
Page 7: Control Channel
Channel DMX value Feature Reserved 8~23 Program built-in 1 24~39 Program built-in 2 40~55 Program built-in 3 56~71 Program built-in 4 72~87 Program built-in 5 88~103 Program built-in 6 104~119 Program built-in 7 12 Program built-in 120~135 Program built-in 8 136~151 Sound control 1 152~167... - Page 8 Channel DMX value Feature 128~191 Positive rainbow effect with increasing speed 3 Colour wheel 192~255 Negative rainbow effect with increasing speed Close Open 4 Shutter 8~215 Strobe effect with increasing speed 210~255 Open 5 Gobo wheel 64~71 Gobo 7 shake, from slow to fast 72~79 Gobo 6 shake,...
-
Page 9: Control Board
Control Board Password channel Service Function. Press the MODE/ESC button for 10 seconds. Then press the UP/DOWN buttons, to enter the password 2323 and enter the function. Adjustment for Pan Adjustment for Tilt Adjustment for Gobo wheel Adjustment for Gobo Rotation Adjustment for Colour wheel Press the UP/DOWN buttons repeatedly until you reach the desired adjustment. - Page 10 - 10 -...
-
Page 11: Maintenance
Maintenance To keep up proper ventilating and lighting effects, clean the fan and lens regularly. Wipe the housing only with a slightly damp cloth. Never use ag- gressive cleansers. Disposal Do not dispose of the device at the end of his operating life in your normal domestic waste. - Page 12 Contact: Musikhaus Thomann Treppendorf 30 96138 Burgebrach Germany www.thomann.de...
