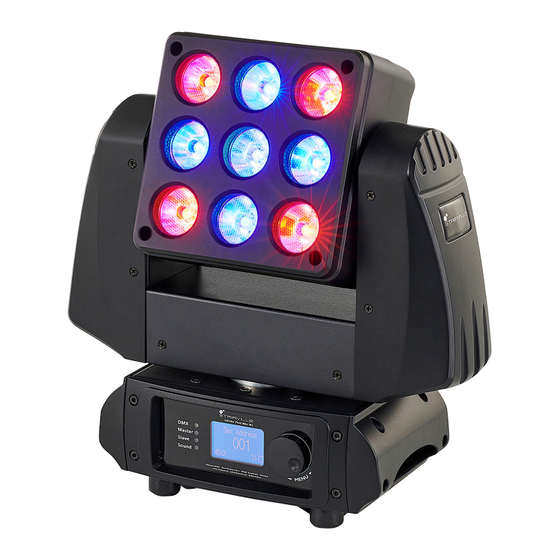

- Page 1 Infinite Pixel Mini 90 Moving Head...
- Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 03.05.2023, ID: 539779...
-
Page 3: Table Of Contents
7.4 Functions in 9-channel DMX mode................ 22 7.5 Functions in 17-channel DMX mode..............23 7.6 Functions in 45-channel DMX mode..............25 Technical specifications....................27 Plug and connection assignment................. 28 Troubleshooting........................29 Cleaning............................ 30 Protecting the environment................... 31 Infinite Pixel Mini 90 Moving Head... - Page 4 Infinite Pixel Mini 90 Moving Head...
-
Page 5: General Information
The individual steps of an instruction are numbered consecutively. The result of a step is indented and highlighted by an arrow. Example: Switch on the device. Press [Auto]. ð Automatic operation is started. Switch off the device. Infinite Pixel Mini 90 Moving Head... -
Page 6: Symbols And Signal Words
Warning signs Type of danger Warning – high-voltage. Warning – dangerous optical radiation. Warning – suspended load. Warning – danger zone. Infinite Pixel Mini 90 Moving Head... -
Page 7: Safety Instructions
If work has to be performed in the area of movement or in the near vicinity of the device, it must remain turned off. Infinite Pixel Mini 90 Moving Head... - Page 8 The plasticiser contained in the rubber feet of this product may possibly react with the coating of your surface and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the surface and use a suitable underlay if necessary, i.e. felt pads or similar. Infinite Pixel Mini 90 Moving Head...
-
Page 9: Features
For technological reasons, the light output of LEDs decreases over their lifetime. This effect increases with higher operating temperature. You can extend the service life of the illuminants by providing adequate ventilation and operating the LEDs with the lowest possible brightness. Infinite Pixel Mini 90 Moving Head... -
Page 10: Installation
The ambient temperature must always be below 40 °C (104 °F). NOTICE! Possible damage caused by movements of the device Always ensure that enough space is free around the device for the movements of the head (pan, tilt). Infinite Pixel Mini 90 Moving Head... - Page 11 Omega brackets. There, you can fasten adapters such as half couplers, trigger clamps, c-hooks etc. The safety cable must be threaded through the cut-outs on the bottom of the housing. Please note that this device must not be connected to a dimmer. Infinite Pixel Mini 90 Moving Head...
-
Page 12: Starting Up
Connect the DMX output of the master device to the DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so Infinite Pixel Mini 90 Moving Head... -
Page 13: Connections And Controls
Connections and controls Overview & ö Max. 6A 1 Movable head 2 LEDs 3 Handles 4 Operating panel with display 5 Fan grid 6 Connection panel with power supply, fuse holder and DMX connections Infinite Pixel Mini 90 Moving Head... - Page 14 15 [DMX Out] | DMX output, designed as XLR panel socket, 5-pin 16 [Power In] | lockable input socket (Power Twist) for the power supply of the device 17 [Power Out] | lockable output socket (Power Twist) for powering a connected device Infinite Pixel Mini 90 Moving Head...
-
Page 15: Operating
If you close the main menu without making changes, the unit continues to operate with the previous settings. All previously made settings are retained even when you disconnect the device from the power grid. Infinite Pixel Mini 90 Moving Head... -
Page 16: Dmx Address
Press the jog wheel to confirm the selection. Turn the jog wheel repeatedly until the display shows ‘Show1’ . Press the jog wheel to confirm the selection. ð The automatic show will start immediately. Infinite Pixel Mini 90 Moving Head... -
Page 17: Manual Control
Turn the jog wheel repeatedly until the display shows ‘Sound Mode’ . Press the jog wheel to confirm the selection. ð The device follows the rhythm of the background music or sounds detected by the built-in microphone. Infinite Pixel Mini 90 Moving Head... -
Page 18: Pan Inversion
Turn the jog wheel to select between ‘Off’ (the device is blacked out) and ‘Hold’ (the last setting is retained). Once the display shows the desired value, press the jog wheel to confirm the setting. Infinite Pixel Mini 90 Moving Head... -
Page 19: Dimmer Curves
Turn the jog wheel to select between ‘Always on’ (display illumination is per‐ manently on) and ‘60s Off’ (display illumination is switched off after 60 sec‐ onds). Once the display shows the desired value, press the jog wheel to confirm the setting. Infinite Pixel Mini 90 Moving Head... -
Page 20: Calibration
Press the jog wheel to confirm the selection. Turn the jog wheel to select between ‘Silent’ (fan off) and ‘Smart’ (maximum speed). Once the display shows the desired value, press the jog wheel to confirm the setting. Infinite Pixel Mini 90 Moving Head... -
Page 21: Auto-Correction Of Pan And Tilt
‘LED Time’ Displays the total running time of the LEDs. ‘Power Time’ Displays the total running time of the device. Once the display shows the desired value, press the jog wheel to confirm the setting. Infinite Pixel Mini 90 Moving Head... -
Page 22: Menu Overview
Intensity red (0 % to 100 %), all LEDs together 0…255 Intensity green (0 % to 100 %), all LEDs together 0…255 Intensity blue (0 % to 100 %), all LEDs together 0…255 Intensity blue (0 % to 100 %), all LEDs together Infinite Pixel Mini 90 Moving Head... -
Page 23: Functions In 17-Channel Dmx Mode
Dimmer intensity (0 % to 100 %) 0…255 Intensity red (0 % to 100 %), all LEDs together 0…255 Intensity green (0 % to 100 %), all LEDs together 0…255 Intensity blue (0 % to 100 %), all LEDs together Infinite Pixel Mini 90 Moving Head... - Page 24 Pixel effect 6 Running speed pixel effect (if channel 18 = 8…255) 0…255 Running speed increasing Reset 0…9 No function 10…50 Reset, if the value is transmitted for at least 5 seconds 51…255 No function Infinite Pixel Mini 90 Moving Head...
-
Page 25: Functions In 45-Channel Dmx Mode
Intensity Blue (0 % to 100 %), LED 2 0…255 Intensity White (0 % to 100 %), LED 2 0…255 Intensity Red (0 % to 100 %), LED 3 0…255 Intensity Green (0 % to 100 %), LED 3 Infinite Pixel Mini 90 Moving Head... - Page 26 Intensity Green (0 % to 100 %), LED 9 0…255 Intensity Blue (0 % to 100 %), LED 9 0…255 Intensity White (0 % to 100 %), LED 9 Numbering of the separately control‐ lable LEDs ö & Infinite Pixel Mini 90 Moving Head...
-
Page 27: Technical Specifications
Dimensions (W × H × D) 338 mm × 349 mm × 157 mm Weight 6.4 kg Ambient conditions Temperature range 0 °C…40 °C Relative humidity 20 %…80 % (non-condensing) Infinite Pixel Mini 90 Moving Head... -
Page 28: Plug And Connection Assignment
The drawing below and the table show the pin assignment of a matching coupling. Assignment Ground (shielding) Signal inverted (DMX–, ‘cold’) Signal (DMX+, ‘hot’) unused / second connection (DMX–) unused / second connection (DMX+) Infinite Pixel Mini 90 Moving Head... -
Page 29: Troubleshooting
DMX interface circuit. 4. Try using another DMX controller. If the procedures recommended above do not succeed, please contact our Service Center. You can find the contact information at www.thomann.de. Infinite Pixel Mini 90 Moving Head... -
Page 30: Cleaning
Before cleaning, switch off the device and disconnect mains-oper‐ ated devices from the mains. Only use pH-neutral, solvent-free and non-abrasive cleaning agents. Clean the unit with a slightly damp lint-free cloth. Infinite Pixel Mini 90 Moving Head... -
Page 31: Protecting The Environment
Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Infinite Pixel Mini 90 Moving Head... - Page 32 Notes Infinite Pixel Mini 90 Moving Head...
- Page 33 Notes Infinite Pixel Mini 90 Moving Head...
- Page 34 Notes Infinite Pixel Mini 90 Moving Head...
- Page 36 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
