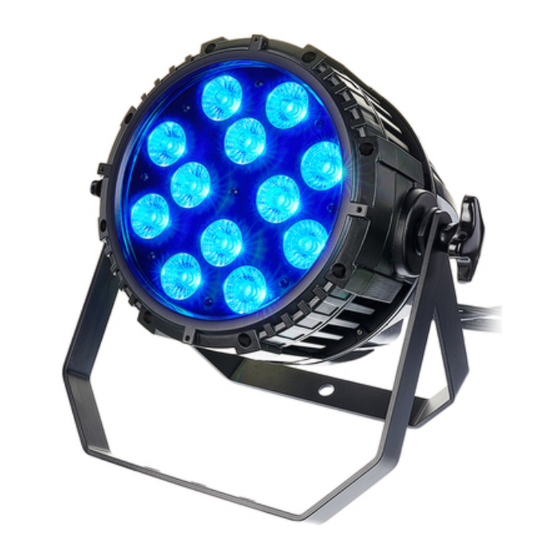

Outdoor Stage Par Pro 12 × 8W QCL MKII
LED PAR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Outdoor Stage Par Pro 12x8W QCL MKII and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stairville Outdoor Stage Par Pro 12x8W QCL MKII

Summary of Contents for Stairville Outdoor Stage Par Pro 12x8W QCL MKII

  • Page 1 Outdoor Stage Par Pro 12 × 8W QCL MKII LED PAR...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 21.07.2023, ID: 518405 (V3)

  • Page 3: Table Of Contents

    Table of contents Table of contents General information..........................6 1.1 Symbols and signal words....................... 6 Safety................................9 Features............................... 12 Installation..............................14 Starting up..............................19 Connections and controls........................21 Operating..............................23 7.1 Starting the device........................... 23 7.2 Main menu............................23 7.3 Menu overview..........................30 7.4 Functions in 1-channel DMX mode...................
  • Page 4 Table of contents Cleaning............................... 41 Protecting the environment......................42 Outdoor Stage Par Pro 12 × 8W QCL MKII LED PAR...
  • Page 5 Outdoor Stage Par Pro 12 × 8W QCL MKII LED PAR...

  • Page 6: General Information

    General information General information This document contains important instructions for the safe operation of the product. Read and follow the safety instructions and all other instructions. Keep the document for future refer‐ ence. Make sure that it is available to all those using the product. If you sell the product to another user, be sure that they also receive this document.
  • Page 7 General information Signal word Meaning DANGER! This combination of symbol and signal word indicates an immediate dangerous situation that will result in death or serious injury if it is not avoided. WARNING! This combination of symbol and signal word indicates a pos‐ sible dangerous situation that can result in death or serious injury if it is not avoided.
  • Page 8 General information Warning signs Type of danger Warning – suspended load. Warning – danger zone. Outdoor Stage Par Pro 12 × 8W QCL MKII LED PAR...

  • Page 9: Safety

    Safety Safety Intended use This device is intended for use as an electronic lighting effect by means of LED technology. The device is designed for professional use only and is not suitable for use in households. Use the device only as described in this user manual. Any other use or use under other operating con‐ ditions is considered to be improper and may result in personal injury or property damage.
  • Page 10 Safety DANGER! Danger to life due to electric current! A short circuit could lead to a fire hazard and risk of death. Do not modify the mains cable or the plug! In case of isolation damage, disconnect immediately the power supply and arrange repair. If in doubt, seek advice from a qualified electrician. DANGER! Danger to life due to electric current! Within the device there are areas where high voltages may be present.
  • Page 11 Safety NOTICE! Risk of fire due to covered vents and neighbouring heat sources! If the vents of the device are covered or the device is operated in the immediate vicinity of other heat sources, the device can over‐ heat and burst into flames. Never cover the device or the vents. Do not install the device in the immediate vicinity of other heat sources.

  • Page 12: Features

    Features Features Due to its sturdy and weather-proof housing made of die-cast aluminium, the device is espe‐ cially suitable for outdoor use. With the very bright four-colour LEDs, it is particularly suitable for professional lighting tasks. Special features of the device: 12 ×...
  • Page 13 Features Information about protection Equipment with protection class IP65 are dust-tight and completely protected against contact class IP65 (first code number). They are also protected against splash water from any angle (second code digit). That is why this equipment can also be used outdoors. Event technology equipment is generally only designed for temporary use however (event lighting) and not for permanent use outdoors.

  • Page 14: Installation

    Installation Installation Unpack and check carefully there is no transportation damage before using the unit. Keep the equipment packaging. To fully protect the product against vibration, dust and moisture during transportation or storage use the original packaging or your own packaging material suitable for transport or storage, respectively.
  • Page 15 Installation NOTICE! Risk of overheating due to bad ventilation! If the device is badly ventilated, the device can overheat. Do not operate the unit at ambient temperatures outside the specified tempera‐ ture range (see chapter "Technical data" of the user manual). Always ensure sufficient ventilation at the operating location.
  • Page 16 Installation NOTICE! Data transfer errors due to improper wiring! If the DMX connections are wired incorrectly, this can cause errors during the data transfer. Do not connect the DMX input and output to audio devices, e.g. mixers or ampli‐ fiers. Use special DMX cables for the wiring instead of normal microphone cables.
  • Page 17 Installation The safety cable must be attached to the bracket. Please note that this device must not be connected to a dimmer. Outdoor Stage Par Pro 12 × 8W QCL MKII LED PAR...
  • Page 18 Installation Connecting the DMX IP65 con‐ nectors ö Proceed as follows to connect the DMX-IP65 connectors: Insert the plug completely and straight into the coupling. Make sure that the flexible sealing ring has complete contact. Turn the union nut straight onto the thread of the coupling. Hand-tighten the union nut. Outdoor Stage Par Pro 12 ×...

  • Page 19: Starting Up

    Starting up Starting up Create all connections while the device is off. Use the shortest possible high-quality cables for all connections. Take care when running the cables to prevent tripping hazards. Connections in DMX mode Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device.
  • Page 20 Starting up Connections in ‘Master / When you configure a group of devices in ‘Master / Slave’ mode, the first unit will control the Slave‘ mode others. This feature is especially useful to start a show without much programming. Connect the DMX output of the master unit to the DMX input of the first slave unit.

  • Page 21: Connections And Controls

    Connections and controls Connections and controls Back & ö Power Out Max.: 6A Outdoor Stage Par Pro 12 × 8W QCL MKII LED PAR...
  • Page 22 Connections and controls 1 [Power In] | Power cord for the power supply of the device (with special plug, screw-mountable) 2 [Power Out] | Power cord for the power supply of a connected device (special coupling, screw-mountable) 3 [DMX In] | DMX input cable (IP65DMX plug, screw-mountable) 4 [DMX Out] | DMX output cable (IP65DMX coupling, screw-mountable) 5 Display 6 [Down] | Decreases the displayed value by one.

  • Page 23: Operating

    Operating Operating 7.1 Starting the device Connect the device to the power supply to start operation. After a few seconds, the display indicates that a reset is in progress. The device is then ready for use. 7.2 Main menu Press [Mode] to activate the main menu and select an operating mode. Use [Up] and [Down] to change the respectively indicated value.
  • Page 24 Operating DMX mode Press [Mode] repeatedly until the display shows ‘d.xxx’ . Now you can set the number of the first DMX channel to be used by the device (DMX address). Use [Up] and [Down] to select a value between 1 and 512 (the display shows ‘d.001’ … ‘d.510’ ). Make sure that this number matches the configuration of your DMX controller.
  • Page 25 Operating Operating mode ‘Show/Master’ Press [Mode] repeatedly until the display shows ‘Pr.xx’ . Now you can select one of the 11 pre‐ programmed automatic shows. Use [Up] and [Down] to select a value between ‘Pr.01’ and ‘Pr.11’ . Programme Description Pr.01 Constant colour hue Pr.02...
  • Page 26 Operating This setting is only relevant if the device is not controlled via DMX. The device can operate in stand-alone mode or control connected devices of the same type, that must be configured as slaves. Outdoor Stage Par Pro 12 × 8W QCL MKII LED PAR...
  • Page 27 Operating Settings programme Pr.01 For the programme ‘Pr.01’ , you can choose from 14 colours. Select programme ‘Pr.01’ first, then confirm with ‘Setup’ . Now you can use [Up] and [Down] to select one of the following options: Value Description ‘1.--r’...
  • Page 28 Operating Value Description ‘13.gu’ Red, green and white ‘14.Uu’ Red, blue and white If the colour value ‘9.-FL’ is selected, you can use [Setup] to open the colour setting submenu. With [Up] and [Down] you can set the intensity of red, green, blue and white individually in a range from 0 to 255.
  • Page 29 Operating Operating mode ‘Slave’ Press [Mode] repeatedly until the display shows ‘SLAv’ . The device is instantly in ‘slave’ mode. This setting is only relevant if the device is operating as Slave controlled by a Master, but not via DMX. Outdoor Stage Par Pro 12 ×...

  • Page 30: Menu Overview

    Operating 7.3 Menu overview Mode Pr.xx Auto d.xxx SLAv Pr.01 ... Pr.11 d.001 ... d.512 SP.01 ... SP.99, SP.FL 1-ch ... 7-ch FS00 ... FS99 Outdoor Stage Par Pro 12 × 8W QCL MKII LED PAR...

  • Page 31: Functions In 1-Channel Dmx Mode

    Operating 7.4 Functions in 1-channel DMX mode Channel Value Function Constant colour Dark 1…22 23…45 Green 46…68 Blue 69…91 Cyan 92…114 Yellow 115…137 Orange 138…160 Pink 161…183 Purple 184…206 Dark blue 207…229 Light green Outdoor Stage Par Pro 12 × 8W QCL MKII LED PAR...

  • Page 32: Functions In 4-Channel Dmx Mode

    Operating Channel Value Function 230…252 White 253…255 Warm white 7.5 Functions in 4-channel DMX mode Channel Value Function 0…255 Intensity red (0 % to 100 %) 0…255 Intensity Green (0 % to 100 %) 0…255 Intensity Blue (0 % to 100 %) 0…255 Intensity cold white (0 % to 100 %) Outdoor Stage Par Pro 12 ×...

  • Page 33: Functions In 5-Channel Dmx Mode

    Operating 7.6 Functions in 5-channel DMX mode Channel Value Function 0…255 Dimmer (0 % to 100 %) 0…255 Intensity red (0 % to 100 %) 0…255 Intensity Green (0 % to 100 %) 0…255 Intensity Blue (0 % to 100 %) 0…255 Intensity cold white (0 % to 100 %) 7.7 Functions in 7-channel DMX mode...
  • Page 34 Operating Channel Value Function 13…18 Colour 3 251…255 Colour 43 Running speed, if channel 7 = 23…255 0…255 Slow…fast 0…255 Intensity Green (0 % to 100 %), if channel 7 = 0, otherwise without function 0…255 Intensity Blue (0 % to 100 %), if channel 7 = 0, otherwise without function 0…255 Intensity cold white (0 % to 100 %), if channel 7 = 0, otherwise without function 0…9...
  • Page 35 Operating Channel Value Function 115…137 Pr.06 Random programme 1 138…160 Pr.07 Random programme 2 161…183 Pr.08 Slow transition bright / dark, red 184…206 Pr.09 Slow transition bright / dark, green 207…229 Pr.10 Slow transition bright / dark, blue 230…255 Pr.11 Slow transition bright / dark, cold white Outdoor Stage Par Pro 12 ×...

  • Page 36: Technical Specifications

    Technical specifications Technical specifications Light source 12 × 4in1 LED, 8 W Optical properties Beam angle 25° Power Out Max.: 6A Control DMX, buttons and display Number of DMX channels 1, 4, 5 or 7 Input connections Power supply Power cord with IP65 screw connector and splash-proof protective safety plug IP44 DMX control DMX cable with IP65 XLR plug, 3-pin...
  • Page 37 Technical specifications Ambient conditions Temperature range 0 °C - 40 °C Relative humidity 20 %…80 % (non-condensing) Further information Design Outdoor housing Colour mix RGBW LED type x-in-1 Floor housing Fanless Remote control not possible Wireless DMX Housing colour black Outdoor Stage Par Pro 12 ×...

  • Page 38: Plug And Connection Assignments

    Plug and connection assignments Plug and connection assignments Introduction This chapter will help you select the right cables and plugs to connect your valuable equip‐ ment so that a perfect light experience is guaranteed. Please take our tips, because especially in ‘Sound & Light’ caution is indicated: Even if a plug fits into a socket, the result of an incorrect connection may be a destroyed DMX controller, a short circuit or ‘just’...

  • Page 39: Troubleshooting

    Troubleshooting Troubleshooting NOTICE! Data transfer errors due to improper wiring! If the DMX connections are wired incorrectly, this can cause errors during the data transfer. Do not connect the DMX input and output to audio devices, e.g. mixers or ampli‐ fiers.
  • Page 40 Troubleshooting Symptom Remedy The device does not work, no Check the mains connection and the fuse. light No response to the DMX Con‐ 1. Check the DMX connectors and cables for proper con‐ troller nection. 2. Check the address settings and the DMX polarity. 3.
  • Page 41 Cleaning Cleaning Optical lenses Clean the optical lenses, that are accessible from the outside, regularly in order to optimize the light output. The frequency of cleaning depends on the operating environment: wet, smoky or particularly dirty surroundings can cause more accumulation of dirt on the optics of the device.
  • Page 42 Protecting the environment Protecting the environment Disposal of the packaging mate‐ rial For the transport and protective packaging, environmentally friendly materials have been chosen that can be supplied to normal recycling. Ensure that plastic bags, packaging, etc. are properly disposed of. Do not just dispose of these materials with your normal household waste, but make sure that they are collected for recycling.
