Summary of Contents for Stairville Stage TRI LED Bundle Extension

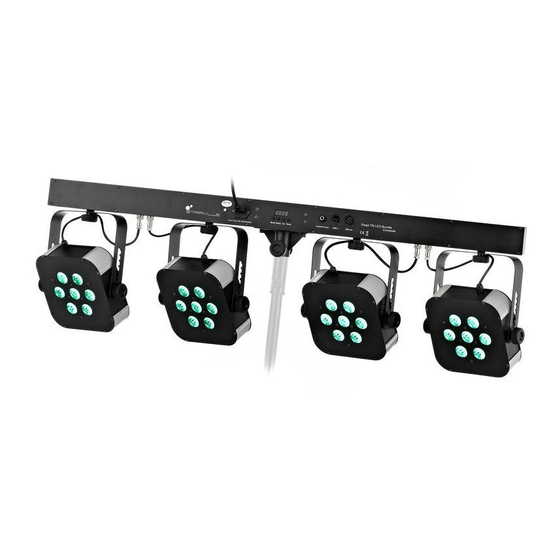

  • Page 1 Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 2 Thomann GmbH Hans-Thomann-Straße 1 96138 Burgebrach Germany Telephone: +49 (0) 9546 9223-0 Internet: www.thomann.de 18.07.2022, ID: 279035 (V7)

  • Page 3: Table Of Contents

    7.6 Functions in 4-channel DMX mode (d.-P2)................40 7.7 Functions in 7-channel DMX mode (d.-P7)................41 7.8 Functions in 8-channel DMX mode (d.-P3) ................43 7.9 Functions in 14-channel DMX mode (d.-P4)................44 Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 4 7.10 Functions in 15-channel DMX mode (d.-P6)................ 45 7.11 Remote control functions......................47 7.12 Reset to factory defaults......................49 Technical specifications........................50 Plug and connection assignments....................52 Cleaning............................... 53 Protecting the environment......................54 Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 5 Stage TRI LED Bundle Extension LED Lighting Set...

  • Page 6: General Information

    Our products and user manuals are subject to a process of continuous development. We there‐ fore reserve the right to make changes without notice. Please refer to the latest version of the user manual which is ready for download under www.thomann.de. Stage TRI LED Bundle Extension LED Lighting Set...

  • Page 7: Further Information

    Personal consultation For personal consultation please contact our technical hotline. If you have any problems with the device the customer service will Service gladly assist you. 1.2 Notational conventions This manual uses the following notational conventions: Stage TRI LED Bundle Extension LED Lighting Set...

  • Page 8: Symbols And Signal Words

    Ä ‘Cross-references’ on page 8. 1.3 Symbols and signal words In this section you will find an overview of the meaning of symbols and signal words that are used in this manual. Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 9 Warning signs Type of danger Warning – high-voltage. Warning – hot surface. Warning – dangerous optical radiation. Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 10 General information Warning signs Type of danger Warning – suspended load. Warning – danger zone. Stage TRI LED Bundle Extension LED Lighting Set...

  • Page 11: Safety Instructions

    Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and choke! Never let children unattended use electrical devices. Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 12 15 minutes. NOTICE! Risk of fire Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked flames. Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 13 Damages due to disconnection during operation Only operate the unit when all spotlights are connected. The disconnection of LED spotlights during operation may damage the unit. Disconnect the unit from the power supply before disconnecting LED spotlights. Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 14 Possible damage by leaking batteries Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period. Stage TRI LED Bundle Extension LED Lighting Set...

  • Page 15: Features

    For technological reasons, the light output of LEDs decreases over their lifetime. This effect increases with higher operating temperature. You can extend the service life of the illuminants by providing adequate ventilation and operating the LEDs with the lowest possible brightness. Stage TRI LED Bundle Extension LED Lighting Set...

  • Page 16: Installation

    Only operate the unit when all spotlights are connected. The disconnection of LED spotlights during operation may damage the unit. Dis‐ connect the unit from the power supply before disconnecting LED spotlights. Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 17 For error-free operation make use of dedicated DMX cables and do not use ordi‐ nary microphone cables. Never connect the DMX input or output to audio devices such as mixers or ampli‐ fiers. Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 18 Locking screw for fixing the spots on the T-bar and the horizontal orientation (dispersion direction). Electrical connection of the spot at the T-bar (pre-mounted). 1/4" phone socket to connect the foot controller unit (option) Receptacle for stand Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 19 Possible damage by leaking batteries Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a longer period. Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 20 Installation Please note that this device must not be connected to a dimmer. Stage TRI LED Bundle Extension LED Lighting Set...

  • Page 21: Starting Up

    Connect the output of the first DMX device to the input of the second one, and so on to form a daisy chain. Always ensure that the output of the last DMX device in the daisy chain is terminated with a resistor (110 Ω, ¼ W). Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 22 Connect the DMX output of the master device to the DMX input of the first slave device. Then connect the DMX output of the first slave device to the DMX input of the second slave device and so on. Stage TRI LED Bundle Extension LED Lighting Set...

  • Page 23: Connections And Operating Elements

    Connections and operating elements Connections and operating elements Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 24 9 [DMX In] | DMX input 10 [DMX Out] | DMX output 11 [Power Out] | IEC chassis socket for the power supply cable to the next unit of the same type. Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 25 Infrared remote control (item no. 354223, optionally avail‐ Since the universal remote control can be used for several device types, some buttons able) may not be assigned and therefore have no function. & ö Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 26 9 [Dimming] | activates the dimming function for fixed colours. Set the value for each fixed colour using [+] and [–]. 10 [0 … 9] | numeric buttons for direct selection of a fixed colour. 11 [R], [G], [B], [A], [W] | buttons to select the colour shade in dimmer mode. Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 27 2 [Sound Active] | Activates the ‘Sound-control’ mode (playback of sound-controlled automatic shows). 3 [Freeze] | Pauses the running show and resumes it after a break. 4 [Blackout] | Blackouts all LEDs or turns them back on again. Stage TRI LED Bundle Extension LED Lighting Set...

  • Page 28: Operating

    If you don't press any button for about 30 seconds, the display turns off. Press any key to reac‐ tivate the display showing the last menu. The set values are retained even if you disconnect the device from the mains. Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 29 Pr.03 Colour fading 2 Pr.04 Fade in / fade out Pr.05 Colour change 1 Pr.06 Chase 1 Pr.07 Chase 2 Pr.08 Chase 3 Pr.09 Chase 4 Pr.10 Chase 5 Pr.11 Chase 6 Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 30 [Up] and [Down] to select a value between ‘FS00’ (slow) and ‘FS99’ (fast). Settings for programmes 13 and 14: In addition to the adjustment options for programmes 02 to 12 you can set the running colour and the background colour here. Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 31 In the automatic operating mode, the built-in programmes run one after another. To start the automatic sequence from a specific programme, repeatedly press[AUTO]. However, it is not possible to set a certain programme permanently as start programme. Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 32 Highest possible DMX address 2-channel 3-channel 4-channel 7-channel 8-channel 14-channel 15-channel Press [Setup]. Use [Up] and [Down] to select one of the following DMX operating modes: ‘d.-P1’ (3 channels) ‘d.-P2’ (4 channels) ‘d.-P3’ (8 channels) Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 33 Press [Setup]. Now you can adjust the sound-control sensitivity. Use [Up] and [Down] to select a value between 0 (low sensitivity) and 31 (high sensitivity), the display shows ‘SU.00’ … ‘SU.31’ . Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 34 Press [Mode] repeatedly until the display shows ‘Colr’ . Press [Setup]. Use [Up] and [Down] to choose from the following options: Display Description ‘r.000’ … ‘r.255’ ‘G.000’ … ‘G.255’ Green ‘b.000’ … ‘b.255’ Blue Stage TRI LED Bundle Extension LED Lighting Set...

  • Page 35: Menu Overview

    Operating 7.3 Menu overview Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 36 Operating Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 37 Operating Stage TRI LED Bundle Extension LED Lighting Set...

  • Page 38: Functions In 2-Channel Dmx Mode (D.-P5)

    Constant unicoloured pattern in white for all LEDs 80…89 Preprogrammed automatic show no. 1 90…99 Preprogrammed automatic show no. 2 180…189 Preprogrammed automatic show no. 11 190…199 LEDs off 200…209 Constant unicoloured pattern in red for all LEDs Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 39 Preprogrammed automatic show no. 14 240…255 Sound-controlled show Function depends on channel 1 setting Channel 1 = 0…79 No function Channel 1 = 80…239 0…255 Increasing speed Channel 1 = 240…225 0…255 Increasing sensitivity Stage TRI LED Bundle Extension LED Lighting Set...

  • Page 40: Functions In 3-Channel Dmx Mode (D.-P1)

    Intensity red (0 % to 100 %) for all LEDs 0…255 Intensity green (0 % to 100 %) for all LEDs 0…255 Intensity blue (0 % to 100 %) for all LEDs 0…255 Dimmer (0 % to 100 %) Stage TRI LED Bundle Extension LED Lighting Set...

  • Page 41: Functions In 7-Channel Dmx Mode (D.-P7)

    Constant unicoloured pattern in blue for all LEDs 60…69 Constant unicoloured pattern in purple for all LEDs 70…79 Constant unicoloured pattern in white for all LEDs 80…89 Preprogrammed automatic show no. 1 90…99 Preprogrammed automatic show no. 2 Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 42 Function depends on channel 4 setting Channel 4 = 0…79 No function Channel 4 = 80…239 0…255 Increasing speed Channel 4 = 240…255 0…255 Increasing sensitivity Function depends on channel 4 setting Channel 4 = 0…9 Stage TRI LED Bundle Extension LED Lighting Set...

  • Page 43: Functions In 8-Channel Dmx Mode (D.-P3)

    0…255 Intensity green (0 % to 100 %) for all LEDs of spots 3 and 4 0…255 Intensity blue (0 % to 100 %) for all LEDs of spots 3 and 4 Stage TRI LED Bundle Extension LED Lighting Set...

  • Page 44: Functions In 14-Channel Dmx Mode (D.-P4)

    Intensity red (0 % to 100 %) for all LEDs of spot 3 0…255 Intensity green (0 % to 100 %) for all LEDs of spot 3 0…255 Intensity blue (0 % to 100 %) for all LEDs of spot 3 Stage TRI LED Bundle Extension LED Lighting Set...

  • Page 45: Functions In 15-Channel Dmx Mode (D.-P6)

    RGB mode for channels 2 to 15 10…249 Preprogrammed automatic shows 250…255 Sound-controlled show Functions of channels 2 to 15 depend on the setting of channel 1, 0…9 0…255 Dimmer (0 % to 100 %) 0…9 No function Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 46 Intensity red (0 % to 100 %) for all LEDs of spot 4 0…255 Intensity green (0 % to 100 %) for all LEDs of spot 4 0…255 Intensity blue (0 % to 100 %) for all LEDs of spot 4 Stage TRI LED Bundle Extension LED Lighting Set...

  • Page 47: Remote Control Functions

    Operating 7.11 Remote control functions The button functions of the remote control are described in section Ä Chapter 6 ‘Connections and operating elements’ on page 23. Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 48 Use the numeric keys of the remote control to select a static colour directly. This setting is only relevant if the device is not controlled via DMX. Value Static colour Cyan Purple Pink Orange Cool white Light red Light green Light blue Yellow Warm white Green Stage TRI LED Bundle Extension LED Lighting Set...

  • Page 49: Reset To Factory Defaults

    Proceed as follows to reset the device to factory defaults: Switch off the device. Switch the device on again and hold the buttons [Mode ] and [Setup] pressed for about 2 seconds. Stage TRI LED Bundle Extension LED Lighting Set...

  • Page 50: Technical Specifications

    90 W Operating supply voltage 100 - 240 V 50/60 Hz Fuse 5 mm × 20 mm, 2 A, 250 V, slow-blow Battery of the remote control Lithium-ion button cell CR2025, 3 V Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 51 20 %…80 % (non-condensing) Further information Spotlights included Effect units included LED bars included Foot switch optionally available (item no. 279058) Tripod included Case / bag included Remote control optionally available (item no. 354223) Stage TRI LED Bundle Extension LED Lighting Set...

  • Page 52: Plug And Connection Assignments

    The unit offers a 3-pin XLR socket for DMX output and a 3-pin XLR plug for DMX input. Please refer to the drawing and table below for the pin assignment of a suitable XLR plug. Configuration Ground, shielding Signal inverted (DMX–, ‘cold signal’) Signal (DMX+, ‘hot signal’) Stage TRI LED Bundle Extension LED Lighting Set...

  • Page 53: Cleaning

    Before cleaning, switch off the device and disconnect mains-operated devices from the mains. Only use pH-neutral, solvent-free and non-abrasive cleaning agents. Clean the unit with a slightly damp lint-free cloth. Stage TRI LED Bundle Extension LED Lighting Set...

  • Page 54: Protecting The Environment

    Protect used lithium batteries against short circuits, for example by covering the poles with adhesive tape. Permanently built-in lithium batteries must be disposed of together with the device. Please inquire about an appropriate collection point. Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 55 Dispose of this device through an approved waste disposal firm or through your local waste facility. When discarding the device, comply with the rules and regulations that apply in your country. If in doubt, consult your local waste disposal facility. Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 56 Notes Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 57 Notes Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 58 Notes Stage TRI LED Bundle Extension LED Lighting Set...
  • Page 60 Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de...
