F&F BIS-411i Quick Start Manual

Konstantynowska 79/81 95-200 Pabianice
phone/fax: (+48 42) 215 23 83 / 227 09 71 POLAND
http://www.fif.com.pl e-mail: fif@fif.com.pl
ELECTRONIC BI-STABLE
PULSE RELAY
WARRANTY. The F&F products are
covered by a warranty of the 24 months
from the date of purchase. Effective only
with proof of purchase. Contact your
dealeror directly with us. More
information how to make a compliant can
be found on the website:
5 9 0 8 3 1 2
www.fif.com.pl/reklamacje
Do not dispose of this device to a garbage bin with other unsorted waste!
In accordance with the Waste Electrical and Electronic Equipment Act
any household electro-waste can be turned in free of charge and in any
quantity to a collection point established for this purpose, as well as to the
store in the event of purchasing new equipment (as per the old for new rule,
regardless of brand). Electro-waste thrown in the garbage bin or abandoned
in the bosom of nature pose a threat to the environment and human health.
PURPOSE
Electronic bi-stable pulse relays BIS-411 230V enables the user to
actuate lighting or other devices from various locations by means
of control buttons in parallel connection.
L N
BIS
N
- 1 -
TECHNICAL DATA
power supply
contact / current load AC-1
control pulse
max current control buttons
activation delay
signalling of supply
signalling of activation
power consumption
standby
on
working temperature
connection
tightening torque
dimensions
fixing
ingress protection
WIRING DIAGRAM
control impulse: N
L
N
1 3
6
12
11
SUPPLY
1-3 power relay: 100-265V AC
CONTROL INPUTS
6 control inputs
CONTACT
11 power input contact COM
10 output: NC contact (passive)
12 output: NO contact (active)
F&F Filipowski sp. j.
BIS-411i
230V
5 9 8 3 8 1
N/L
230V AC
separated 1 C/O / 16A
110÷265V AC <20mA
Σ5mA
0.1÷0.2sec
green LED
red LED
0,15W
0,6W
-25÷50°C
2
2,5mm screw terminals
0.4 Nm
1 module (18mm)
on the TH-35 rail
IP20
control impulse: L
L
N
1
3
6
12
11
FUNCTIONING
The receiver is actuated by means of a current pulse triggered by
pushing any bell push connected to the relay. The receiver is
deactivated by another pulse or after a preset time. The relay does
not "memorize" the position of the relay contact, i.e. in case of
supply voltage decay and the subsequent return of supply voltage,
the relay contact will be set in the off position. Such a solution
prevents the automatic actuation of the receivers controlled that
might occur without proper supervision after a long-lasting decay
of supply voltage.
Relay version "i" is to pin adapted to cooperate with the receivers
with high starting current, such as LED fluorescent lamps,
ESL fluorescent lamps, electronic transformers, discharge
lamps, etc.
ASSEMBLY
1. Turn OFF the power.
2. Put on the relay on the rail in the switchgear box.
3. Connect the power cable to contacts 1-3 with accordance
choosen control option the relay (control impulse L or N).
4. The timers switching which are connect in parallel connect to
contact 6 and to cable which is connect to contact 3.
5. The activated receiver connect in series to contacts 11-12.
6. By screwdriver set to switching OFF delay.
ATTENTION!
The BIS-411 230V is compatible with bell
pushes equipped with fluorescent lamps
(ΣI<5mA).
- 2 -

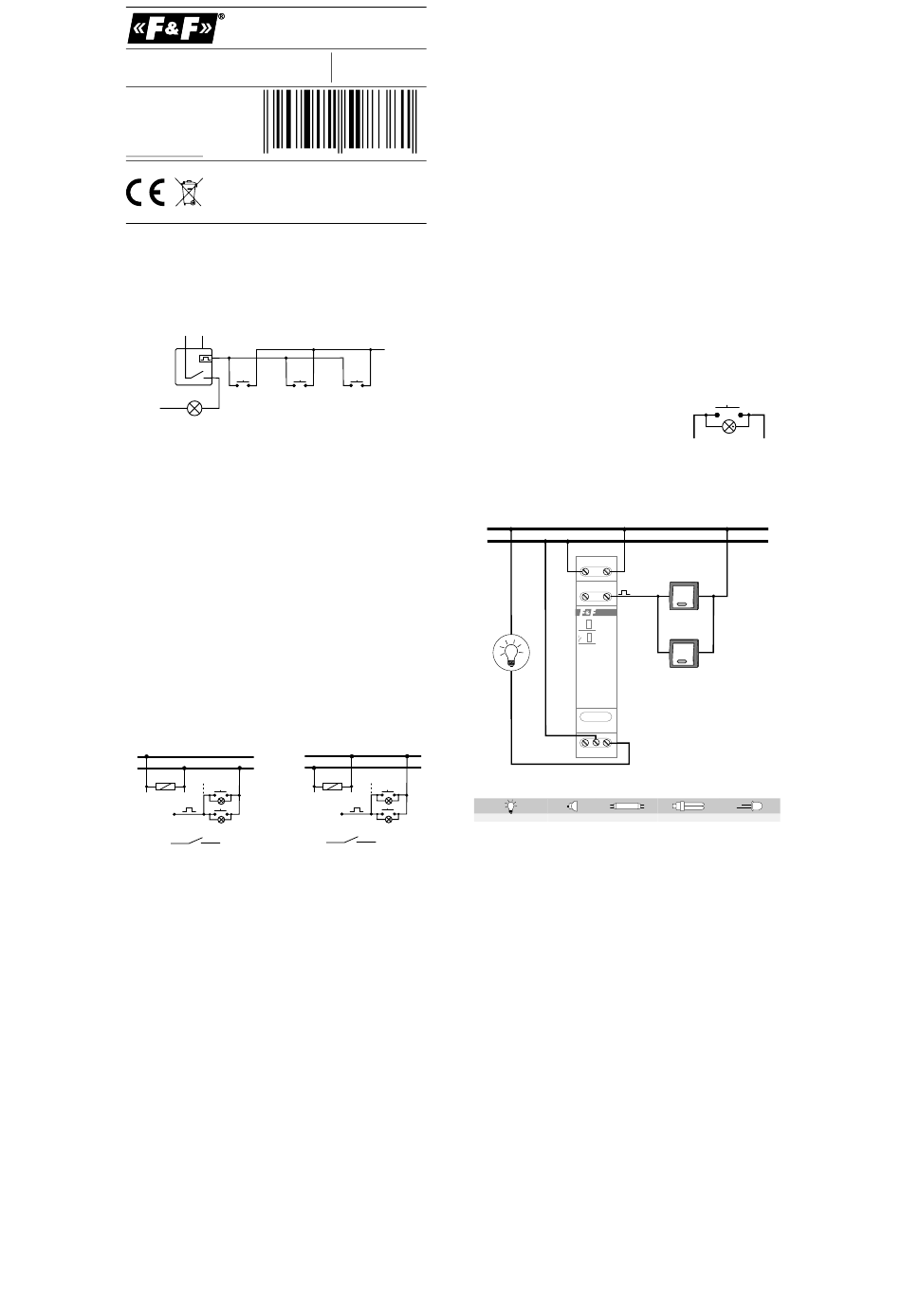

Example of relay connection with N control pulse
N
L
1 2 3
4 6
5
U
BIS-411
7 8 9
10 11 12
Table of power
incandescent halogen fluorescent
1250W
2000W 1000W
The above data are indicative and will heavily depend on the
design of a specific receiver (that is especially important for LED
bulbs, energy-saving lamps, electronic transformers and pulse
power supply units), switching frequency and operating
conditions.
For more information visit www.fif.com.pl
- 4 -
D150203/150520
energy-saving LED
500W 250W
