6. Construction

No. Description
1 BRAKE BODY
2 BODY CAP
3 COLLAR
4 HOLDER
5 BRAKE METAL
6 PISTON A
7 ROLLER HOLDER
8 ROLLER PLATE
9 NEEDLE ROLLER
10 PISTON SPRING
11 ROLLER SPRING
12 BUSHING
13
HEXAGON SOCKET CAP BOLT
14 HEXAGON SOCKET CAP BOLT
15 WEAR RING A
16 PISTON SEAL A
17 ROD SEAL A
18 GASKET
19 ELEMENT
20 RELEASE BOLT
21 SEAL WASHER
22
HEXAGON SOCKET CAP BOLT
Qty Note No. Description
1 23 ROD COVER
1 24 HEAD COVER
1 25 CYLINDER TUBE
1 26 PISTON ROD
1 27 PISTON B
1 28 CUSHION RING
1 29 CUSHION RING B
2 30 CUSHION VALVE
2 31
CUSHION SEAL HOLDER
1 32 TIE ROD
1 33 TIE ROD NUT
1 34 FLAT WASHER
4 35 BUMPER A
2 36 BUMPER B
2 37 WEAR RING B
1 38 ROD END NUT
1 39 MAGNET
1 40 ROD SEAL B
1 41 PISTON SEAL B
1 42 CUSHION SEAL A
1 43 CUSHION SEAL B
4 44 CUSHION VALVE SEAL
45 CYLINER TUBE GASKET
Qty Note
1
1
1
1
1
1
1
2
1
4
8
In case of φ80,100
(8)
1
1
1
1
(1) In case of C96ND*
1
1
1
1
2
2

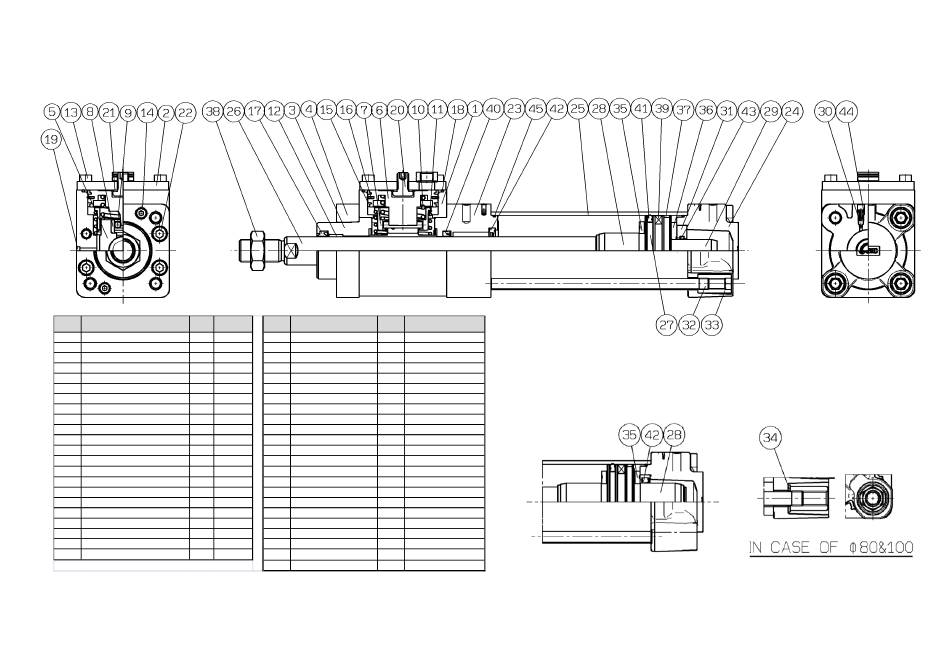

Fig. 23 Construction
