< Applicable Auto switches >
Solid state switch ········ D-Y59A/B・Y69A/B・Y7P(V)
Reed switch ·············· D-Z73・Z76・Z80

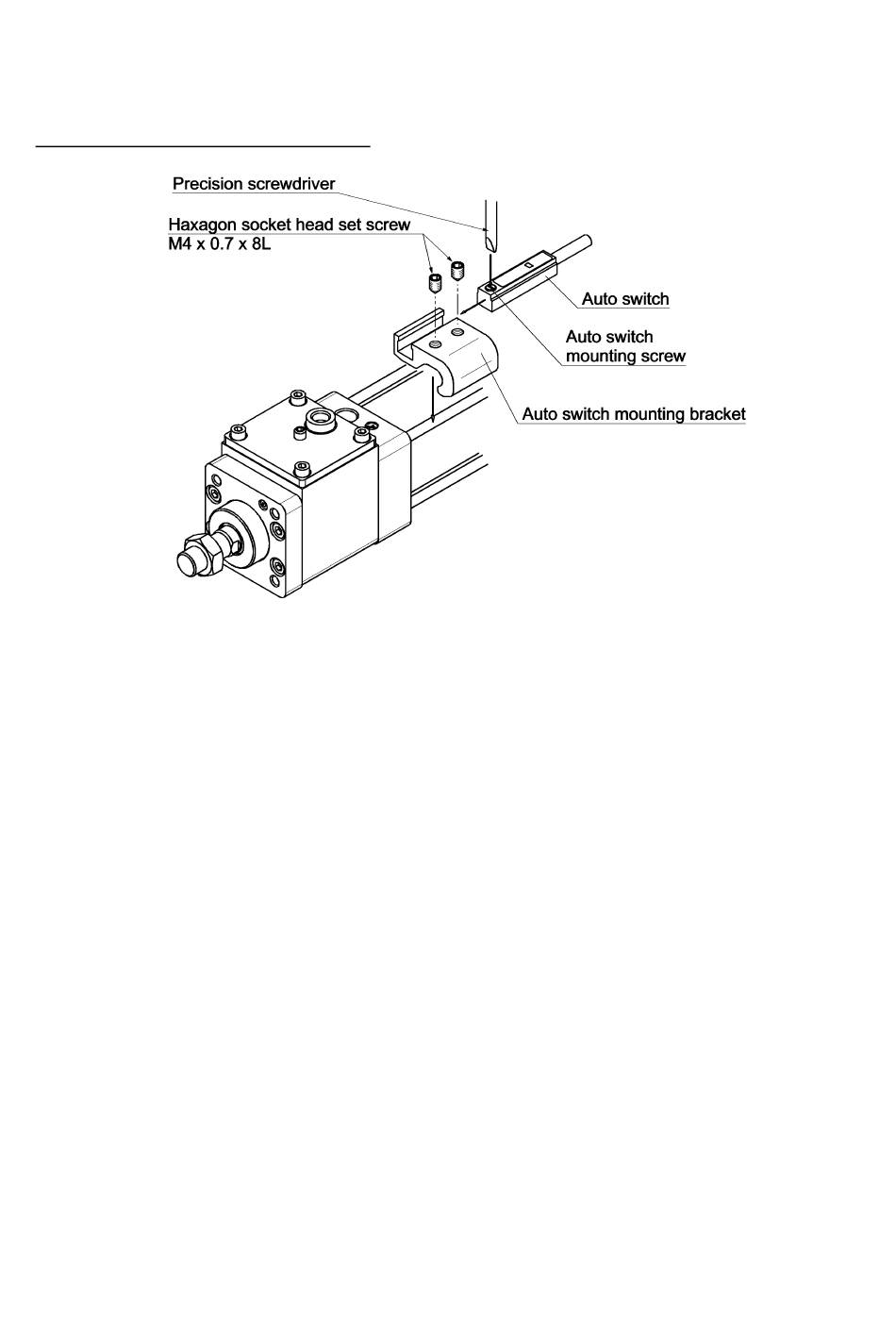

How to mount and move the auto switch
① Attach the auto switch mounting bracket to the cylinder tie rod so that the bottom surface of the auto switch
mounting bracket contacts the cylinder tube. Then, fix the auto switch mounting bracket at the detection
position using the set screws. (Use hexagon wrench)
② Insert the auto switch to the auto switch mounting groove of the bracket to set the bracket to the approximate
position for the switch.
③ After checking the detecting position, tighten the mounting screw (M2.5) to fix the auto switch.
④ The detection position can be changed under the conditions in step ②.
Note 1) To protect the auto switch, mount the auto switch with the switch body mounted entirely in the auto
switch mounting groove for more than 15mm.
Note 2) When tightening the auto switch mounting screw, use a precision screwdriver with a handle of 5 to 6 mm
in diameter. Use the tightening torque of approximately 0.05 to 0.1 Nm. As a guideline, turn 90
position where the mounting screw starts to become tight. Tightening torque of the hexagon socket head
set screw (M4 x 0.7) shall be 1 to 1.2Nm.
D-Y7NW(V)・Y7PW(V)・Y7BW(V)
D-Y7BAL
Fig. 10
