4-4-2. Removal of seals

1) Rod seal and cushion seal
Insert a precision screwdriver from the front of the cover to pull out the seal as shown in Fig. 16.
C a u t i o n
Take caution not to damage the seal groove of the cover at this time.
2) Piston seal
Wipe off grease around piston seal first to make seal removal easier.
As shown in Fig. 17, hold the piston seal with one hand and push it into the groove so that the piston
seal can be lifted off and pulled out without using a precision screwdriver.
The groove of the piston is deep, so if the piston seal is removed with a precision screwdriver, it might
be damaged.
3) Tube gasket
Take out with the precision screwdriver.

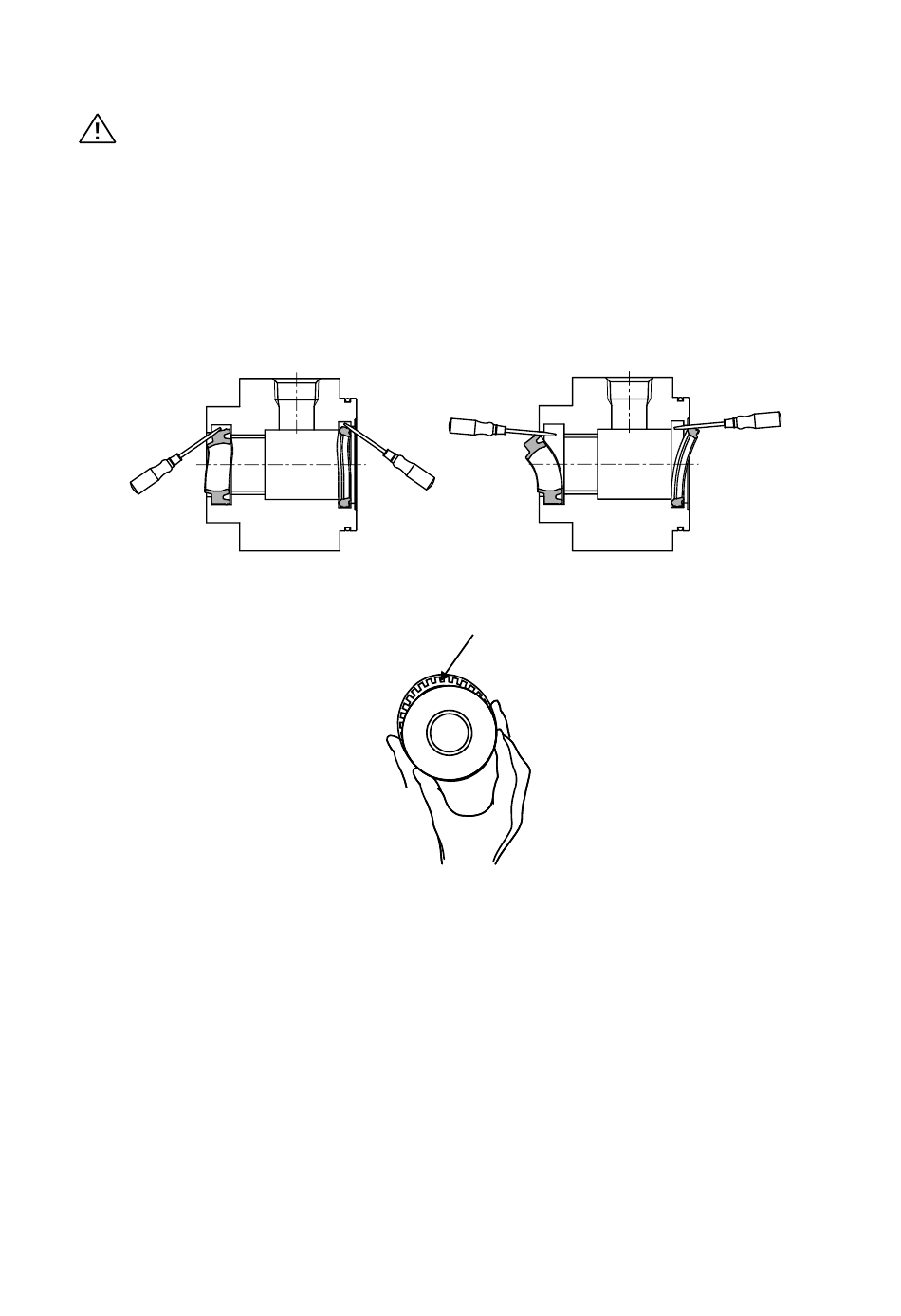

Fig. 16 Removal of rod seal and cushion seal
Fig 17 How to remove piston seal
- 36 -
Squeeze the seal from the external circumference
to lift one part of the seal, and remove it.
