- Page 1 MANUAL ENGLISH Studio Beam 575 Ordercode: 30657/30658 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Studio Beam 575 Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains ............................5 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Optional accessories ..............................7 Overview .................................. -
Page 3: Warning
Your shipment includes: ● Showtec Studio Beam 575 with 0,9m power cable ● 1x Filter frame ● 4 lenses: VNSP/NSP/MFL/WFL ●... - Page 4 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Studio Beam 575 Operating Determinations ● This device is not designed for permanent operation. Regular operation breaks will ensure that the device will serve you for a long time without defects. ● The minimum distance between light-output and the illuminated surface must be bigger than 0,5 meter. -
Page 6: Connection With The Mains
Studio Beam 575 Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power plug. Always check if the right color cable is connected to the right place. -
Page 7: Return Procedure
Studio Beam 575 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 8: Description Of The Device

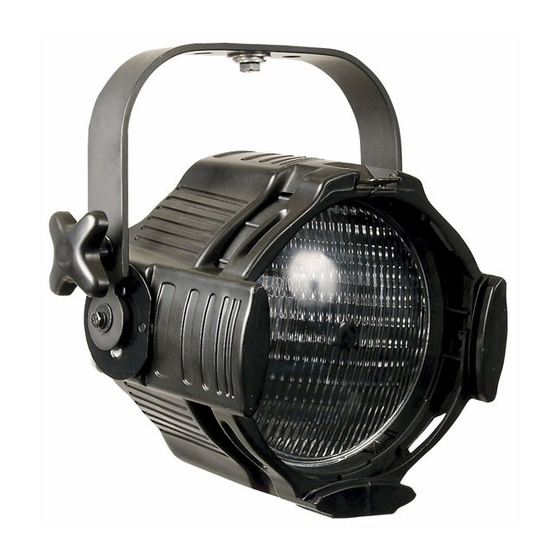

Studio Beam 575 Description of the device Features The Showtec Studio Beam 575 is a parcan with high output and great effects. • Lamp: HPL-575 • Lamp socket: G9,5 • Capacity: max 600W • Input voltage: 230V, 50Hz • Power cable 0,9m •... -
Page 9: Lamp Housing
Fig. 03 06) Safety Eye Installation Remove all packing materials from the Studio Beam 575. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Installing The Lamp
Damages caused by non-observance are not subject to warranty. Procedure: 01) Disconnect the Studio Beam 575 from power before installing the lamp. 02) Loosen the knurled bolt and remove the lamp housing (Fig.04). 03) Remove the lamp from the box and hold it by the base. Read lamp instructions. Do not touch the lamp bulb glass. -
Page 11: Set Up And Operation
Studio Beam 575 Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. -
Page 12: Changing The Lens
Studio Beam 575 Changing the lens 01) Place the fixture with the front facing you. Tilt the fixture slightly. 02) Position the rotation ring with the spring at the top of the fixture, below the retaining clip. 03) Hold the lens by the edge, so that the convex side faces the back side of the device (Fig.09). -
Page 13: Changing The Lamp
03) If all of the above appears to be O.K., plug the unit in again. 04) If you are unable to determine the cause of the problem, do not modify the Studio Beam 575, as this may damage the unit and the warranty will become void. -
Page 14: Product Specifications
Studio Beam 575 Product Specifications Model: Showtec Studio Beam 575 Input voltage: 230V, 50Hz Capacity: max 600W Lamp socket: G9,5 Housing: Metal & flame retardant plastic Reflector: aluminum IP rating: IP20 Power cable 0,9m Filter frame: Included Included 4 lenses:... -
Page 15: Dimensions
Studio Beam 575 Dimensions Ordercode: 30657/30658... - Page 16 ©2016 Showtec...
