- Page 1 MANUAL ENGLISH Sunstrip II Stageblinder Ordercode: 30659 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Sunstrip II Stageblinder Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Connection with the mains............................5 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Optional accessories..............................6 Overview .................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec Sunstrip II Stageblinder with a Schuko power cable (1,25m) 2 brackets incl. screws ... - Page 4 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Sunstrip II Stageblinder Operating Determinations • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The minimum distance between light output and the illuminated surface must be bigger than 1 meter. -
Page 6: Connection With The Mains
Sunstrip II Stageblinder Connection with the mains Connect the device to the mains with the power-plug. Always check if the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER PHASE BLUE BLACK SILVER NEUTRAL... -
Page 7: Description Of The Device

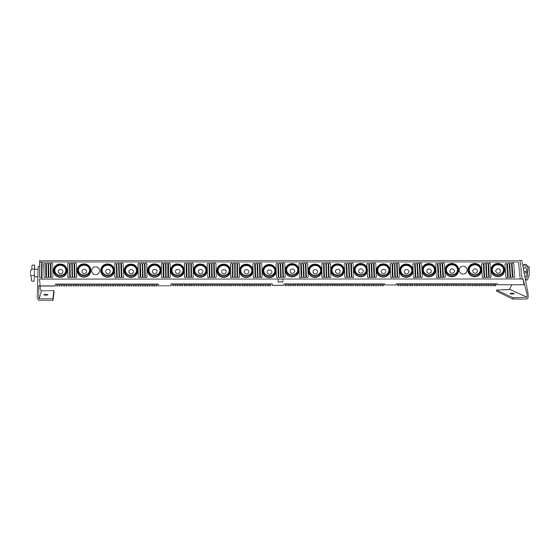

Sunstrip II Stageblinder Description of the device Features The Sunstrip II Stageblinder is the bigger brother of the Sunstrip 1, a 700 Watt blinder for 20 x MR-11 12V- 35W lamps (2000 hours). Two side-pipes for assembly and 2 floorstands are included. ... -
Page 8: Installation
Damages caused by non-observance are not subject to warranty. Installing the Lamp The Showtec Sunstrip II Stageblinder uses the GU4 (ordercode 80977/80978) as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information. -
Page 9: Maintenance
04) If you are unable to determine the cause of the problem, do not open the Sunstrip II Stageblinder, as this may damage the unit and the warranty will become void. 05) Return the device to your Showtec dealer. Problem... -
Page 10: Product Specifications
Sunstrip II Stageblinder Product Specifications Model: Showtec Sunstrip II Stageblinder Input Voltage: 240V Power consumption: 700W Protection rate: IP-20 Dimensions without pipes/brackets: 1260 x 59 x 55 mm (LxWxH) Dimensions with pipes: 1390 x 59 x 55 mm (LxWxH) Dimensions with brackets:... -
Page 11: Dimensions
Sunstrip II Stageblinder Dimensions Side Ordercode: 30659... - Page 12 ©2017 Showtec...
