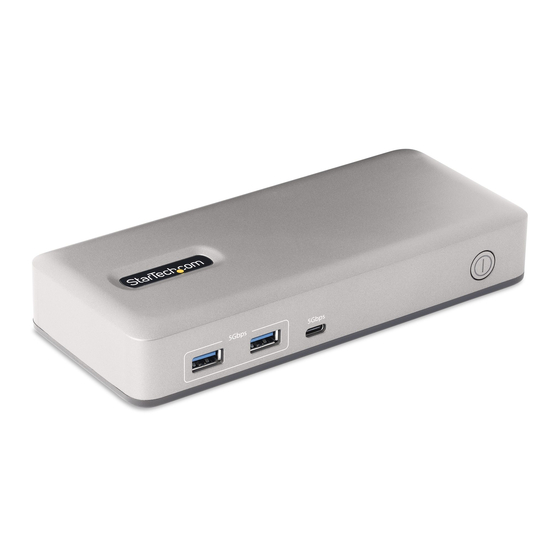

StarTech.com 101N-USBC-DOCK Quick Start Manual

USB-C Dual Monitor Dock - DP & HDMI or VGA - 6x USB-A / 1 x USB-C - 85W PD

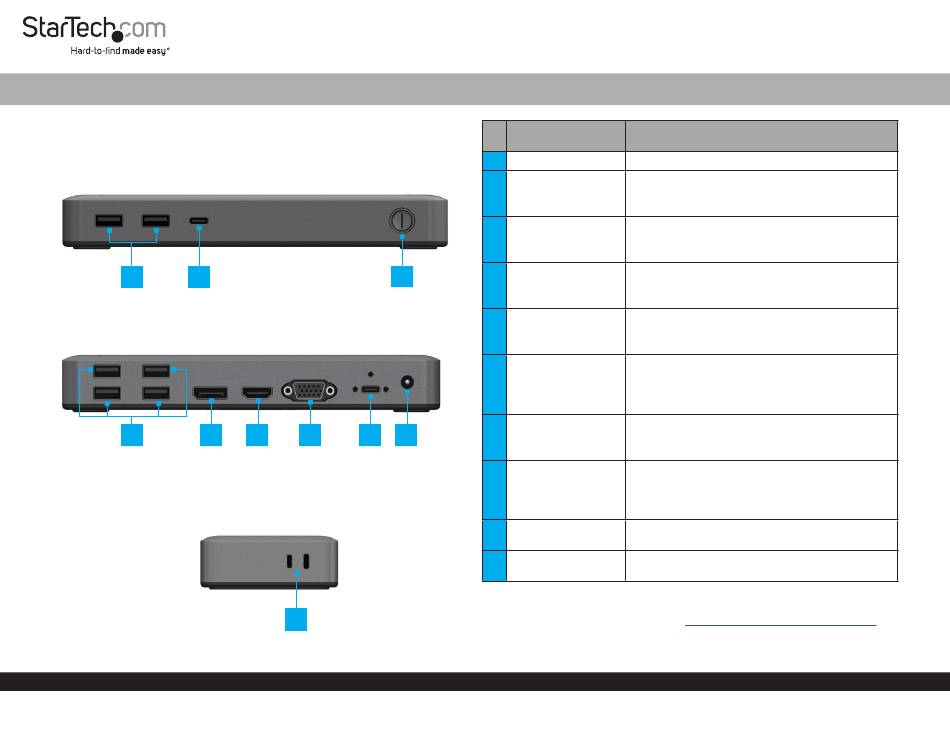

Product Diagrams (101N-USBC-DOCK)
Diagram 1
3 2
Diagram 2
5
4
Diagram 3
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
1
6 7 8 9
10
Port/LED/Connector
1
Power Button • Press Power Button to Power the Dock On and Off
• Connect USB-C Peripherals
2 USB-C Data Port • USB 3.2 Gen 1 (5Gbps)
• Supports up to 10W (5V / 2A) of power
• Connect USB-A Peripherals
3 USB-A Data Ports • USB 3.2 Gen 1 (5Gbps)
• Supports up to 4.5W (5V / 0.9A) of power
• Connect USB-A Peripherals
4 USB-A Data Ports • USB 2.0 (480Mbps)
• Supports up to 2.5W (5V / 0.5A) of power
• Connect a DisplayPort Display Device
DisplayPort Output
5 • Up to 4K (4096x2160) 60Hz
Port
• Via DisplayPort 1.4 DP Alt Mode
• Connect an HDMI Display Device
• HDMI 2.0b HDR
6 HDMI Output Port
• Up to 4K (4096x2160) 60Hz
• Via DisplayPort 1.4 DP Alt Mode
• Connect a VGA Display Device
7 VGA Output Port • Up to 1080p (1920x1200/1920x1080) 60Hz
• Via DisplayPort 1.4 DP Alt Mode
• Connect to a USB-C Port on a Host Computer
• USB 3.2 Gen 1 (5Gbps)
USB-C Host Port
8
(Screw Locking)
• DP Alt Mode Enabled
• Power Delivery 3.0 Specification
• Connect the Dock to a Power Source, using the
9
DC 20V Port
Universal Power Adapter
Lock Slots • Connect a K-Slot Style Locking Device to deter the
10
(Standard & Nano) theft of the Docking Station

Requirements

For the latest requirements, please visit
• Host Computer with DP Alt Mode Enabled USB-C Port
Quick-Start Guide
Function
www.StarTech.com/101N-USBC-DOCK
Manual Revision: July 6, 2023
