StarTech.com 155NA-USB4-DOCK Quick Start Manual

USB4 Docking Station - Dual 4K 60Hz HDMI, 6-Port USB Hub, 2.5GbE, 100W PD
Product ID
155NA-USB4-DOCK / 155UE-USB4-DOCK

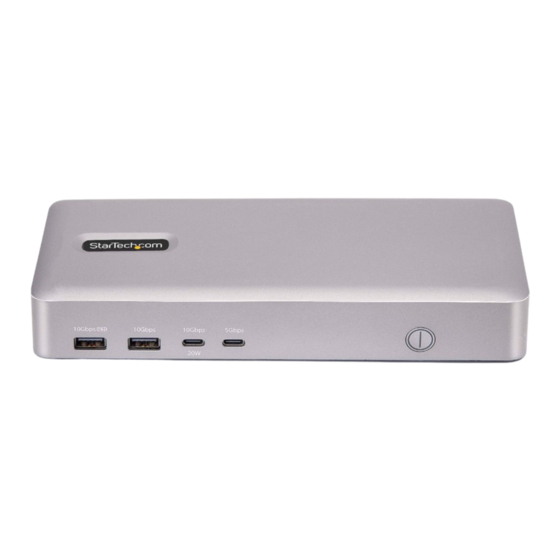

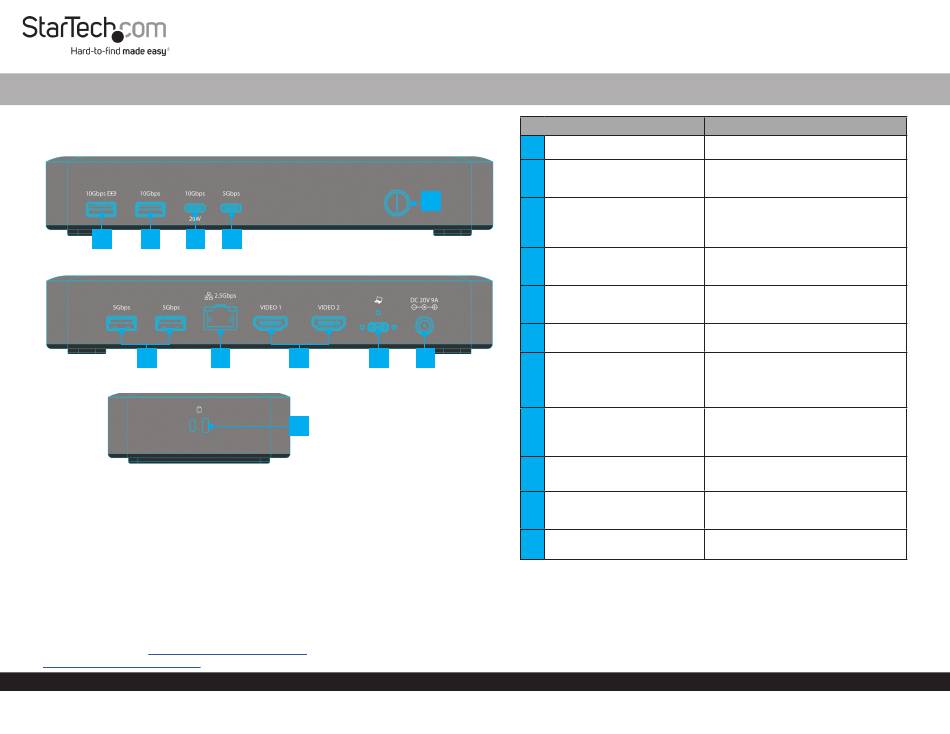

Product Diagram (Side A)
5 4 3
(Side B)
10
(Side C)
Requirements
Computer
•
USB4 Port
•
USB-C Port with DP Alt Mode
•
This Dock can function with either a USB4 or USB-C host port. For
•
maximum performance a USB4 port is recommended. Video support
and performance, such as resolution, and refresh rate depend on the
host computer's video controller. Please verify the specifications of the
host computer.
For the latest drivers, manuals, product information, technical specifications, and declarations of
conformance, please visit: www.StarTech.com/155NA-USB4-DOCK
www.StarTech.com/155UE-USB4-DOCK
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
2
9 8 7
11
or
Component
1 Power Button
2 USB-C Data Port
1
3 USB-C Data/Power Port
4 USB-A Data Port
5 USB-A Data/Charge Port
6 DC 20V Port
6
USB4 Host Port
7
(Screw-Locking, USB Type-C)
8
2x HDMI Video Ports
9
2.5 Gigabit Ethernet Port
10
2x USB-A Data Ports
2x Lock Slots
11
(Standard & Nano)
Package Contents
• USB-C Docking Station x 1
• 3 ft (1 m) USB4 Host Cable x 1
• Universal Power Adapter x 1
• Quick-Start Guide x 1
Quick-Start Guide
Function
• Press and Release to Toggle Power for the
Dock
• Connect a USB-C Peripheral
• USB 3.2 Gen 1 (5Gbps)
• Supports up to 7.5W(5V/1.5A) of Power
• Connect a USB-C Peripheral
• USB 3.2 Gen 2 (10 Gbps)
• Power Delivery 3.0
• Connect a USB-A Peripheral
• USB 3.2 Gen 2 (10 Gbps)
• Supports up to 4.5W (5V/0.5A) of Power
• Connect and/or Charge a USB-A Peripheral
• USB 3.2 Gen 2 (10 Gbps)
• Supports 7.5W BC 1.2 Charging (5V/1.5A)
• Connect the Dock to a Power Source, using
the Universal Power Adapter
• Connect to a USB-C Port on a Host Computer
• USB4 (40 Gbps)
• Power Delivery 3.0 Specification
• Capability of charging the Host Computer
up to 100W
• Connect HDMI Displays
• HDMI 2.1
• Up to 8K (7680x4320) 60Hz
• Via DisplayPort 1.4 Alt Mode
• Connect the Dock to a Network Device,
using a Network Cable
• 2.5GBASE-T
• Connect USB-A Peripherals
• USB 3.2 Gen 1 (5 Gbps)
• Supports up to 4.5W (5V/0.9A) of Power
• Connect a K-Slot Style Locking Device to
deter the theft of the Docking Station
Manual Revision: June 1, 2023 1:18 PM
